Portkeys LH7H - 7-inch High Brightness Touchscreen Monitor (White)

The Portkeys LH7H-W is a 7-inch high-brightness touchscreen monitor designed for on-camera use, offering a 1920 x 1080 resolution, 1000 cd/m² brightness, and HDMI input/output supporting up to DCI 4K24 or UHD 4K30. It includes pro monitoring tools such as waveform, peaking, histogram, and 3D LUT support, making it suitable for daylight shooting and accurate image evaluation.

Display and Visibility

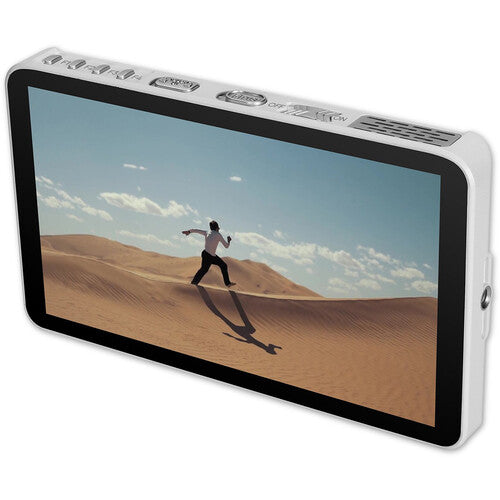

The 7-inch LCD panel delivers sharp Full HD visuals with a 1000:1 contrast ratio and 1000 cd/m² brightness, ensuring clear viewing in outdoor or bright conditions. The white enclosure reduces heat absorption in direct sunlight.

Connectivity and Video Support

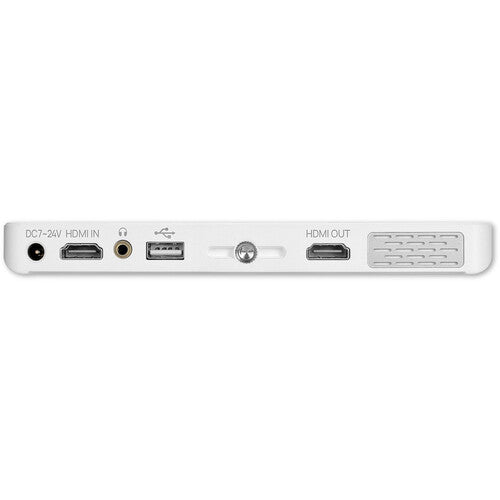

Features HDMI input and output for DCI 4K24 and UHD 4K30 signals, enabling pass-through monitoring without quality loss. Includes anamorphic correction, vertical shooting stretch, and cropping functions.

Power Options

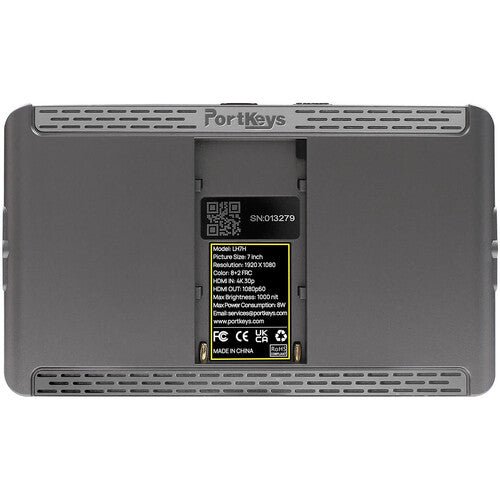

Powered by a built-in Sony L-series battery plate or via optional DC input. Can supply power to a connected camera using a compatible dummy battery through the DC output.

Professional Monitoring Tools

Supports 3D LUT loading for on-set colour management. Additional tools include waveform, histogram, peaking, and adjustable colour temperature, enabling precise exposure and focus control.
