Blackmagic Design DeckLink Mini Recorder 4K

Name: Blackmagic Design DeckLink Mini Recorder 4K
Brand: Blackmagic Design
SKU: BLA-BDLKMINIREC4K
Price: 299.00 AUD
Availability: InStock

Blackmagic Design | 库存单位： BLA-BDLKMINIREC4K | UPC： 9338716004366

$299.00 ~~$325.00~~

含税结账时计算运费。

送货选项

Shipping Methods & Estimated Delivery Times

Australia Post Express Shipping – 1–2 business days within the same state, 1–3 business days interstate.
Australia Post Regular Shipping – 2–4 business days within the same state, 3–6 business days interstate.
StarTrack Express – 2–7 business days, depending on location.
StarTrack Premium – Next business day between capital cities and major metro areas.
Local On-Demand Delivery (Small Orders Only) – Same-day delivery within Melbourne & Sydney metro areas using Uber and Yello.

Shipping Cut-Off Time: Orders placed before 2 PM will typically be processed and dispatched the same day.

Please note: **We ship orders as a single shipment. If your order contains items with different availability, your order will be held until all items are ready to be shipped together.** Keep this in mind when placing your order. If this is an issue, please contact us at websales@videocraft.com.au to arrange for alternative shipping options.

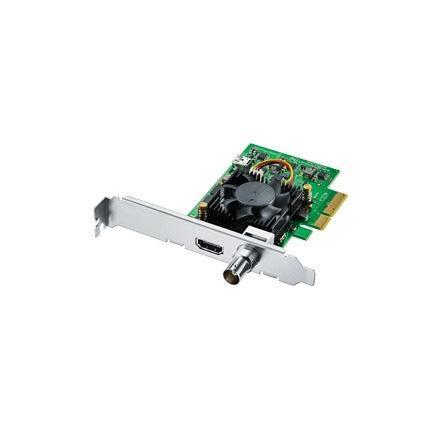

Blackmagic Design DeckLink Mini Recorder 4K是一款低调的PCIe 采集卡，配备 6G-SDI 和最新的 HDMI 2.0a 连接，因此您可以在计算机上录制高达 2160p30 的所有格式！SDI 和 HDMI 输入会自动检测并在所有视频格式之间切换。您甚至可以通过 HDMI 获得高动态范围录制和元数据，以及对 Rec. 2020 色彩空间的支持。DeckLink Mini Recorder 4K 非常适合集成到移动实时采集环境、广播车等中！您甚至可以使用适用于 Mac OS X、Windows 和 Linux 的 Blackmagic Desktop Video SDK 开发自己的自定义采集解决方案！包括两个 PCIe 屏蔽，用于全高和低调插槽。

Specifications

SDI Video Input

1 x 10-bit SD/HD/Ultra HD switchable

SDI Audio Input

16 channels embedded in SD, HD, Ultra HD.

HDMI Video Input

1 x HDMI 2.0a connector.

HDMI Audio Input

8 Channels embedded in SD, HD, Ultra HD.

Computer Interface

Gen 2 PCIe Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots.

Codecs

Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.

Software

Software Included

Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X and Windows.

Internal Software Upgrade

Firmware built into software driver. Loaded at system start or via updater software.

Physical Installation

PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS X, Windows and Linux. Mac OS X systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.

oftware Applications

DaVinci Resolve

Fusion

Premiere Pro CC

Avid Media Composer

After Effects CC

Avid Pro Tools

Steinberg Cubase

Steinberg Nuendo

Photoshop CC

Media Express

Other supported applications include: Nuke, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.

Video Standards

SD Format Support

525i59.94 NTSC, 625i50 PAL

HD Format Support

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

Ultra HD Format Support

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K DCI Format Support

4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

SDI Compliance

SMPTE 259M and 292M.

SDI Metadata Support

VITC read for 3:2 pulldown removal. VANC capture using up to 3 lines of video in file. HD RP188 and closed captioning.

Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

Video Sampling

4:2:2

Color Precision

10-bit

Color Space

REC 601, REC 709, REC 2020

HDMI Configuration

HDMI automatically configures to connected display.

HDMI Resolution

Pixel for pixel HD resolution input to connected device.

HDMI Color Precision

10-bit

Multiple Rate support

SDI and HDMI are switchable between standard definitlon and high definition.

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Processing

Colorspace Conversion

Hardware based real time.

HD Up Conversion

Software based up conversion during video capture.

Operating Systems

Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.

Windows 7, 8.1 and 10, all 64-bit.

Linux

Environmental Specifications

Operating Temperature

5° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing
