Atomos UltraSync ONE RF Timecode Sync for AtomX Sync and Ninja V

SKU: ATO-ATOMSYON01-ROW

Main Features:

  • Sync Frame-Accurate Timecode via RF
  • Provides BNC Genlock, LTC, Word Clock
  • Standalone, Master, or Slave Modes
  • Syncs with AtomX SYNC and Ninja V via RF

Version: AtomX Sync | Sync Blue Bundle | Blue ROW | One ROW




(0) No Reviews yet
$439.00
RRP:  $468.00
Out of Stock - Order In
Select store to check availability.

Details

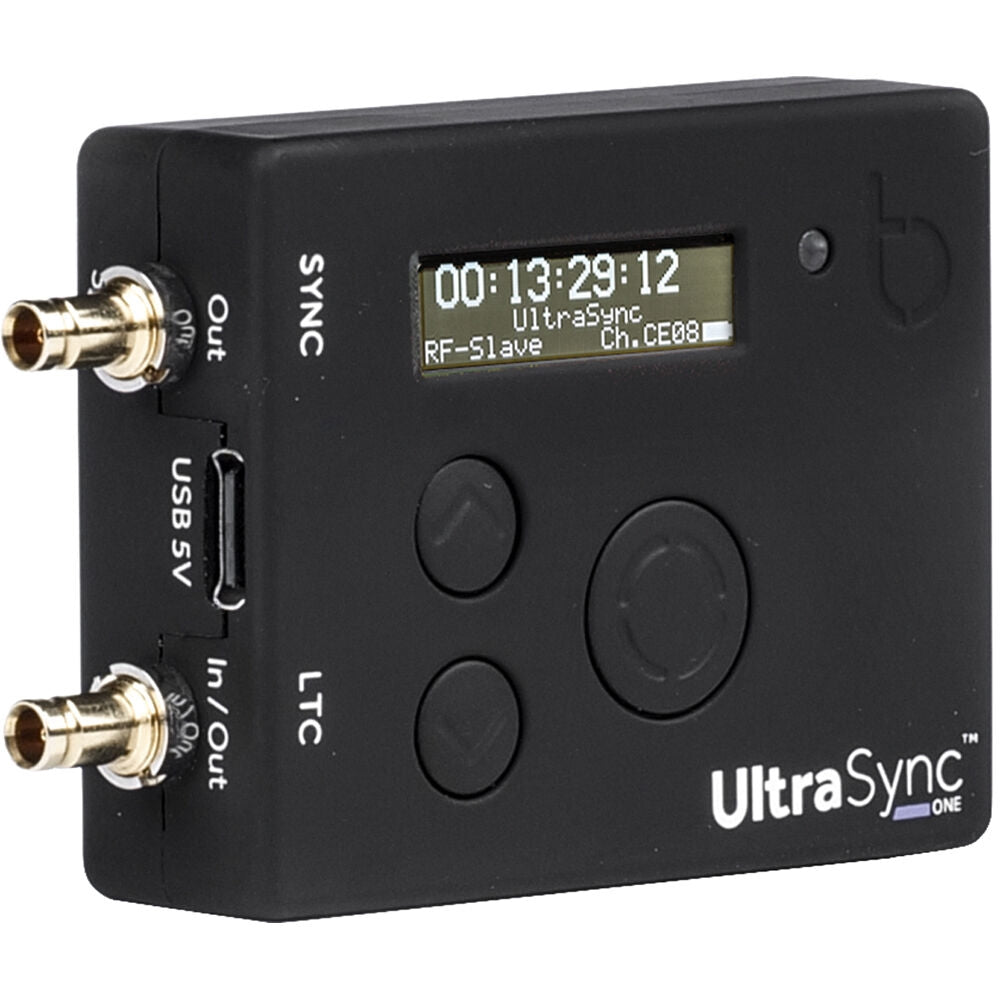

The Atomos UltraSync ONE RF Timecode Sync for AtomX Sync and Ninja V allows you to sync the timecode using genlock, LTC, or word clock between your cameras, audio recorders, smartphones, and other supported devices.The UltraSync ONE is a compact unit that provides timecode sync and can pair each source via RF signals with the Atomos AtomX SYNC for viewing on the Ninja V monitor. It features a bright OLED display for timecode and status information. The UltraSync ONE features one SYNC BNC output that supports genlock to any supported camera, provides word clock signals to a sound recorder or mixer, and can provide LTC (linear timecode) to a supported LTC device. The BNC LTC port provides input and output of LTC only. The ONE can also be used as a master or slave, or in standalone mode. It can sync frame-accurate timecode using RF signals by pairing with multiple timecode sync devices such as the AtomX SYNC, UltraSync BLUE, or other RF timecode sync devices over a long range of up to 656'. Once the ONE is synced with the device, timecode is embedded in the recorded files and can be recognized by industry-standard software and NLEs (nonlinear editors).

Specifications

Display TypeOLED
Display Resolution128 x 32
TimecodeFree Run: TCX0 0.5 ppm
Approximately 1 Frame Drift in 24 Hours
0 ppm Drift when RF Locked to Master

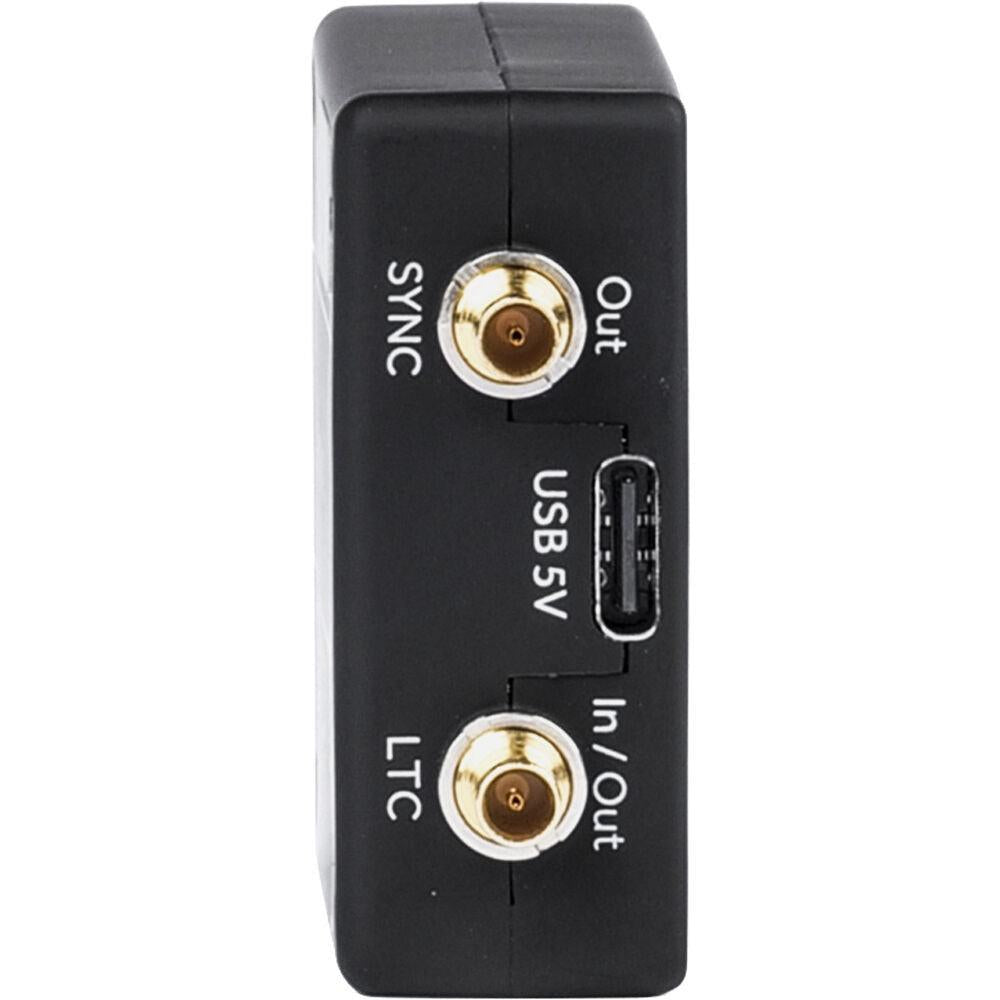

Output Connector1 x BNC SYNC (Genlock, LTC, Word Clock)
Input/Output Connectors1 x BNC LTC
Supported Frame Rates23.98
24
25
30D (Drop Frame)
30
29.97D (Drop Frame)
29.97
Battery TypeBuilt-In Lithium-Ion Polymer (LiPo)
Battery Capacity3.7 V, 800 mAh, 2.96 Wh
Battery Charge Time3 Hours
Input Voltage5 VDC
Battery Run Time24 Hours
RF RangeUp to 656' / 200 m
Frequency Range865.050 to 923.200 MHz
Power Connector1 x USB Type-C
Dimensions2.2 x 1.7 x 0.7" / 55 x 44 x 17 mm

What's In The Box

Atomos UltraSync ONE RF Timecode Sync for AtomX Sync and Ninja V
