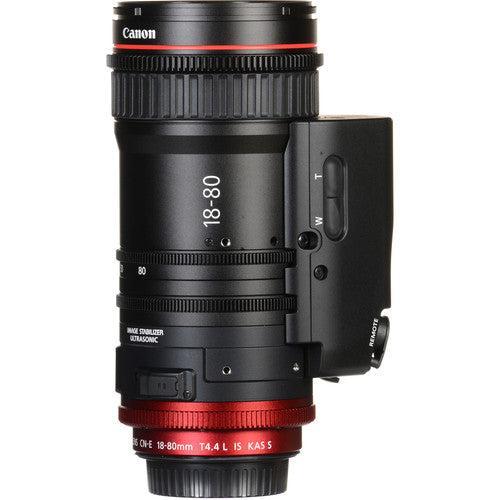

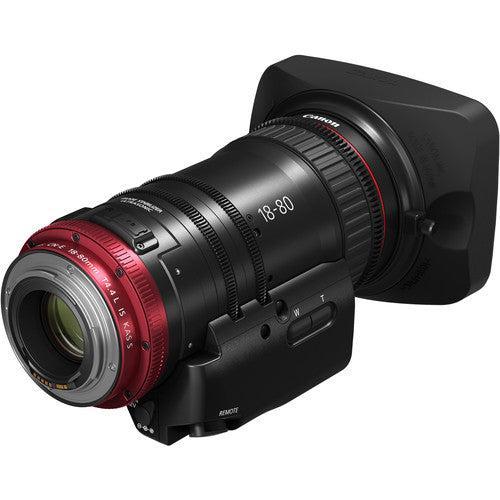

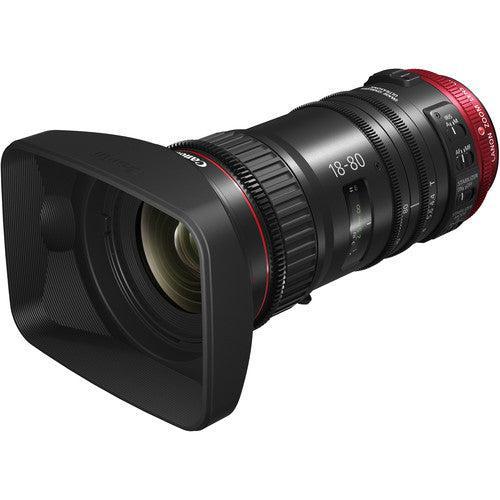

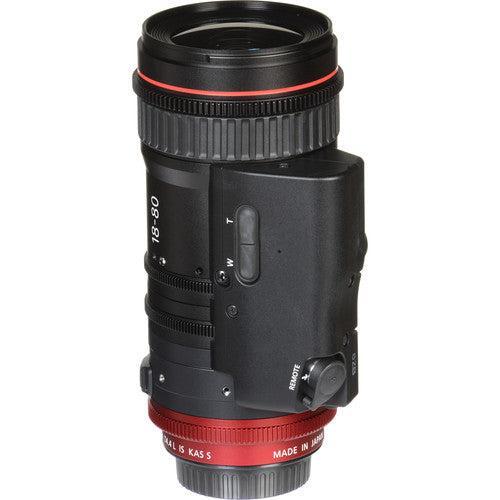

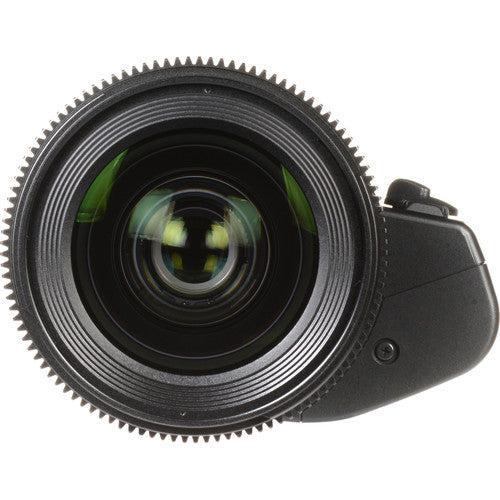

Canon E18-80mm Compact Servo T4.4 Cinema Zoom Lens
Main Features:
- Covers Super 35 & APS-C Formats
- EF Mount
- T4.4 Constant Maximum Aperture
- 9-Blade Iris
- Parfocal with Minimized Focus Breathing
- Compatible with Servo Lens Controllers
- Optional Control Grip
- Image Stabilization & Auto Focus Support
- 180° Rotation for Focus
- Lightweight at only 1.2kg
Details
The Canon CN-E 18-80mm T4.4 COMPACT-SERVO Lens is designed for use with EF-mount cameras featuring Super 35 or APS-C sized sensors. The lens covers an incredibly useful 18 to 80mm focal range while maintaining a constant T-stop of T4.4 (f/4) throughout. Measuring 7.2" long and weighing only 2.65 lb, the lens presents itself as a compact, lightweight option suitable for a variety of productions, from narrative work to run-and-gun documentaries. Notably, the lens is Canon's first cine-style option to incorporate image stabilization and auto focus functionality when paired with Cinema EOS cameras.
Further enhancing the versatility of this lens, Canon has equipped it with a servo drive unit compatible with industry-standard lens controllers, including Canon's broadcast ZSD-300D and FPD-400D, for full zoom, focus, and iris control. Alternatively, you can outfit the lens with the optional ZSG-C10 Control Grip for ENG-style lens control and operation. Power is provided to the grip from compatible cameras via the EF mount. For non-servo zoom control, the lens features cine-standard 0.8 mod gears, as well as a rubberized grip on the focus ring enabling comfortable manual operation.
Features:
Lens Design
- Covers Super 35 / APS-C formats
- 18 to 80mm focal range (4.4x zoom ratio)
- Constant T4.4 (f/4) aperture
- Parfocal design to maintain focus during zoom
- Minimized focus breathing
- Cine-standard 0.8 MOD focus gear ring
- 0.5 MOD iris and zoom gear rings
- Focus ring rotates 180°
- Matching color characteristics to existing CN-E lenses
- 9-blade iris
- Iris closing
- Compact and lightweight design
- Servo Control
- Servo Control Capability for all zoom, focus and iris
- Power provided via camera mount (from compatible cameras)
- Compatible with broadcast-style servo lens controllers, such as Canon ZSD-300D and FPD-400D
- Optional ZSG-C10 Grip for ENG-style control and shoulder mount applications
- Functionality with Cinema EOS Cameras
- Auto focus function (Continuous AF, One-Shot AF, Focus Guide)
- Image Stabilization
- Remote control of zoom, focus and iris via camera
- REC start/stop from ZSG-C10 Grip
- Peripheral illumination correction
- Chromatic aberration correction
- Lens metadata record
- T-stop/F-stop number display select
Specifications
| Mount Type | EF |
| Focal Length | 18 to 80 mm |
| Zoom Ratio | 4.4x |
| Image Circle | 31.4 mm |
| Coverage | Super 35 / APS-C |
| Maximum Relative Aperture | T4.4 (f/4) |
| Number of Aperture Blades | 9 |
| Angle of View | 24.6 x 13.8mm Imaging Area (1.78:1 Aspect Ratio): 68.7° x 41.9° at 18mm 17.5° x 9.9° at 80mm 26.2 x 13.8mm Imaging Area (1.9:1 Aspect Ratio): 72.1° x 41.9° at 18 mm 18.6° x 9.9° at 80 mm |
| Minimum Object Distance | 1.7' (0.5 m) |
| Object Dimensions at M.O.D. | 24.6 x 13.8mm Imaging Area (1.78:1 Aspect Ratio): 17.1 x 9.6" (43.4 x 24.3 cm) at 18mm 3.7 x 2.1" (9.5 x 5.3 cm) at 80mm 26.2 x 13.8mm Imaging Area (1.9:1 Aspect Ratio): 18.2 x 9.6" (46.2 x 24.3 cm) at 18 mm 4.0 x 2.1" (10.1 x 5.3 cm) at 80 mm |
| Front Lens Diameter | 84 mm |
| Filter Thread | 77 mm |
| Dimensions | 3.7 x 4.2 x 7.2" (9.34 x 10.72 x 18.23 cm) |
| Weight | 2.65 lb (1.2 kg) |
