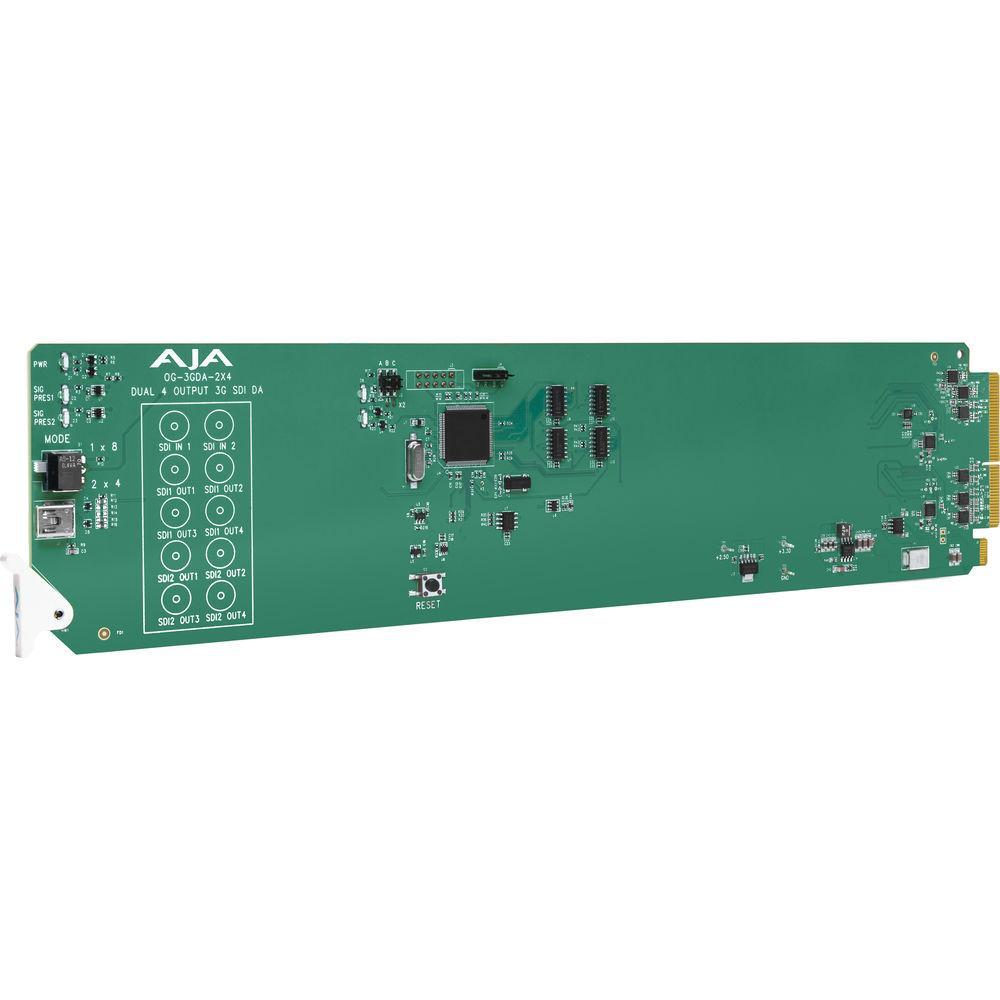

AJA 2X4 3G-SDI Distribution Amplifier Card

Name: AJA 2X4 3G-SDI Distribution Amplifier Card
Brand: AJA
SKU: AJA-OG-3GDA-2X4
Price: 1177.00 AUD
Availability: InStock

AJA | SKU: AJA-OG-3GDA-2X4 | Barcode: 812321031768

$1,177.00 $1,335.00

Tax included Shipping calculated at checkout.

Videocraft Melbourne

Out of Stock. Backorder available

148 Highbury Road, Burwood VIC 3125
03 9273 7500

Videocraft Sydney

Out of Stock. Backorder available

20/39 Herbert Street, St Leonards NSW 2065
02 9462 8600

Shipping Options

Shipping Methods & Estimated Delivery Times

Australia Post Express Shipping – 1–2 business days within the same state, 1–3 business days interstate.
Australia Post Regular Shipping – 2–4 business days within the same state, 3–6 business days interstate.
StarTrack Express – 2–7 business days, depending on location.
StarTrack Premium – Next business day between capital cities and major metro areas.
Local On-Demand Delivery (Small Orders Only) – Same-day delivery within Melbourne & Sydney metro areas using Uber and Yello.

Shipping Cut-Off Time: Orders placed before 2 PM will typically be processed and dispatched the same day.

Please note: **We ship orders as a single shipment. If your order contains items with different availability, your order will be held until all items are ready to be shipped together.** Keep this in mind when placing your order. If this is an issue, please contact us at websales@videocraft.com.au to arrange for alternative shipping options.

The AJA 2X4 3G-SDI Distribution Amplifier Card is an openGear compatible, state of the art 3G-SDI distribution amplifier. The incoming 3G-SDI signals on the input channels are automatically equalized and the outputs are automatically reclocked to four 3G-SDI outputs each or alternatively can function as a 1x 8-channel DA, allowing the same signal to be sent to eight destinations simultaneously. This dual input capability allows double the number of DAs in limited frame space.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Video Formats	150 Mbps - 3 Gbps, format agnostic
Video Input Digital	1x 3G-SDI BNC (1x8 mode), SMPTE-259/292/424
	2x 3G-SDI BNC (2x4 mode), SMPTE-259/292/424
Video Output Digital	8x 3G-SDI BNC, SMPTE-259/292/424
	4x outputs noninverting (1x8 mode)
	2x outputs noninverting for each DA (2x4 mode)
Cable Equalisation (Belden 1694A coax)	270 Mbps, 350m
	1.5 Gbps, 200m
	3 Gbps, 120m
Reclocking	270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
	All other rates are passed through and not reclocked
User Controls	openGear DashBoard network control software via Windows, macOS or Linux
Size (w x d x h)	openGear standard form-factor, front slot and rear card
	Slots: Two slots required for each card
Weight	0.5 lb (0.3 kg)
Power	openGear frame compatible, 2.6 watts max per card
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F)
	Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
	Operating Relative Humidity: 10-90% noncondensing
	Operating Altitude: <3,000 meters (<10,000 feet)
