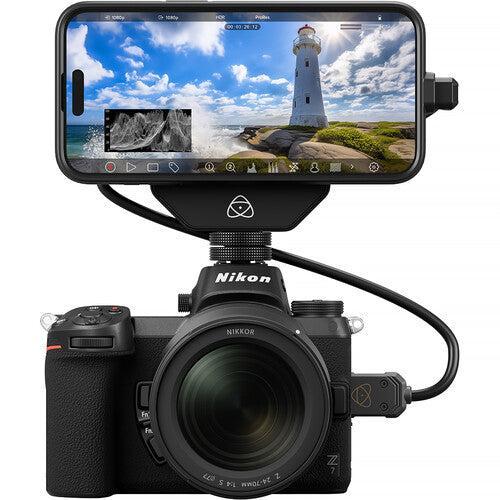

Atomos Ninja Phone Video Co-Processor Base Model

Name: Atomos Ninja Phone Video Co-Processor Base Model
Brand: Atomos
SKU: ATO-ATOMNJPB01
Price: 321.00 AUD
Availability: InStock

Atomos | SKU: ATO-ATOMNJPB01 | Barcode: 814164022972

$321.00 $328.90

Tax included Shipping calculated at checkout.

Shipping Options

Shipping Methods & Estimated Delivery Times

Australia Post Express Shipping – 1–2 business days within the same state, 1–3 business days interstate.
Australia Post Regular Shipping – 2–4 business days within the same state, 3–6 business days interstate.
StarTrack Express – 2–7 business days, depending on location.
StarTrack Premium – Next business day between capital cities and major metro areas.
Local On-Demand Delivery (Small Orders Only) – Same-day delivery within Melbourne & Sydney metro areas using Uber and Yello.

Shipping Cut-Off Time: Orders placed before 2 PM will typically be processed and dispatched the same day.

Please note: **We ship orders as a single shipment. If your order contains items with different availability, your order will be held until all items are ready to be shipped together.** Keep this in mind when placing your order. If this is an issue, please contact us at websales@videocraft.com.au to arrange for alternative shipping options.

The Atomos Ninja Phone is a game-changer for iPhone videographers. This 10-bit video co-processor unlocks professional filmmaking features on the iPhone 15 Pro and Pro Max. Creators can capture high-quality footage in ProRes or H.265, and leverage the iPhone's gorgeous OLED display for precision monitoring with HDR and a wide color gamut. It even lets you connect a pro camera for advanced monitoring and control, all in a compact and portable package.

Video

Video Input Format	1080p 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98 fps 720p 60, 59.94, and 50 fps
Video Codec	ProRes HQ, ProRes 422, ProRes LT, ProRes Proxy, H.265 Main 10, H.265 8b, and H.264 8b
Video Input Port	HDMI Type-A
Video Output Port	USB-C 3.1 Gen 1 ProRes HQ, ProRes 422, ProRes LT, ProRes Proxy, H.265 Main 10, H.265 8b, and H.264 8b 1080p 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98 fps 720p 60, 59.94, and 50 fps

Audio

HDMI	48 kHz 2-Channel PCM
USB-C Mic	Matches Microphone Sample Rate Locks Audio to Video

Power

USB Power	USB-C 5 V/3 A (Ninja Phone Charges iPhone and Accessories When Attached)
Accessory Port	USB-C 3.1 Gen 1 with 5 V/1 A
Battery Compatibility	NP-F550, F750, and F970 (Ninja Phone Charges iPhone and Accessories When Attached)
Power Consumption	2.4 W (Without Charging iPhone) 4 W (With iPhone 15 Pro) 10 W (With 5th Gen iPad Air)

Environment

Operating Temperature

32 to 104¬∞F / 0 to 40¬∞C

Dimensions & Weight

Dimensions	3.9 x 3.4 x 0.7" / 98.2 x 85.4 x 17.4 mm
Weight	3.3 oz / 94.0 g

Other Specifications

Chip	AtomIC 5
Mounting Points	1/4"-20 with Guide Pins
iPhone Monitor Specs	Super Retina XDR Display 6.7" Diagonal All‚ÄëScreen OLED Display 2796 x 1290 Resolution at 460 ppi Dynamic Island Always-On Display ProMotion Technology with Adaptive Refresh Rates up to 120 Hz HDR Display True Tone Wide Color (P3) Haptic Touch 2,000,000:1 Contrast Ratio (Typical) 1000 nits Max Brightness (Typical); 1600 nits Peak Brightness (HDR); 2000 nits Peak Brightness (Outdoor) Fingerprint-Resistant Oleophobic Coating Support for Display of Multiple Languages and Characters Simultaneously
iPhone Splash, Water, and Dust Resistance	Rated IP68 (Maximum Depth of 19.6'/6 m for up to 30 Minutes) Under IEC Standard 60529
iPhone Chip	A17 Pro Chip 6-Core CPU with 2 Performance and 4 Efficiency Cores 6-Core GPU 16-Core Neural Engine
iPhone Video Recording with Ninja Phone	Video Formats Recorded: HEVC, H.264, and ProRes 1080p HD Video Recording at 25, 30, or 60 fps 720p HD Video Recording at 30 fps Cinematic Mode HDR Video Recording with Dolby Vision ProRes Video Recording up to HDp60 Internal Log Video Recording Academy Color Encoding System Cinematic Video Stabilization (4K, 1080p, and 720p)
Connectivity	5G (Sub-6 GHz and mmWave) with 4x4 MIMO8 Gigabit LTE with 4x4 MIMO and LAA8 Wi-Fi 6E (802.11ax) with 2x2 MIMO9 Bluetooth 5.3 Second Generation Ultra Wideband chip10 Thread Networking Technology NFC with Reader Mode Express Cards with Power Reserve
Location	Precision Dual-Frequency GPS Digital Compass Wi-Fi Cellular iBeacon Microlocation
