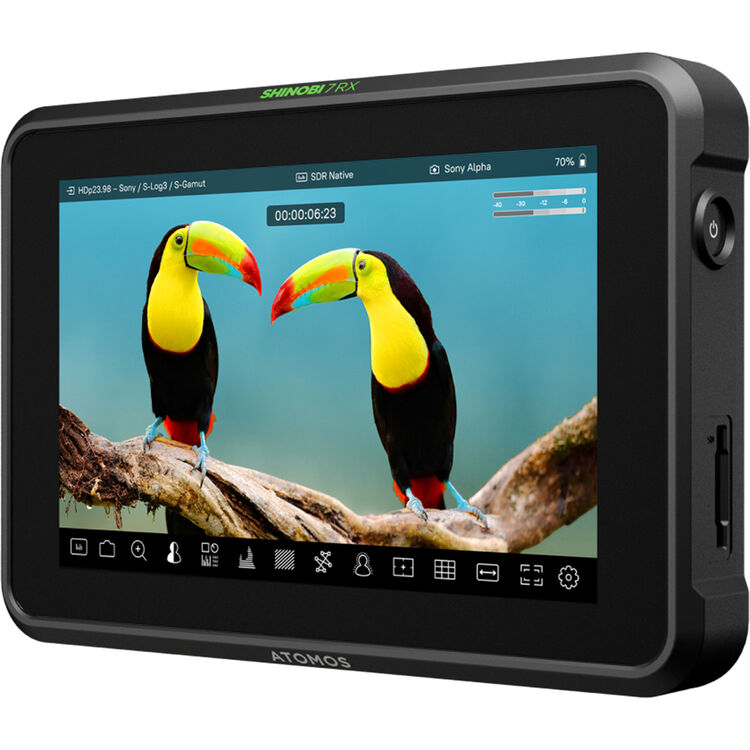

Atomos Shinobi 7 RX HDMI and SDI HDR On-Camera Monitor and Wireless Receiver

The Atomos Shinobi 7 RX is a professional 7-inch HDR on-camera monitor and wireless receiver designed for video production teams who need reliable, high-quality image monitoring on set. Built for focus pullers, directors, and camera assistants, this daylight-viewable monitor combines wired HDMI and SDI connectivity with Wi-Fi 6E wireless transmission, letting you view 4K footage remotely up to 300 metres away with sub-60ms latency. It delivers camera control via USB-C or serial connection, supports extensive Log and HDR formats from major manufacturers, and provides professional monitoring tools like waveforms and custom LUT loading, all while maintaining colour accuracy through factory calibration and optional probe-based recalibration.

Wireless Freedom Meets Professional Monitoring

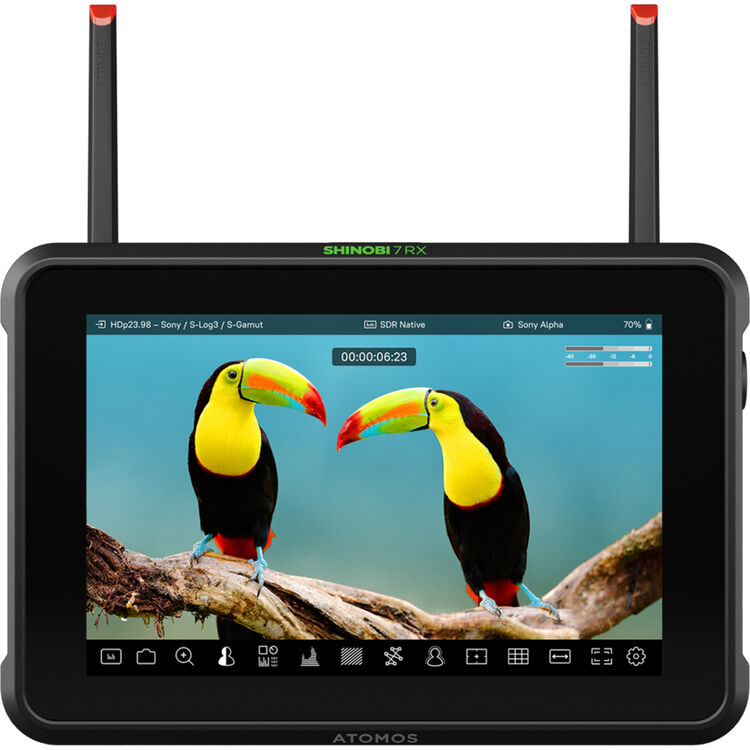

The standout feature of the Shinobi 7 RX is its built-in Wi-Fi 6E receiver, which pairs seamlessly with Atomos TX transmitters or accepts external RTSP H.264 streams. This wireless capability solves a common production challenge: keeping your crew mobile without sacrificing visual feedback. Whether you're operating a gimbal, working with a Steadicam, or simply need your director to review shots from video village, the 300-metre range and low latency ensure everyone stays connected to the action.

Daylight Visibility Without Compromise

With a 2200 cd/m² LED backlight, the 1920 x 1080 IPS LCD screen remains perfectly visible even in harsh Australian sunlight, eliminating the need for cumbersome hoods or shades. Factory colour calibration ensures what you see accurately represents what you're capturing, and the monitor supports ongoing calibration with Calibrite Display Pro HL/Plus HL probes through the Atomos Calibrator app. This level of accuracy is essential for maintaining consistency across your workflow, from on-set monitoring through to post-production.

Comprehensive Camera Control

Touch to focus changes how you work with compatible cameras. Simply tap the touchscreen where you want focus, and the camera responds instantly, with focus tracking modes keeping your subject sharp as they move. Beyond focus, the Shinobi 7 RX provides intuitive control over essential camera parameters:

• Record start/stop triggering
• ISO, aperture, and shutter speed/angle adjustment
• White balance control
• Camera overlay management
• Record indicator display

Supported cameras include Canon, FUJIFILM, Nikon, Panasonic, Sony (via USB-C), and Z CAM E2 models (via optional serial cable), making it compatible with most professional and prosumer camera systems.

Flexible Connectivity Options

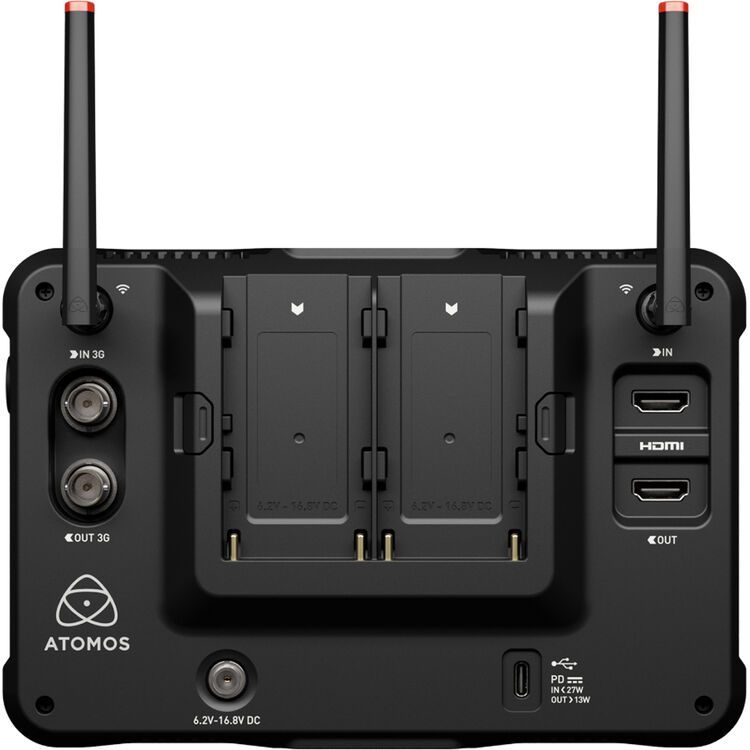

The monitor handles both HDMI 2.0 and 3G-SDI inputs simultaneously, with HDMI supporting up to 4K 60fps and SDI handling up to 1080p60. Cross-conversion between HDMI and SDI gives you routing flexibility, while loop outputs let you daisy-chain additional monitors or recording devices. Embedded audio passes through both HDMI and SDI connections, with a 3.5mm headphone output for monitoring and a 3.5mm stereo line input for external audio sources.

Extended Runtime and Power Versatility

Dual NP-F/L-series battery slots provide hot-swappable power for uninter
