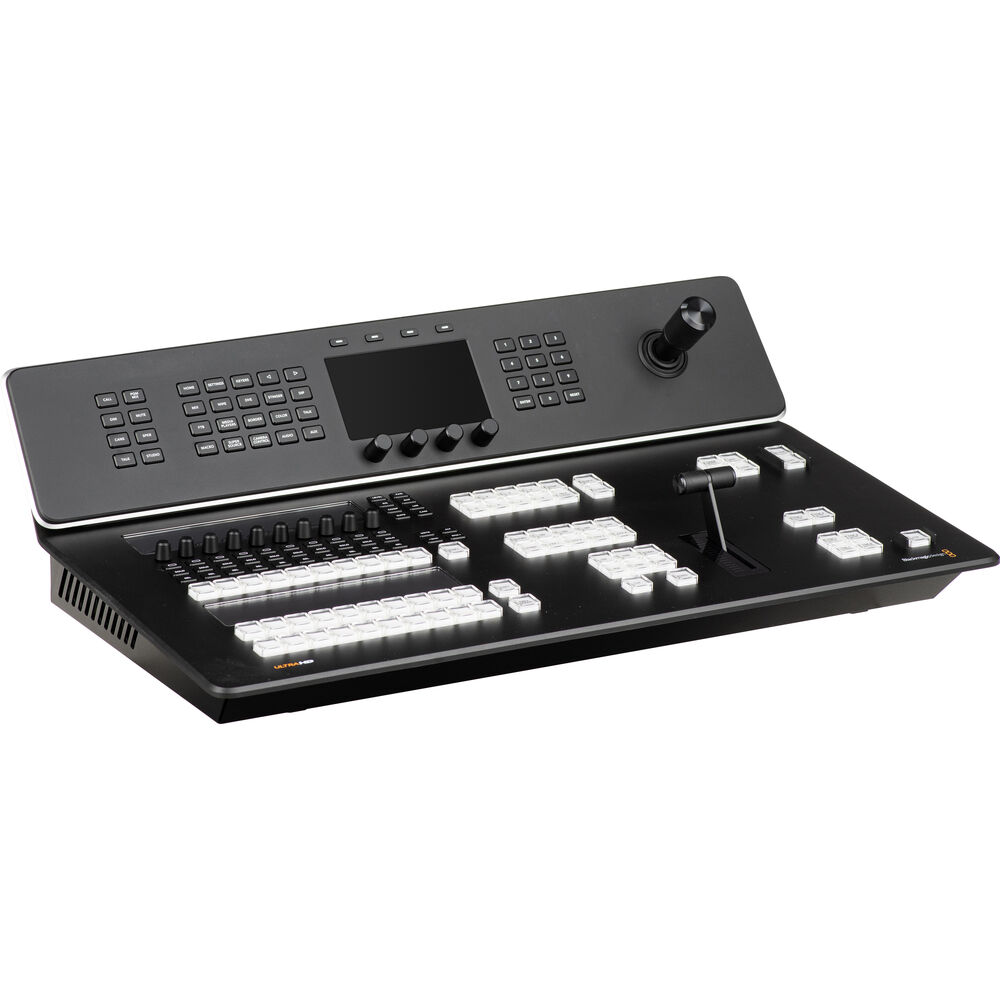

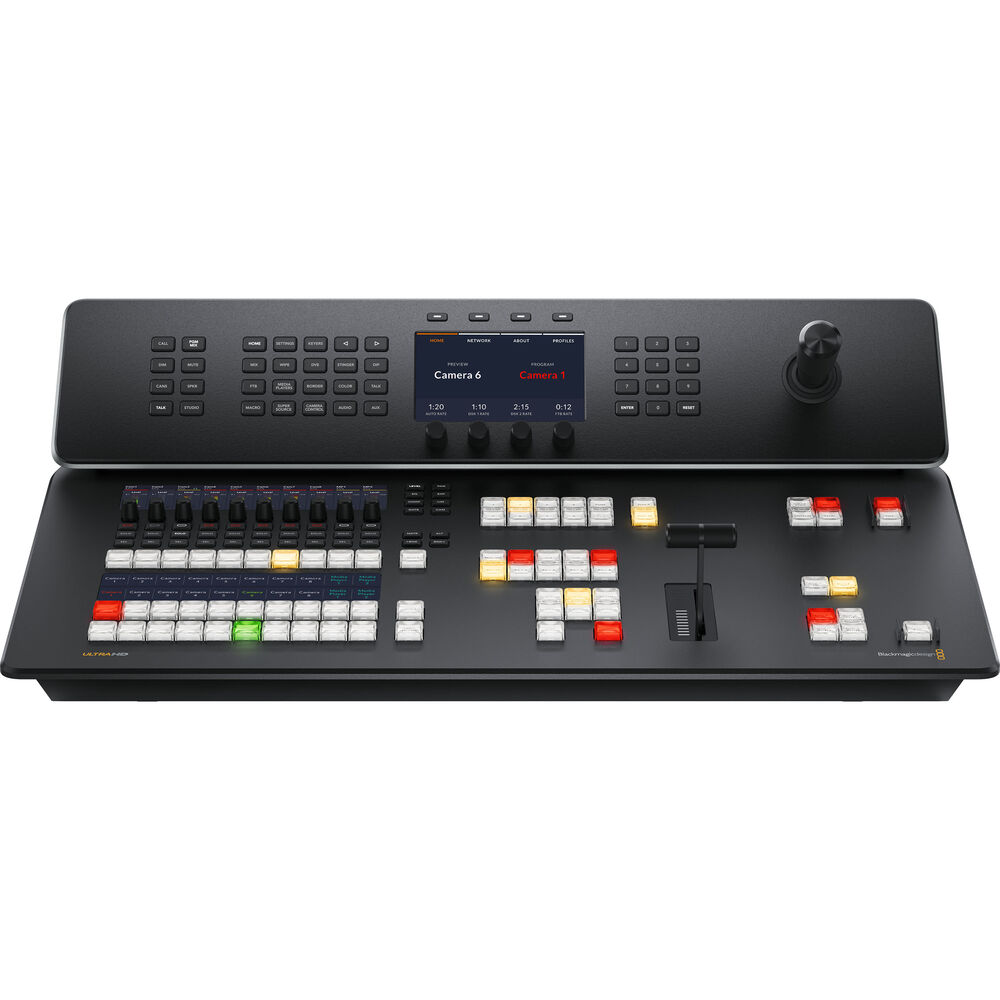

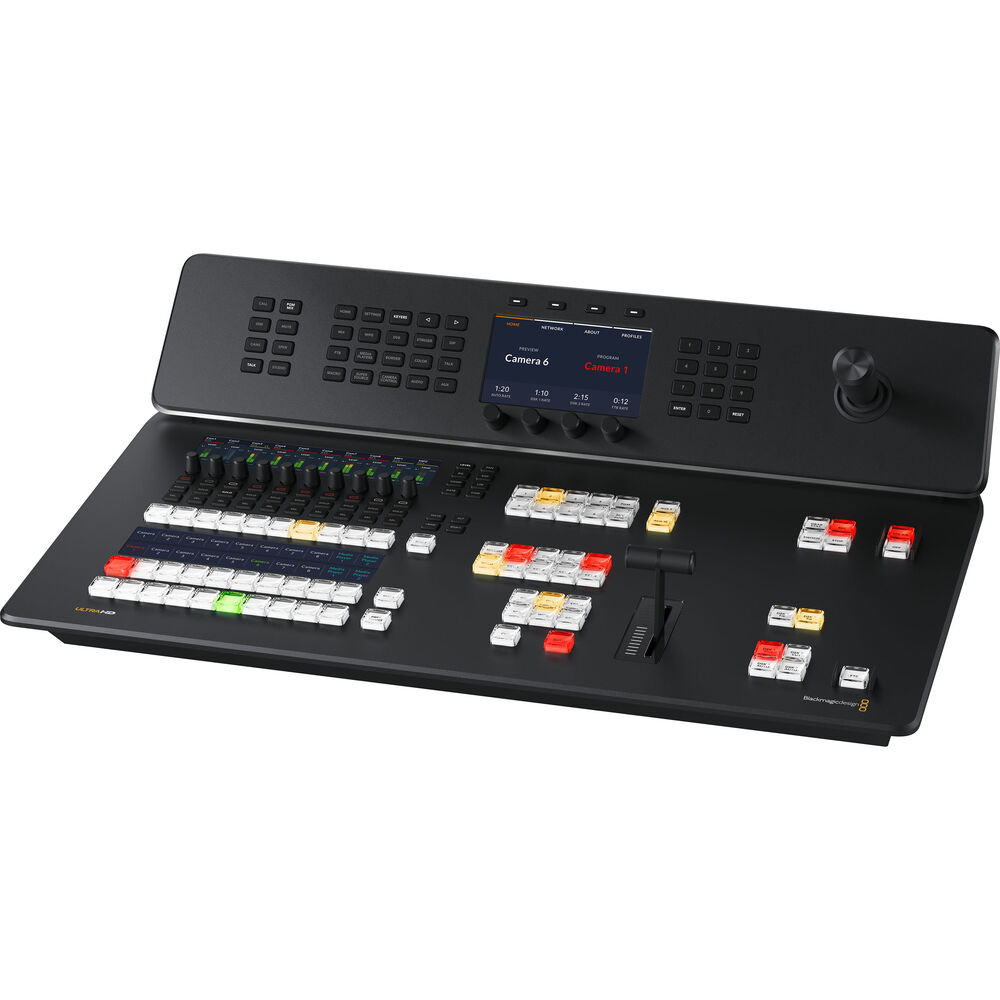

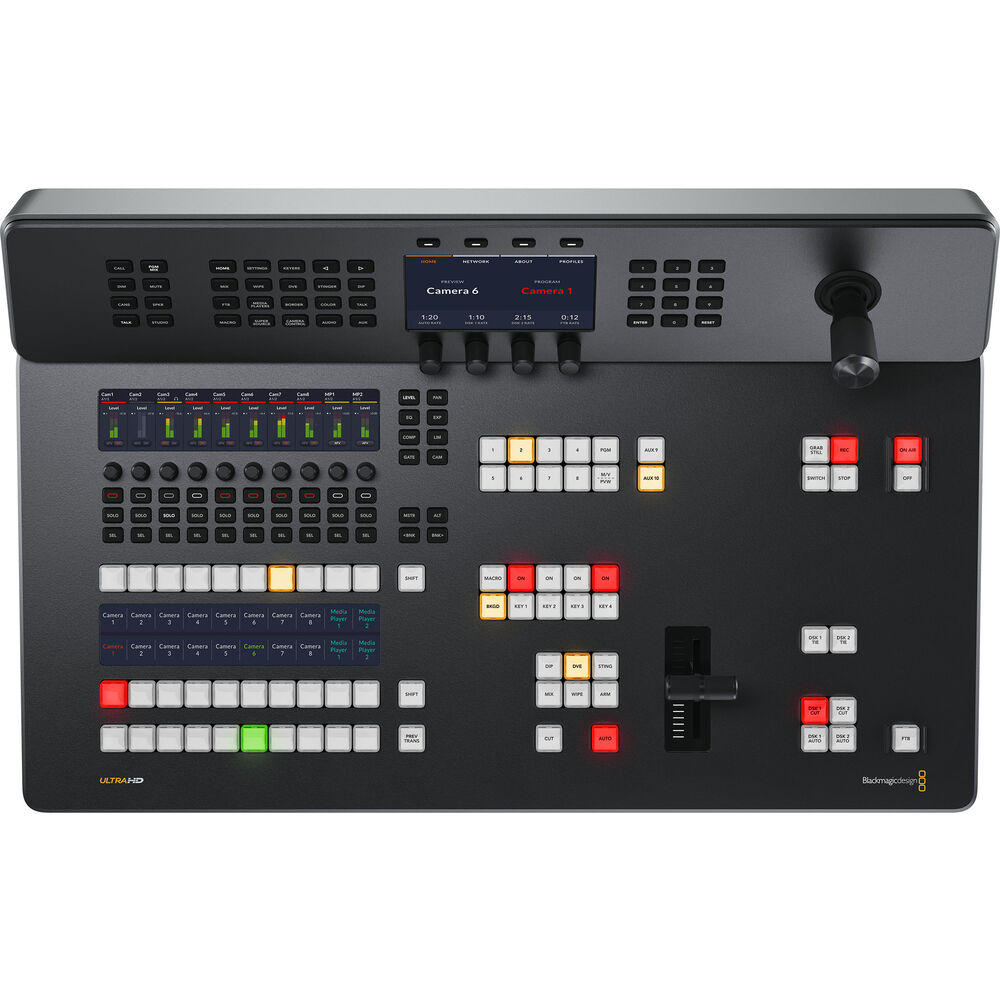

Blackmagic Design ATEM Television Studio 4K8 2TB

The Blackmagic Design ATEM Television Studio 4K8 2TB is a compact live streaming switcher designed for professional video production in studios, remote locations, or live venues. It features eight 3G-SDI inputs supporting up to 1080p60, integrated 2TB M.2 NVMe recording, built-in streaming, USB webcam output, and Blackmagic Cloud integration for immediate access to program recordings worldwide.

Live Production Capabilities

This switcher supports up to eight cameras with professional camera control, talkback, and a 58-channel audio mixer. It offers program and two aux outputs, making it suitable for mobile production setups. The front panel includes high-end broadcast buttons and a T-bar for manual transitions, allowing smooth switching between video sources.

Built-In Streaming and Recording

The ATEM Television Studio 4K8 includes a hardware streaming engine for live broadcasts in H.264 format with AAC audio, ready for platforms like YouTube. Internal recording is handled by the integrated 2TB M.2 NVMe drive, with options to record to external USB drives. Recordings are accessible via local Ethernet or Blackmagic Cloud for remote postproduction workflows.

Advanced Video Effects and Multiview

It features broadcast-grade video effects such as chroma keyers, DVE for picture-in-picture, and customizable transitions including dissolves, dips, and wipes. The 16-source multiview output lets you monitor all inputs, preview, and program feeds on a single SDI or HDMI monitor with tally indicators and audio meters.

Flexible Connectivity and Audio

Eight 3G-SDI inputs each have dedicated standards converters, allowing mixed video formats to be used simultaneously. Outputs include nine 3G-SDI program feeds, two aux outputs, and a multiview output. Audio can be routed across embedded channels and expanded with additional microphone converters via MADI for larger setups.

Software Control and Customisation

The free ATEM Software Control app unlocks full access to switcher features, including live switching, audio mixing, media management, and macro creation. It supports multiple languages and can be run on multiple computers via Ethernet, providing flexible control options for diverse production environments.

Reliable Power and Serviceability

Equipped with an internal power supply compatible with 100 to 240 VAC and an XLR 12 VDC backup input, the switcher ensures continuous operation in various locations. Its modular design allows easy repair and replacement of internal PCBs, reducing downtime and maintenance costs.
