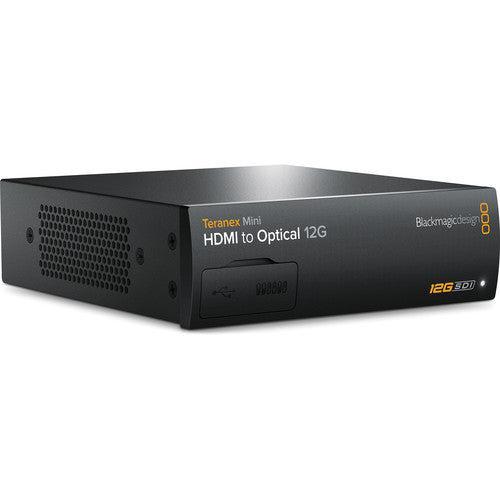

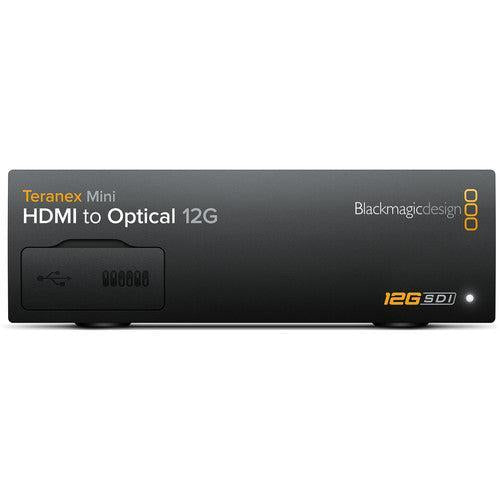

Blackmagic Design Teranex Mini HDMI to Optical 12G Converter

Name: Blackmagic Design Teranex Mini HDMI to Optical 12G Converter
Brand: Blackmagic Design
SKU: BLA-CONVNTRM-MB-HOPT
Price: 830.01 AUD
Availability: InStock

Blackmagic Design | SKU: BLA-CONVNTRM-MB-HOPT | Barcode: 4000001483068

$830.01 $909.00

Tax included Shipping calculated at checkout.

Videocraft Melbourne

Out of Stock. Backorder available

148 Highbury Road, Burwood VIC 3125
03 9273 7500

Videocraft Sydney

Out of Stock. Backorder available

20/39 Herbert Street, St Leonards NSW 2065
02 9462 8600

Shipping Options

Shipping Methods & Estimated Delivery Times

Australia Post Express Shipping – 1–2 business days within the same state, 1–3 business days interstate.
Australia Post Regular Shipping – 2–4 business days within the same state, 3–6 business days interstate.
StarTrack Express – 2–7 business days, depending on location.
StarTrack Premium – Next business day between capital cities and major metro areas.
Local On-Demand Delivery (Small Orders Only) – Same-day delivery within Melbourne & Sydney metro areas using Uber and Yello.

Shipping Cut-Off Time: Orders placed before 2 PM will typically be processed and dispatched the same day.

Please note: **We ship orders as a single shipment. If your order contains items with different availability, your order will be held until all items are ready to be shipped together.** Keep this in mind when placing your order. If this is an issue, please contact us at websales@videocraft.com.au to arrange for alternative shipping options.

The Blackmagic Design Teranex Mini HDMI to Optical 12G Converter is a highly improved solution for rack-mount as well as cable duct and desktop installations. Supporting up to 12G data rates with intelligent heat dissipation, and offering features such as XLR connections and an Ethernet control and PoE port, this model is an optical fiber version of the Teranex Mini HDMI to SDI model, featuring an optical fiber output in addition to the SDI output to give you a choice of both. Both support up to 12G data rates and you can route your HDMI signal in up to Full 4K DCI 4096x2160p resolution via either. You can also connect separate audio via full-size XLR connectors that are switchable between balanced analog and AES/EBU digital audio. The SDI output will allow you to run 4096x2160p signals approximately 70 ft using 6G-SDI cables, while the optical output is capable of extra long distances. When 12G-SDI cables will be available on the market, you'll be able to route 4096x2160p signals for over 250 ft over the SDI output.

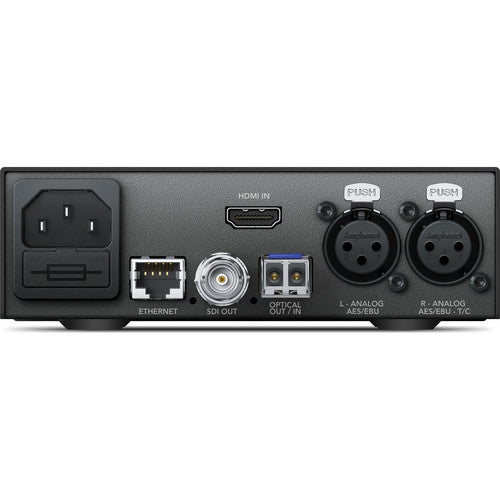

HDMI Input	1x HDMI 2.0 type A
Optical Fiber Video Output	1x 12G output, automatically matches the HDMI video input resolution
SDI Video Output	1x 12G-SDI on BNC, automatically matches the HDMI video input resolution
Optical Fiber Type	LC connector, 1310 nanometer wavelength, single mode
Analog Audio Input	2 channels professional balanced analog audio via XLR connectors Right XLR can be configured for timecode input
AES/EBU Audio Input	4 channels professional 110 ohm balanced digital audio via XLR connectors Right XLR can be configured for timecode input
Multi Rate Support	Automatic switching between SD, HD, 2K, and 4K
Updates and Configuration	USB or Ethernet
Re-Clocking	Yes
SD Format Support	525/29.97 NTSC, 625/25 PAL
HD Format Support	1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60
2K Format Support	2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25
4K Format Support	3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
SDI Compliance	SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE 297M for Optical Fiber SDI
SDI Video Rates	SDI video connections are auto switching between SD-SDI, HD-SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI
SDI Video Sampling	4:2:2 and 4:4:4
SDI Audio Sampling	Television standard sample rate of 48 kHz and 24-bit
SDI Color Precision	YUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K
SDI Color Space	REC 601, REC 709
HDMI Format Support	525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
HDMI Color Space	REC 601, REC 709
HDMI Color Precision	YUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K
Software Control	Mac OS X and Windows software upgrade via USB and Ethernet
Internal Software Upgrade	Via included updater application
Basic Settings Control	Mini Switches, USB, and Ethernet via free software utility
Power Supply	1x built-in international AC power supply with IEC C14 inlet IEC power cable required (not included) 90 - 240 VAC input
Power Over Ethernet	Can be powered via 48 VDC using PoE (Power-over-Ethernet)
Power Consumption	15 W
Operational Voltage Range	90 - 240 VAC
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Relative Humidity	0 to 90% non-condensing
Dimensions	W x H x D: 5.5 x 1.8 x 6.7" (14 x 4.6 x 17 cm) (with SDI port included)
Weight	1.3 lb (0.6 kg)
