Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR

The Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR is an advanced 8K monitoring solution for DisplayPort computer displays or high-quality monitors such as the new Pro Display XDR. Unlike basic converters, Teranex Mini SDI to DisplayPort 8K HDR can use third-party calibration probes to accurately align connected displays for precise colour. There are 2 on-screen scopes that can be selected between WFM, Parade, Vector and Histogram. Teranex Mini SDI to DisplayPort 8K HDR is perfect for film studios and broadcasters who need professional but affordable colour accurate monitoring. Customers also get an elegant design with colour LCD for monitoring and control of settings.

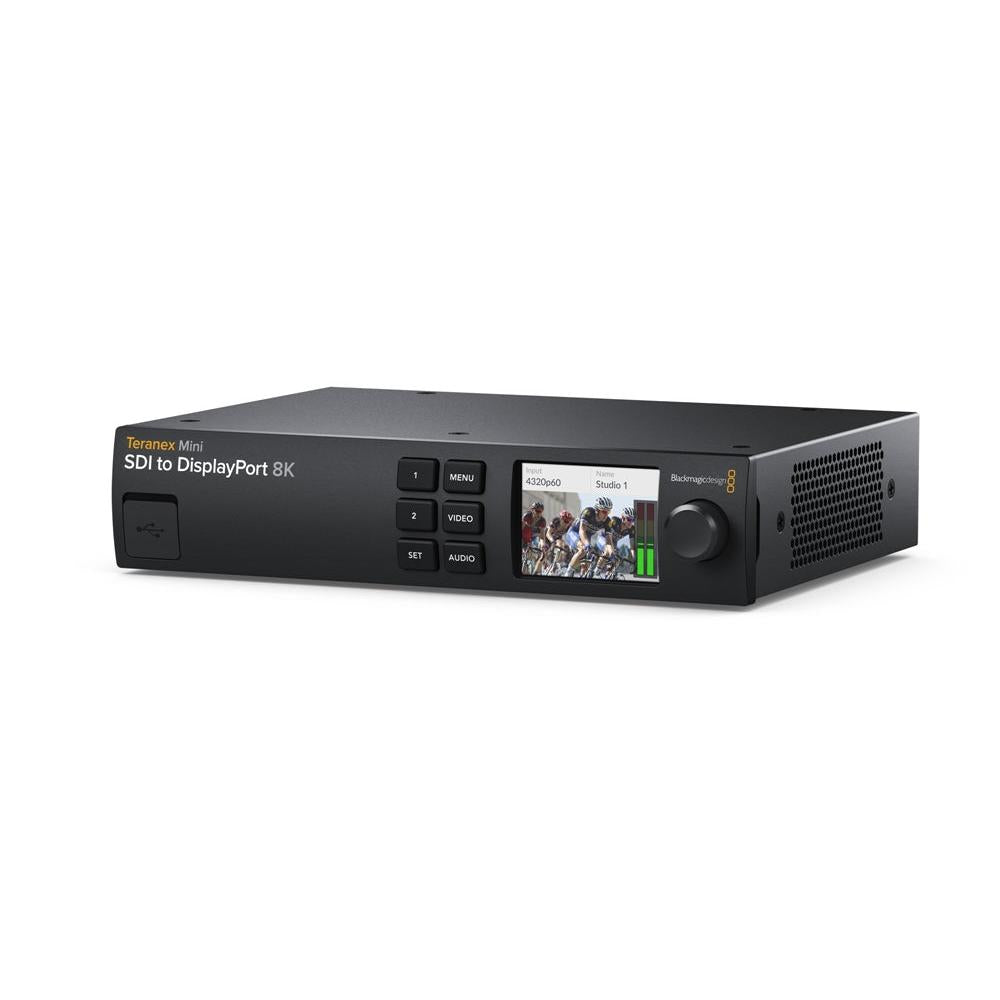

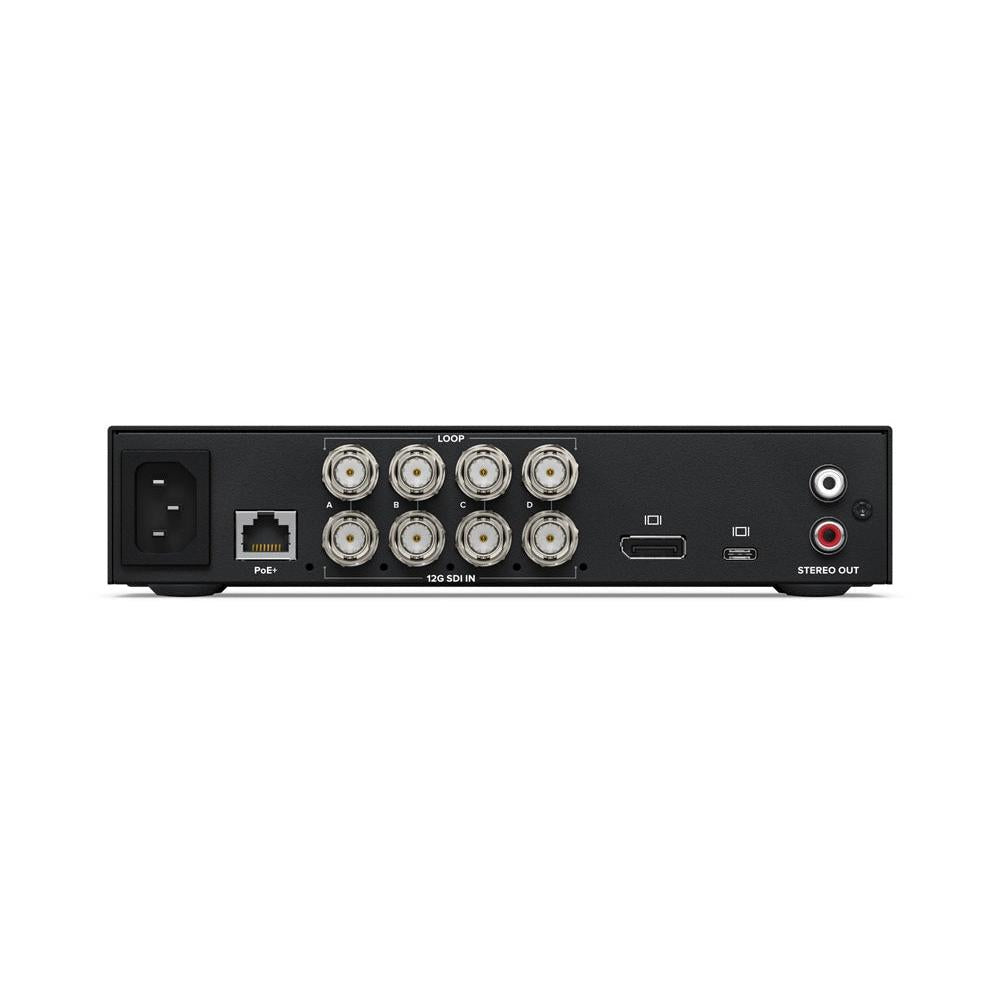

The front panel includes controls and a colour display for input video, audio meters and the video standard indicator. The rear panel has Quad Link 12G-SDI for HD, Ultra HD as well as 8K formats. There are 2 DisplayPort connections for regular computer monitors or USB-C style DisplayPort monitors such as the new Pro Display XDR. The built-in scaler will ensure the video input standard is scaled to the native resolution of the connected DisplayPort monitor. Customers can even connect both 2SI or Square Division inputs.

The converter lets you use third-party calibration probes to accurately align connected displays for precise colour. In addition to this, two on-screen scopes can be selected between WFM, Parade, Vector & Histogram. SpectraCal C6, X-Rite i1 Display Pro or the Klein K10-A probes are supported and plug into the front of the converter. Teranex Mini SDI to DisplayPort 8K HDR has everything for the latest HDR workflows. All that’s required is to connect an HDR compatible DisplayPort monitor to allow HDR SDI monitoring. Static metadata PQ and Hybrid Log Gamma (HLG) formats in the VPID are handled according to the ST2108-1, ST2084 and the ST425 standards.

The Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR handles ST425 which defines 2 new bits in the VPID to indicate transfer characteristic of SDR, HLG or PQ. Plus the ST2108-1 standard defines how to transport HDR static or dynamic metadata over SDI. Plus there is support for ST2082-10 for 12G SDI as well as ST425 for 3G-SDI sources. Both Rec.2020 and Rec.709 colorspaces are supported and 100% of the DCI-P3 format.

Features:

• Includes support for HDR via SDI and DisplayPort
• 2 built in scopes live overlaid on monitor
• Film industry quality 33 point 3D LUTs
• Supports automatic monitor calibration using color probes
• Advanced Quad Link 12G-SDI inputs for 8K
• Scales input video to the native monitor resolution
• Includes LCD for monitoring and menu settings
• Utility software included for Mac and Windows
• Supports latest 8K DisplayPort monitors and displays
• Can be used on a desktop or rack mounted
