Chrosziel MagNum Mini Kit with CDM-100S Motor

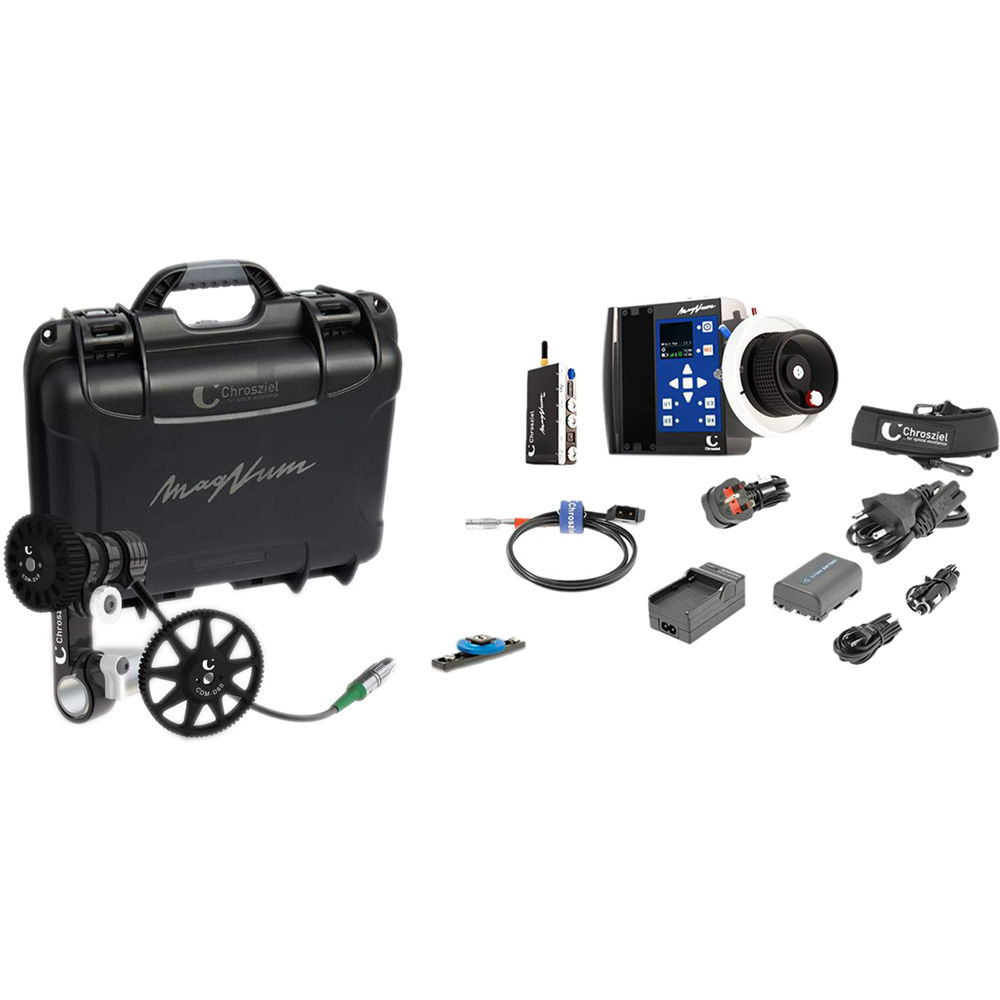

The Chrosziel MagNum Mini Kit with CDM-100S Motor is a single-channel wireless focus control system suited for handheld, gimbal, drone, Steadicam, and most other applications. The kit includes the MagNum receiver, CDM-100S 15/19mm rod-mount digital lens motor, transmitter hand unit, power/mounting accessories, and a hard carry case measuring just above 15 x 12".
The receiver offers 11 selectable 2.4 GHz RF channels and up to 330' RF transmission (depending on the environment). In a highly compact housing, it features one-channel focus control with a power booster for enhanced motor drive, auto motor calibration for cine lenses (manual for photo lenses), and LEMO start/stop input ports.
The transmitter hand unit provides four assignable user keys with recall and a record start/stop key. A high-contrast multicolor OLED display on the transmitter indicates status and other settings, while ergonomic hand/finger supports on the left and a large handwheel on the right allow you to dial in precise focus adjustments. The handwheel operates with stepless adjustable dampening while also offering two freely adjustable mechanical end stops and a wheel lock.
