Blackmagic Design Video Assist 3G Recorder / Monitor - 5 inch

Name: Blackmagic Design Video Assist 3G Recorder / Monitor - 5 inch
Brand: Blackmagic Design
SKU: BLA-HYPERD/AVIDA03/5
Price: 499.00 AUD
Availability: InStock

Blackmagic Design | SKU: BLA-HYPERD/AVIDA03/5 | Barcode: 9338716006407

$499.00 $559.00

Tax included Shipping calculated at checkout.

Videocraft Melbourne (Burwood)

In Stock, Pickup Available.

Videocraft Sydney (St Leonards)

In Stock, Pickup Available.

Shipping Options

Shipping Methods & Estimated Delivery Times

Australia Post Express Shipping – 1–2 business days within the same state, 1–3 business days interstate.
Australia Post Regular Shipping – 2–4 business days within the same state, 3–6 business days interstate.
StarTrack Express – 2–7 business days, depending on location.
StarTrack Premium – Next business day between capital cities and major metro areas.
Local On-Demand Delivery (Small Orders Only) – Same-day delivery within Melbourne & Sydney metro areas using Uber and Yello.

Shipping Cut-Off Time: Orders placed before 1 PM will typically be processed and dispatched the same day.

Please note: **We ship orders as a single shipment. If your order contains items with different availability, your order will be held until all items are ready to be shipped together.** Keep this in mind when placing your order. If this is an issue, please contact us at websales@videocraft.com.au to arrange for alternative shipping options.

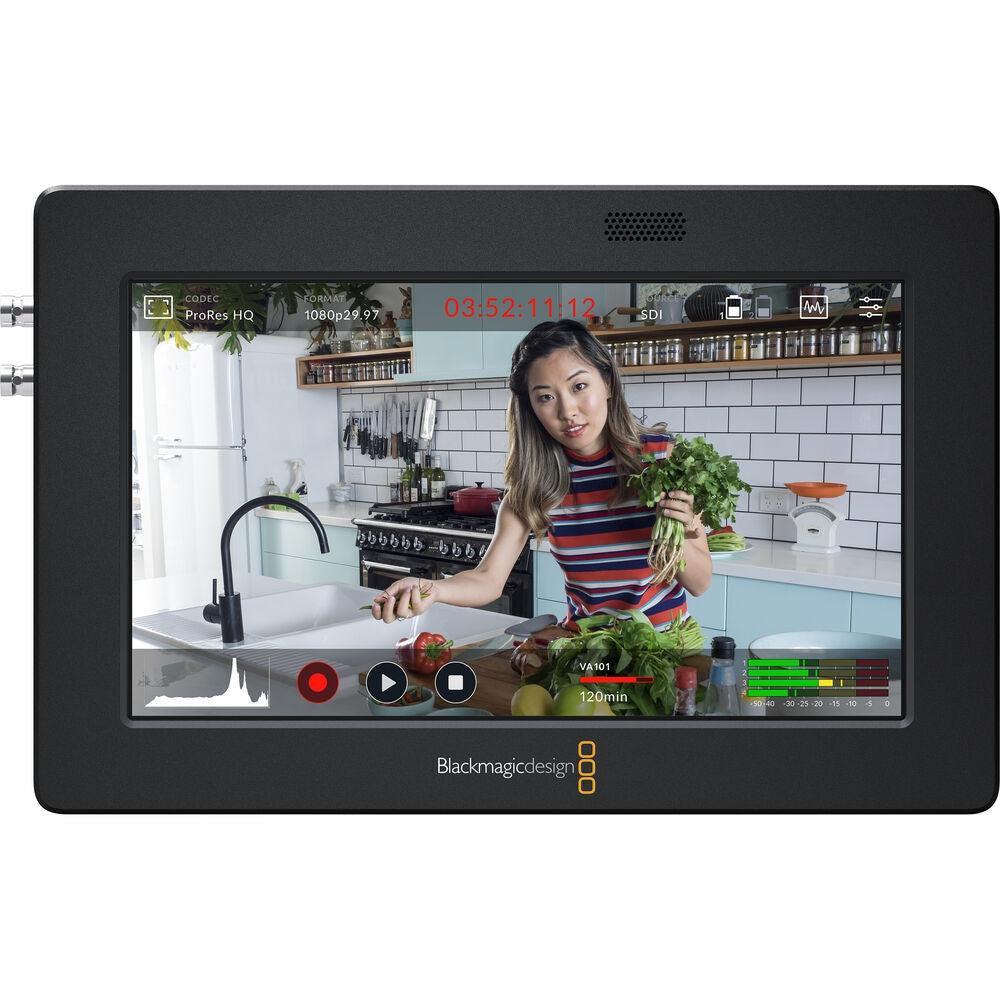

The Blackmagic Design 5 inch Video Assist 3G Recorder and Monitor features a bright 5 Inch 1920 x 1080 display with 300 cd/m² brightness to help you frame and focus your shots, and it provides 3G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. You can monitor and record video resolutions up to 1080p60 10-bit 4:2:2 and up to 16 channels of embedded 24-bit 48 kHz audio. Firmware update 3.3.1 adds a video output via the USB Type-C port that can be used to convert your connected camera for webcam use. It also enables you to select channels for audio monitoring.

The Video Assist 3G 5 Inch records to an SDXC/SDHC memory card using a single UHS-I SD card slot. Use the USB Type-C port to record for configuring and upgrading the monitor. Video is recorded using industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD codecs.

Blackmagic Video Assist 3G Features

Modern design with fast to use touchscreen controls
LCD features can be customized by the user
SD/USH-II card support for commonly available media
Upgrades cameras to better monitoring and better record codecs
Large LCD screen with digital film style focus assist tools
3G-SDI and HDMI for recording in SD and HD up to 1080p60
Standard open file formats compatible with popular software
Built in scopes include waveform, vector, parade and histogram
3D LUTs can be applied for both monitoring and recording
Professional multi channel digital and analog audio
Localized for 11 popular international languages
Works with popular NLE software such as DaVinci Resolve

Up to 1080p60 Video

Supports video formats up to 1080p60

Upgrades Older Camera Viewing/Recording

Can be used to upgrade viewing and recording options with older cameras

5" Touchscreen Display

This monitor's touchscreen interface enables you to adjust settings and access monitoring features such as histogram, waveform, RGB parade, vectorscope, and many more scopes and exposure tools

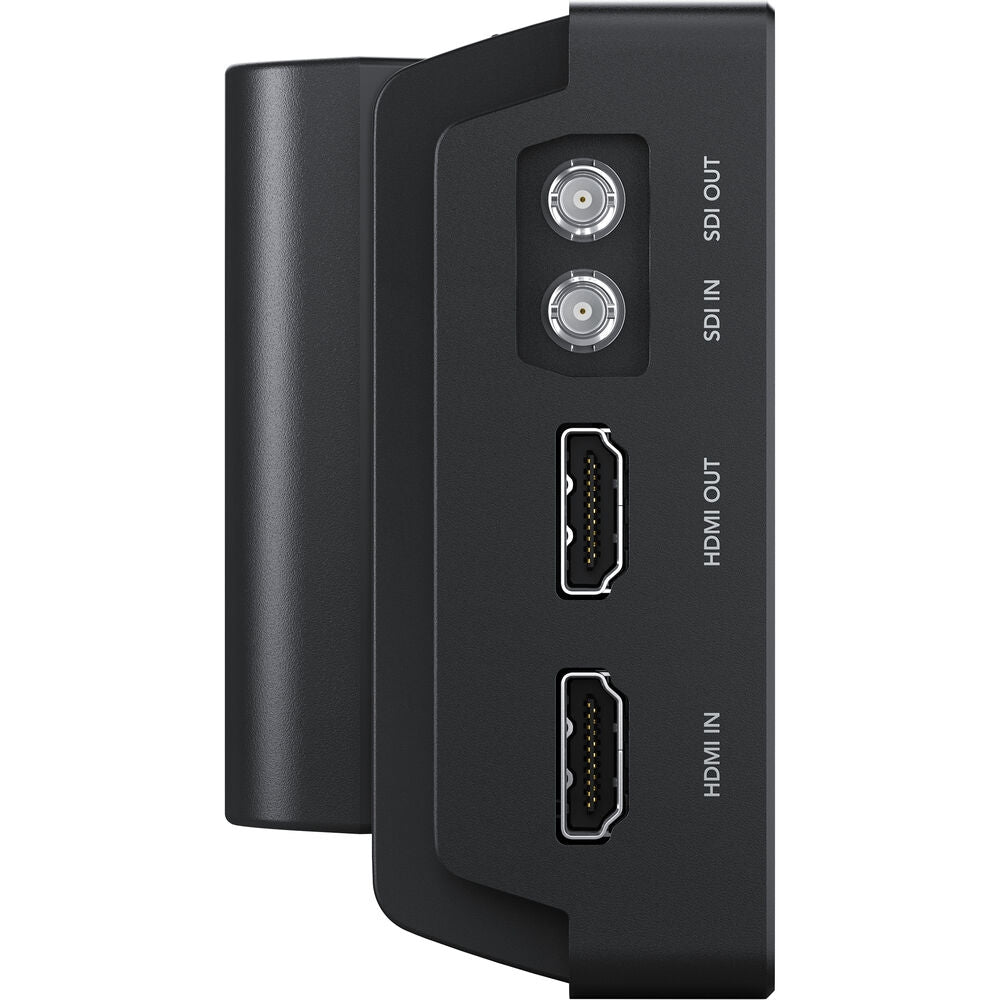

3G-SDI and HDMI Input/Loop-Out

3G-SDI and HDMI input ports with loop-through outputs provide compatibility with a variety of cameras and wireless video receivers

3D LUT Support

3D LUT support for customized viewing

1080p USB Webcam Output

Sends a streaming-friendly 1080p video signal to your computer, enabling the use of your connected camera as a webcam

Tally Light

A tally light on top of the monitor indicates it is operating and recording

Metadata Entry

Direct metadata entry

SD Card Slot

Single SD card slot for ProRes recording

Selectable Audio Monitoring

Ability to select which audio channels you are monitoring

Power Options

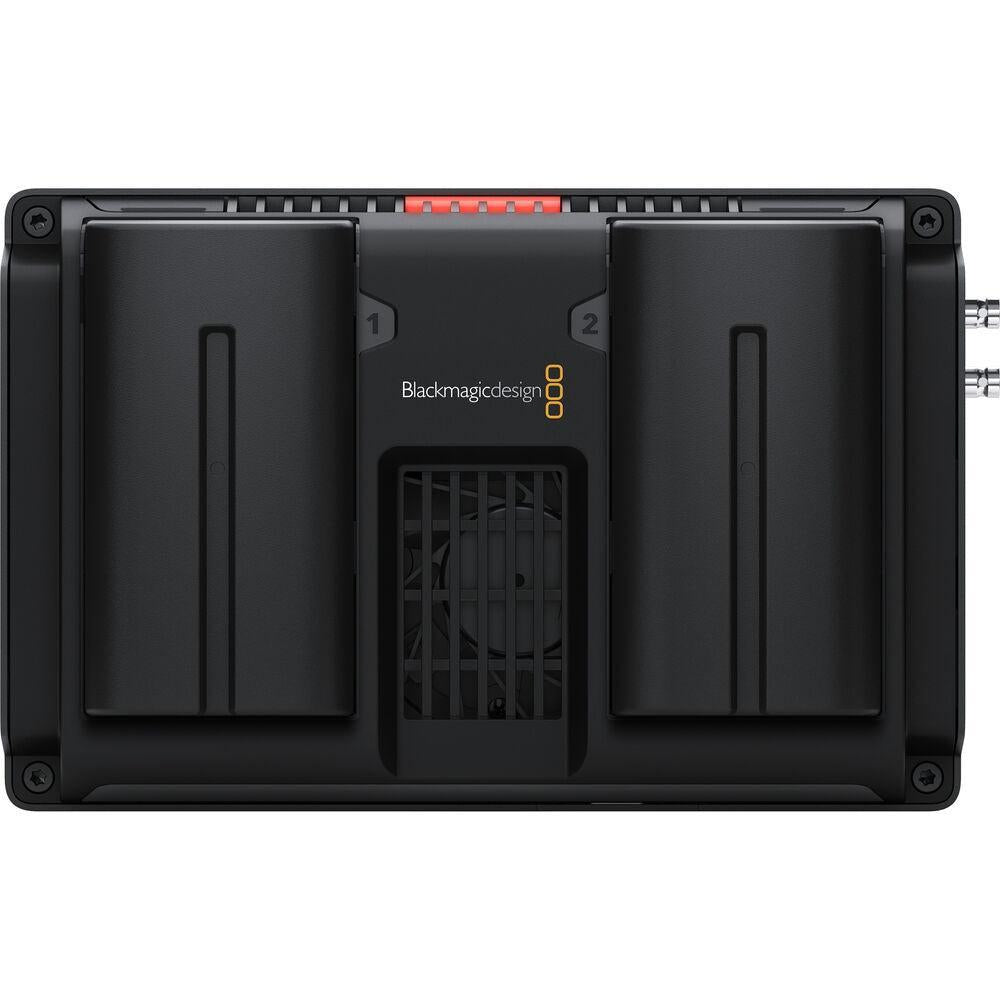

Power the monitor using the included 12V power adapter or the separately available Sony L-Series type batteries on the dual battery slots

Multiple Language Displays

Choose from 11 languages for easier use of on-screen text displays and menu options:

English
Chinese
French
German
Italian
Japanese
Korean
Portuguese
Russian
Spanish
Turkish

Minimum macOS System Requirements

macOS 10.15 Catalina
macOS 10.14 Mojave
USB 2.0 port for updates

Minimum Windows System Requirements

Microsoft Windows 10 64-bit
USB 2.0 port

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Panel Type	LCD
Display Size	5.0" / 12.7 cm
Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 135¬∞
Touchscreen	Yes
Maximum Brightness	300 cd/m²
HDR Compatibility	None
Pixels Per Inch (ppi)	441 ppi
Color Gamut	100% Rec. 709
Real-Time LUT Monitoring	SDR
Image Controls	Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

Video	1 x HDMI Type A Input 1 x Micro BNC (3G-SDI/HD-SDI/SD-SDI) Input 1 x HDMI Type A Output 1 x Micro BNC (3G-SDI/HD-SDI/SD-SDI) Output 1 x USB Type-C Output
HDCP Support	Yes
Embedded Audio	HDMI: 8-Channel SDI: 16-Channel
Audio	1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	1
Power I/O	1 x Barrel Input
Media/Memory Card Slot	Single Slot: SD/SDHC/SDXC (UHS-I)
Wi-Fi	None

Video Format	SDI (10-Bit 4:2:2 YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 HDMI (10-Bit) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94
Timecode Support	Yes

Pulldown Conversion	None
Camera Trigger	None
Pre-Roll Record	None
Encoding Formats	Up to 1920 x 1080 ProRes 422, 422 HQ, LT, Proxy 10-Bit 4:2:2 at up to 60 fps DNxHD 145, 145 MXF, 220x, 220x MXF, 45, 45 MXF 10-Bit 4:2:2 at up to 60 fps
Maximum Audio Tracks	16
Metadata Tagging	Yes
Phantom Power	None

DC Input Power	12 VDC
Built-In Battery	None
Battery Type	2 x L-Series
