AJA 12GM 12G-SDI to / from SDI Muxer / DeMuxer

Name: AJA 12GM 12G-SDI to / from SDI Muxer / DeMuxer
Brand: AJA
SKU: AJA-12GM
Price: 2105.01 AUD
Availability: InStock

AJA | SKU: AJA-12GM | Barcode: 892448000601

$2,105.01 $2,370.01

Tax included Shipping calculated at checkout.

Videocraft Melbourne

Out of Stock. Backorder available

148 Highbury Road, Burwood VIC 3125
03 9273 7500

Videocraft Sydney

Out of Stock. Backorder available

20/39 Herbert Street, St Leonards NSW 2065
02 9462 8600

Shipping Options

Shipping Methods & Estimated Delivery Times

Australia Post Express Shipping – 1–2 business days within the same state, 1–3 business days interstate.
Australia Post Regular Shipping – 2–4 business days within the same state, 3–6 business days interstate.
StarTrack Express – 2–7 business days, depending on location.
StarTrack Premium – Next business day between capital cities and major metro areas.
Local On-Demand Delivery (Small Orders Only) – Same-day delivery within Melbourne & Sydney metro areas using Uber and Yello.

Shipping Cut-Off Time: Orders placed before 1 PM will typically be processed and dispatched the same day.

Please note: **We ship orders as a single shipment. If your order contains items with different availability, your order will be held until all items are ready to be shipped together.** Keep this in mind when placing your order. If this is an issue, please contact us at websales@videocraft.com.au to arrange for alternative shipping options.

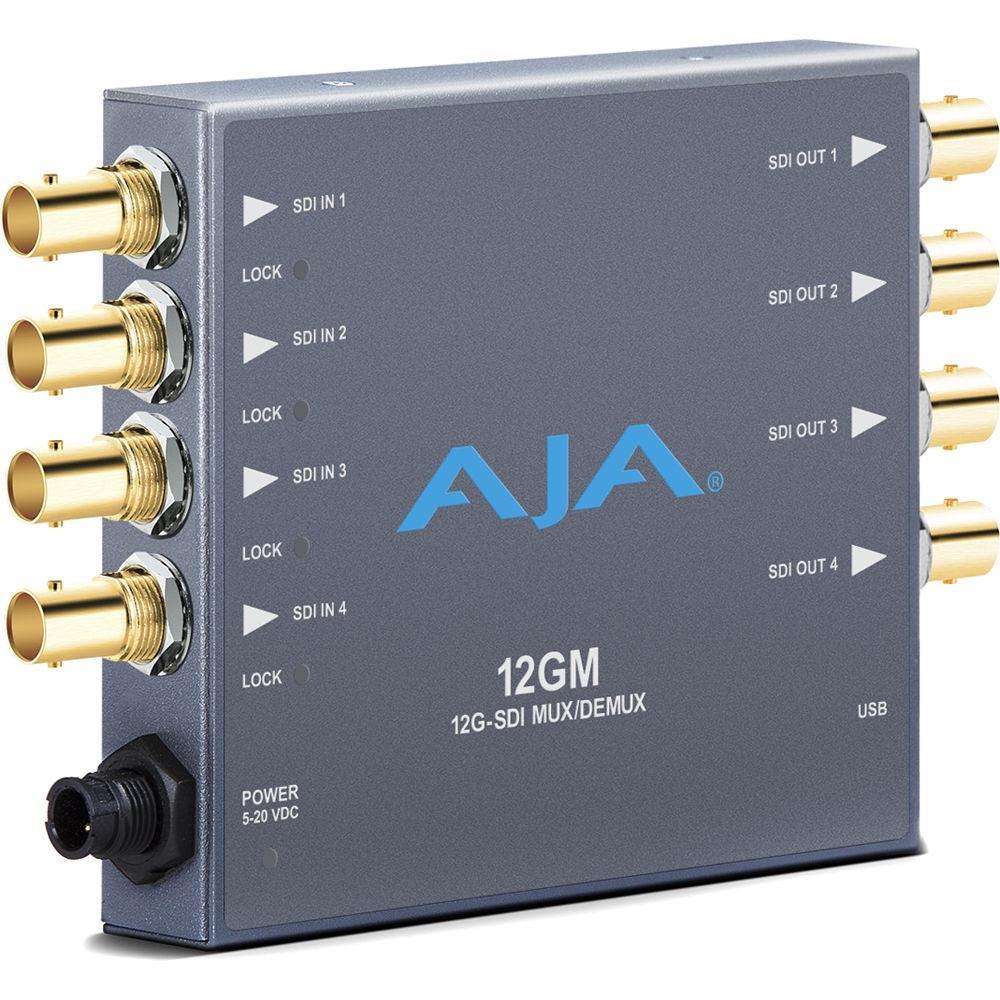

The AJA 12GM 12G-SDI to / from SDI Muxer / DeMuxer is an SDI standard converter that supports resolutions up to DCI 4K. Quad 3G-SDI can be converted into 12G and vice-versa. Multi-link signals can now be combined to run over fewer cables, and newer standards can now be backward compatible with legacy SDI gear. All signals are re-clocked and amplified to ensure signal integrity over long cable runs.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Inputs	4 x BNC, SD/HD/3G/6G/12G-SDI
Outputs	4 x BNC, SD/HD/3G/6G/12G-SDI
Other I/O	1 x USB mini-B
Resolution Support	4096 x 2160 23.98/24/25/29.97/30/50/59.94/60 3840 x 2160 23.98/24/25/29.97/30/50/59.94/60 2048 x 1080 23.98/24/25/29.97/30/50/59.94/60 1080p 23.98/24/25/29.97/30/50/59.94/60 1080i 25/29.97/30 720p 50/59.94/60 NTSC PAL
SDI Standards	SMPTE-259/292/424/2081/2082
Cable Equalization	12G: 295' / 90 m 6G: 401' / 125 m 3G: 525' / 160 m 1.5G: 656' / 200 m 270M: 1542' / 470 m (tested with Belden 1694 coax cable)
Chroma Subsampling	4:2:2 YCbCr, 4:4:4 YCbCr/RGB
Color Depth	8/10-bit
Audio Support	16-channels embedded 24-bit audio
Power	Input: 5-20 VDC Consumption: 12 W
Environmental	Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -40 to 140°F / -40 to 60°C Humidity: 10-90%, non-condensing Operating Altitude: < 10,000' / 3000 m
Dimensions	5.8 x 4 x 0.9" / 14.6 x 10.2 x 2.3 cm
