Yamaha TF1 Digital Mixing Console

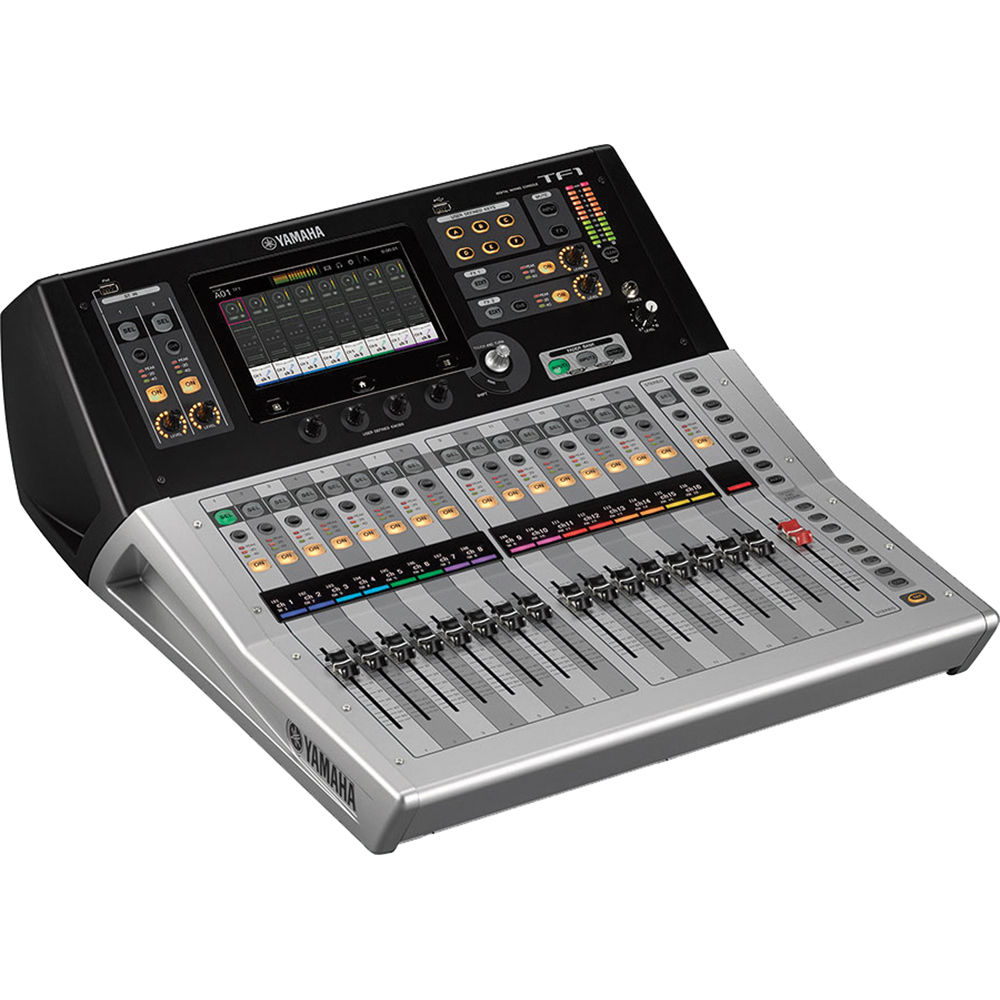

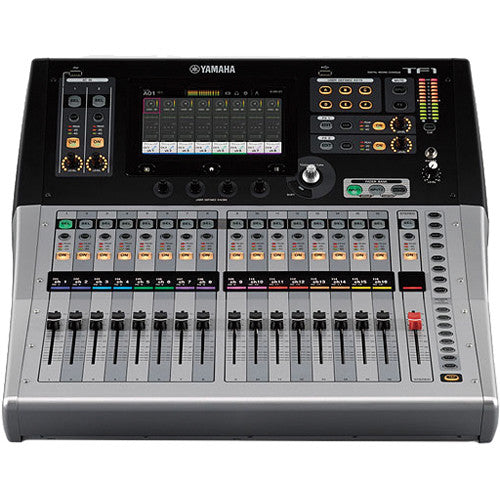

The Yamaha TF1 Digital Mixing Console is a rack-mountable digital audio mixing console with a touchscreen display, and 17 motorized faders, and is expandable up to 40 input channels by adding the optional Tio1608-D I/O rack.
Ideal for many live sound reinforcement scenarios, the TF1 can also be used for live recording, offering 34 x 34 channel digital recording and playback via USB 2.0 using a computer and your preferred DAW software, and 2 x 2 channel recording and playback using any USB storage device. The TF1 console itself provides 16 analog XLR/TRS combo mic/line inputs with 48V phantom power, as well as 2 analog RCA stereo line inputs, and 16 analog XLR outputs. Each combo input channel features a recallable D-PRE microphone preamp, as well as EQ and two dynamics processors. In addition, the console offers eight powerful FX processors with patches ranging from reverb and delay to modulation effects such as flanger and chorus, to utility processing like 3-band multi-band compression. The TF1 ships with Steinberg's Nuendo Live for advanced multi-tracking and virtual sound check capabilities.
- 17 motor faders (16 channels + 1 master)
- 40 input mixing channels (32 mono + 2 stereo + 2 return)
- 20 Aux buses (8 mono + 6 stereo) + Stereo + Sub
- 8 DCA groups with Roll-out

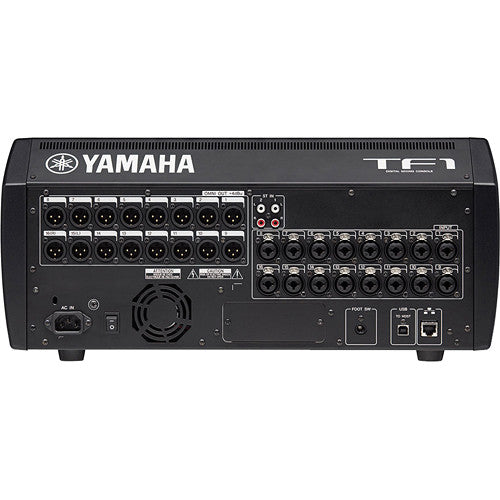

- 16 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
- 16 analog XLR outputs
- 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
- Download information for CUBASE AI DAW software
- Optional rackmount kit
- 1 expansion slot for optional NY64-D Dante audio interface card
- Optional Tio1608-D Dante equipped I/O to rack with 16 microphone/line inputs and 8 line outputs
