Blackmagic Design Video Assist 12G HDR Monitor | Recorder - 7 Inch

The Blackmagic Design Video Assist 7” 12G HDR is a professional monitoring and recording solution for SDI or HDMI cameras, offering a 1920 x 1200 touchscreen with 2500 nits brightness, 12G-SDI and HDMI inputs, dual UHS-II SD card slots, and USB-C for external recording. It supports HDR workflows, Blackmagic RAW (on supported cameras), and records in 10-bit ProRes and DNx formats for seamless post-production compatibility.

Advanced Monitoring and Recording

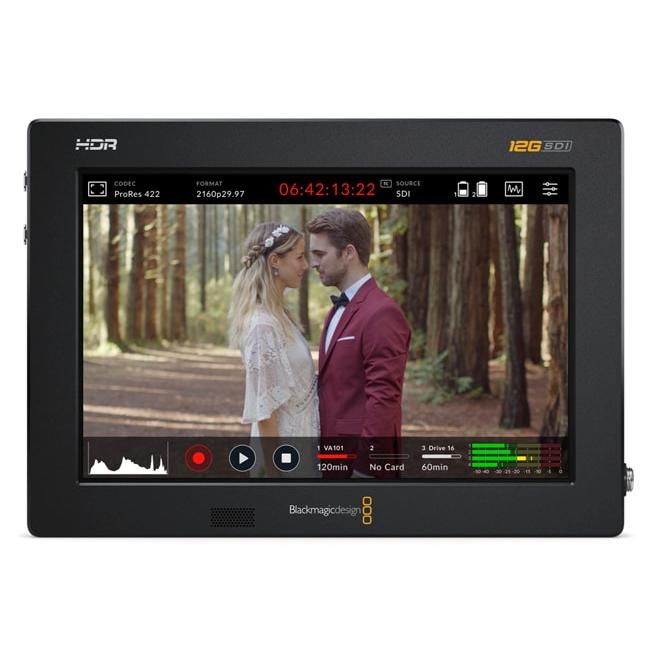

Ideal for digital cinema and broadcast work, the 7” display provides accurate HDR image evaluation with support for 3D LUTs, waveform, vector, and histogram scopes. On-screen overlays include audio meters, timecode, and recording status, helping operators capture precise and compliant footage.

Flexible Inputs and Formats

Supports both HDMI and 12G-SDI video sources, allowing integration with DSLRs, mirrorless, and professional broadcast cameras. Record in DCI 4K, UHD 4K, 2K, and HD resolutions with 10-bit 4:2:2 colour. Supported formats include Apple ProRes (HQ, 422, LT, Proxy), DNxHD/DNxHR, and Blackmagic RAW for select cameras.

Dual SD Card Slots and USB-C Recording

Two high-speed UHS-II SD card slots enable uninterrupted recording by automatically switching to the second card when the first is full. The USB-C port supports recording directly to external flash drives or SSDs, useful for longer or higher bitrate shoots.

Professional Audio Features

Includes two balanced mini-XLR inputs with 48 V phantom power, supporting high-quality 24-bit 48 kHz recording. Embedded audio over SDI and HDMI can also be monitored via the 3.5 mm headphone jack or on-screen meters.

Touchscreen Interface and Metadata

Navigate settings, scopes, and overlays via a responsive capacitive touchscreen. The digital slate allows direct metadata entry, with features like auto-incrementing take and reel numbers. Ideal for fast-paced shoots and streamlined post workflows.

Live Streaming via USB Webcam Output

With firmware v3.3, the device acts as a 1080p USB webcam, outputting live video to compatible streaming software like OBS, Skype, and Zoom, without additional converters.

Power and Build

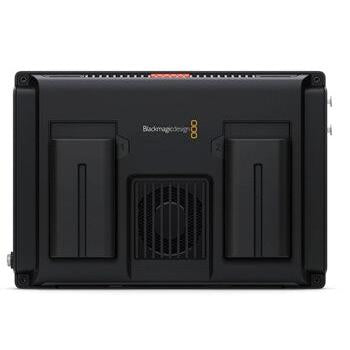

Powered via dual NPF batteries or the included 12 V DC adapter with locking connector. The compact form factor and rear tally light make it practical for rig-mounted or portable use in production environments.

Use Cases

Suitable for field recording, broadcast mastering, camera viewfinding, HDR monitoring, ISO recording, or clip playback. It upgrades the recording and monitoring capabilities of any SDI or HDMI camera setup with professional-grade tools.
