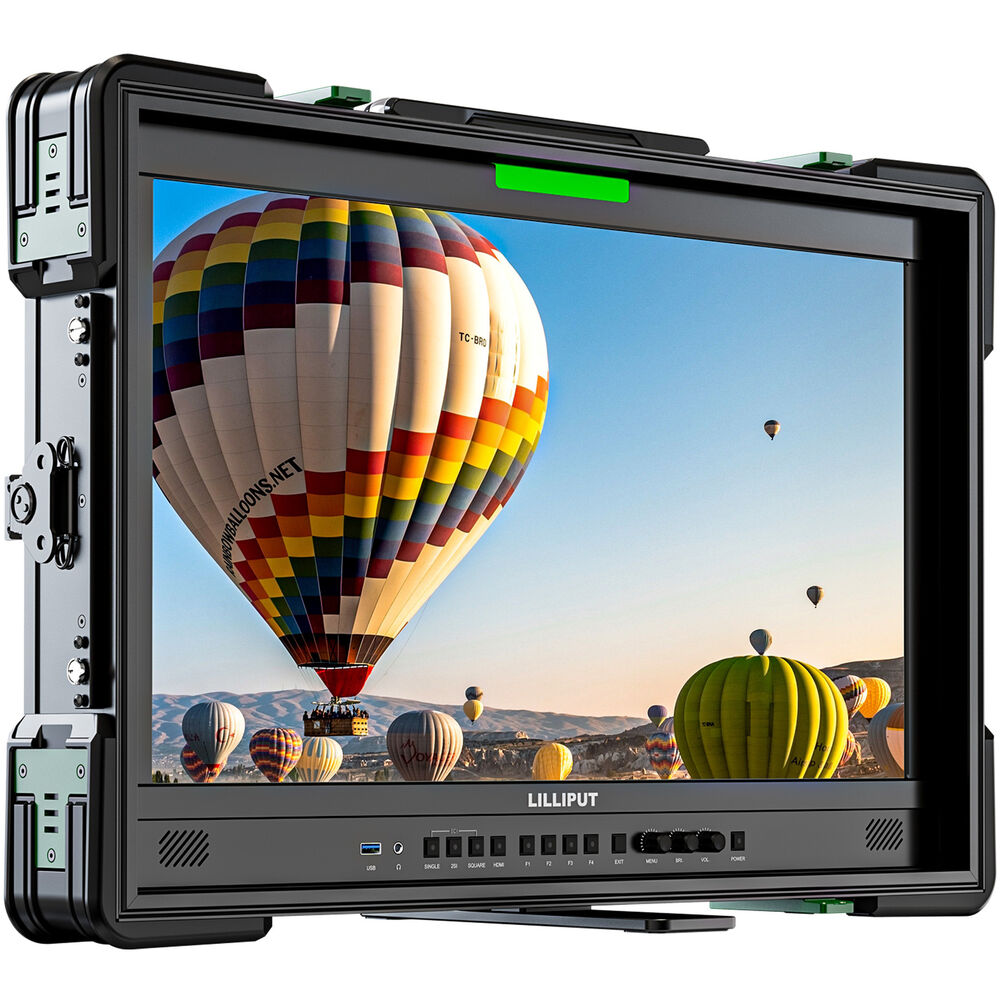

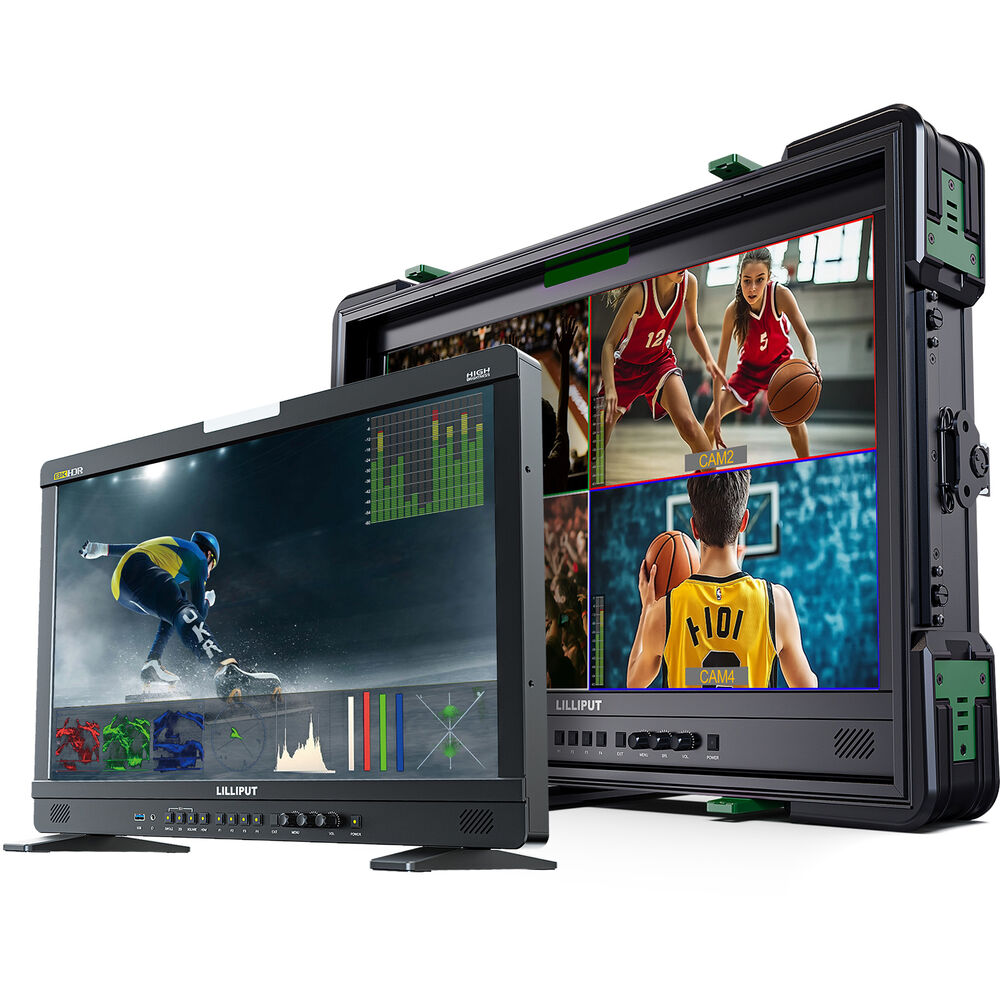

Lilliput UQ23 23.8" 12G-SDI/HDMI High-Brightness Broadcast Studio Monitor

The Lilliput UQ23 23.8" 12G-SDI/HDMI High-Brightness Broadcast Studio Monitor offers a 3840 x 2160 resolution with support for up to 8K60 video signals. Featuring a 1200 cd/m² brightness and V-mount battery plate, it is designed for both studio and field use. Quad-Split Multiview allows custom four-screen layouts from HDMI, 12G-SDI, and SFP+ inputs for versatile monitoring.

Daylight Viewable Display

The UQ23 features a high-brightness panel rated at 1200 cd/m², making it suitable for use in bright environments including outdoor shoots. Its HDR support covers both HLG and PQ protocols, allowing you to accurately preview footage with extended dynamic range. This ensures you can evaluate highlights and shadows clearly, even under direct sunlight, reducing the need for guesswork when working on location.

A+ Grade Display and Colour Accuracy

This monitor uses an A+ grade IPS panel with a native 3840 x 2160 resolution and a colour depth of 1.07 billion colours. It supports multiple colour spaces including BT.709, BT.2020, DCI-P3, and NTSC, which can be switched quickly using a precision colour calibrator. The ability to load custom 3D LUTs means you can match the monitor’s output to your camera profile or grading workflow, ensuring consistent and reliable colour reproduction throughout your production.

Expansive Connectivity Options

The UQ23 supports a wide range of professional video inputs to handle complex workflows. It includes four 12G-SDI inputs that accommodate both single-link and quad-link signals up to 8K60, plus a 12G SFP+ fibre connection for up to 4K60 video transmission. HDMI 2.1 input and loop output provide additional flexibility for integrating with various devices. This broad connectivity makes the monitor adaptable for live broadcast, studio, and field production setups.

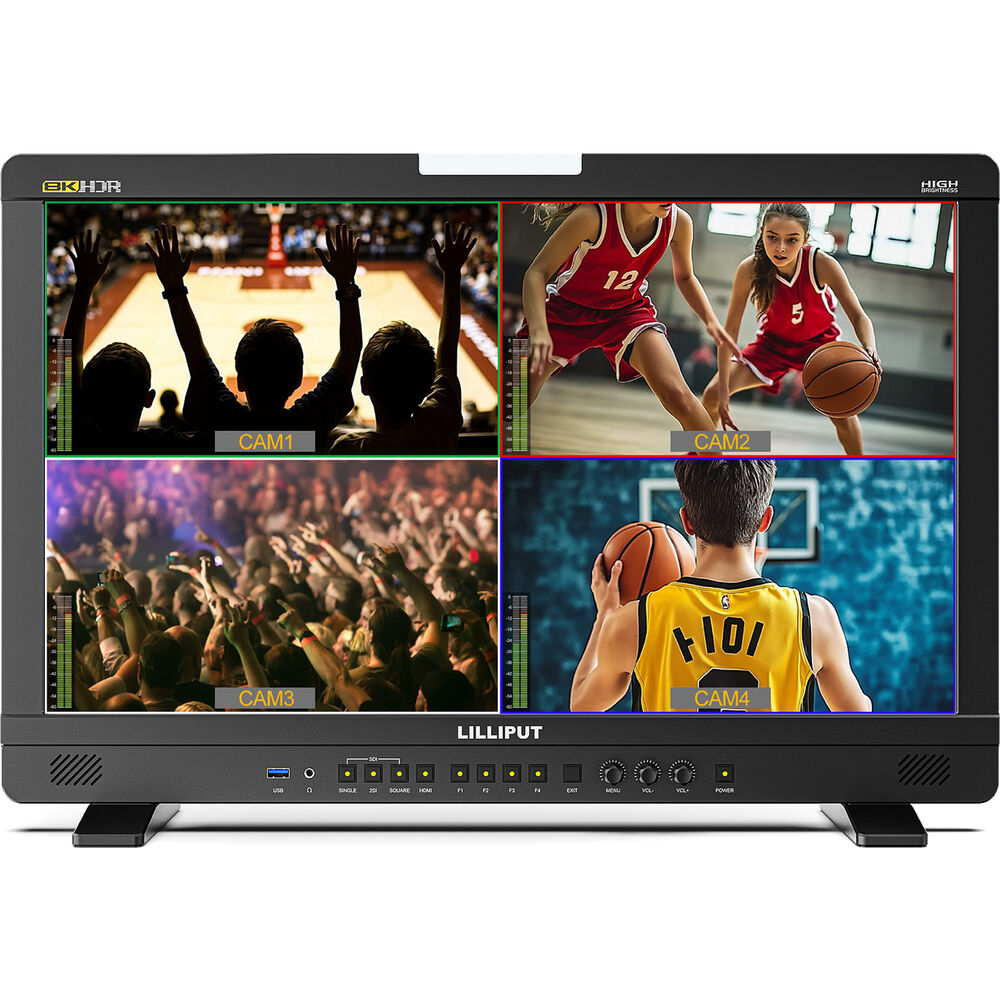

Quad-Split Multiview Functionality

With Quad-Split Multiview mode, you can display up to four input sources simultaneously on the screen. This is especially useful for live production environments where monitoring multiple camera feeds or video sources at once is essential. The four function buttons on the front panel allow quick switching between inputs, with coloured borders distinguishing each feed to reduce confusion during fast-paced shoots.

Intuitive User Interface and Remote Control

The user interface is designed for efficiency, featuring shortcut buttons and knobs that provide quick access to commonly used settings. The menu system is organised into three levels, helping you navigate options without interrupting your workflow. Additionally, the monitor supports remote control via a dedicated app and RS-422 I/O ports, enabling you to synchronise multiple monitors or adjust settings remotely, which is valuable in multi-camera setups or when the monitor is mounted out of reach.

Power Flexibility with V-Mount Battery Plate

The built-in V-mount battery plate allows for convenient power options when working outside the studio. You can attach compatible V-mount batteries to power the monitor on location, avoiding reliance on mains power. A D-Tap to XLR cable is included to connect external power sources, providing versatility for extended shoots where mobility and uninterrupted power are critical.
