Atomos Ninja TX 5.2 Inch HDMI/SDI HDR Camera to Cloud Monitor and R...

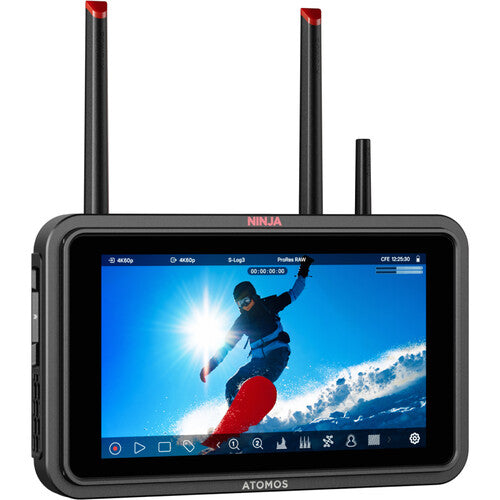

The Atomos Ninja TX is a 5.2" on-camera monitor and recorder with HDMI 2.0 and 12G-SDI input/output, 8K30 RAW recording, built-in Camera to Cloud upload, and a 1500 cd/m² HDR touchscreen. It records to CFexpress Type B or USB-C and includes NDI/HX3, ProRes RAW, DNx, and H.265 codecs. With wireless timecode sync, cloud integration, and advanced monitoring tools, it streamlines modern production workflows.
High-Brightness Display
The 5.2" 1920 x 1080 IPS touchscreen delivers 1500 cd/m² brightness, HDR support, Rec. 709 colour gamut, and calibration support, ensuring accurate monitoring even in daylight.
Camera to Cloud Workflow
Directly upload footage to ATOMOSphere, Frame.io, or Dropbox. Built-in tools remove the need for extra hardware, saving time and enabling faster collaboration.

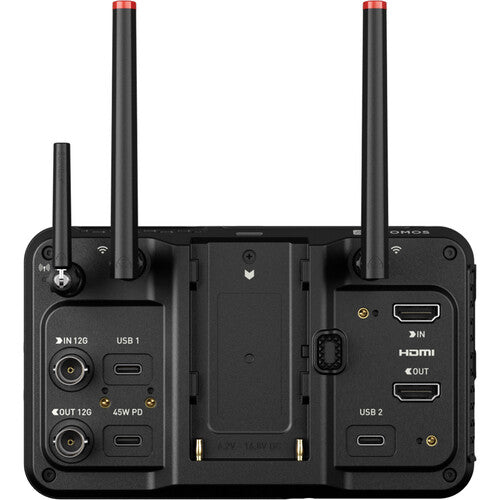

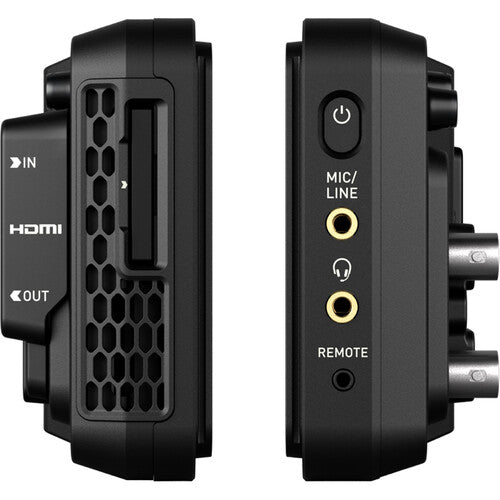

Flexible Connectivity
- HDMI 8K30, 4K60, and 1080p120 input/output
- 12G-SDI input/output with loop-through
- Cross conversion between HDMI and SDI
Advanced Recording Options
- CFexpress Type B slot and dual USB-C outputs
- Supports ProRes RAW, DNx, and H.265 codecs
- PCIe/NVMe protocols for futureproof transfer speeds
Wireless and Remote Control
Integrated AtomX Connect adds Wi-Fi streaming, NDI source/receiver functionality, and RF/Bluetooth AirGlu for timecode sync across multiple devices. Remote control is available via Bluetooth, RF, or LANC.
Monitoring and Workflow Tools
- Focus peaking, zebras, false colour, frame guides
- Waveform, RGB parade, vectorscope, LUT support
- Anamorphic de-squeeze for correct monitoring
Power and Compatibility
Runs on NP-F L-series batteries, DC via eliminator, or USB-C PD (30W). Supports major camera log formats from Sony, ARRI, Canon, RED, FUJIFILM, Nikon, JVC, and Panasonic with 3D LUT uploads.
