Beetek Single-Core LC HDMI1.4 Single-Mode Fibre extender + RJ45

Name: Beetek Single-Core LC HDMI1.4 Single-Mode Fibre extender + RJ45
Brand: Beetek Technology
SKU: BEE-M1-HDMI1.4
Price: 1672.00 AUD
Availability: InStock

Beetek Technology | SKU: BEE-M1-HDMI1.4 | Barcode: 880104

$1,672.00

Tax included

Store Availability

Melbourne (Burwood) Out of Stock

▼

Out of Stock. Place a Backorder

📍 148 Highbury Road, Burwood, VIC 3125

☎ 03 9273 7500 • Get directions

Sydney (St Leonards) Out of Stock

▼

Out of Stock. Place a Backorder

📍 20/39 Herbert Street, St Leonards, NSW 2065

☎ 02 9462 8600 • Get directions

Shipping Options

Shipping Methods & Estimated Delivery Times

Australia Post Express Shipping – 1–2 business days within the same state, 1–3 business days interstate.
Australia Post Regular Shipping – 2–4 business days within the same state, 3–6 business days interstate.
StarTrack Express – 2–7 business days, depending on location.
StarTrack Premium – Next business day between capital cities and major metro areas.
Local On-Demand Delivery (Small Orders Only) – Same-day delivery within Melbourne & Sydney metro areas using Uber and Yello.

Shipping Cut-Off Time: Orders placed before 1 PM will typically be processed and dispatched the same day.

Please note: **We ship orders as a single shipment. If your order contains items with different availability, your order will be held until all items are ready to be shipped together.** Keep this in mind when placing your order. If this is an issue, please contact us at websales@videocraft.com.au to arrange for alternative shipping options.

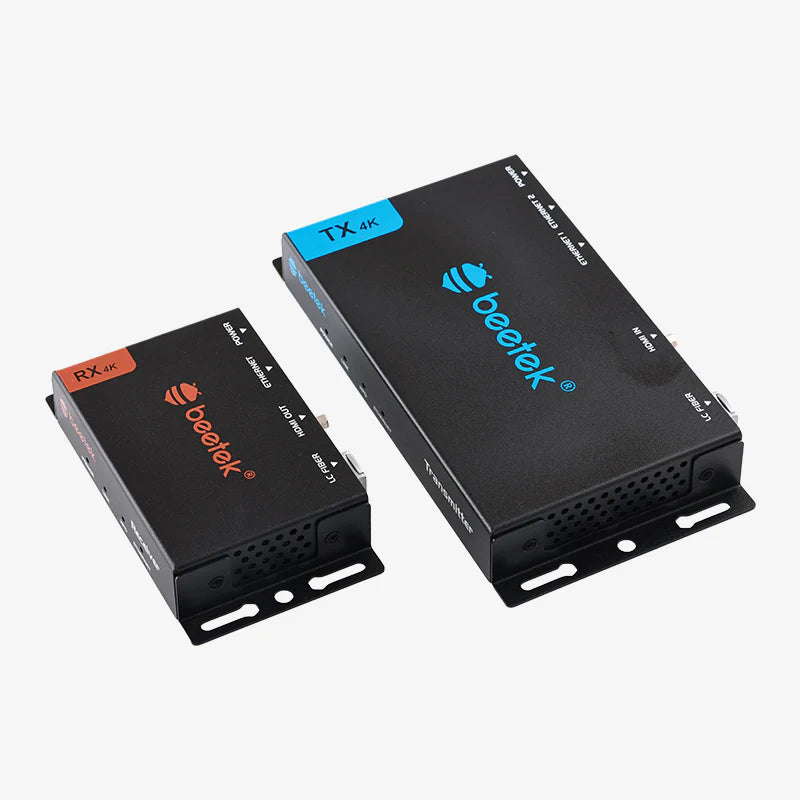

The Beetek Single-Core LC HDMI1.4 Single-Mode Fibre extender transmits 4K@60Hz 4:2:0 video, audio, ethernet, RS232, and IR signals up to 300 metres over a single LC fibre optic cable—ideal for rental events, corporate installs, broadcast studios, and even home theatre setups where long HDMI runs aren't practical. It supports HDCP 2.2, Audio ARC, 3D, and bi-directional control passthrough, making it useful for everything from live production to surveillance systems. Built with improved ESD protection.

Product Name	One core single mode HDMI1.4 Fiber extender +RJ45
Model	M1-HDMI1.4
Brand	Beetek
Signal	HDMI 1.4

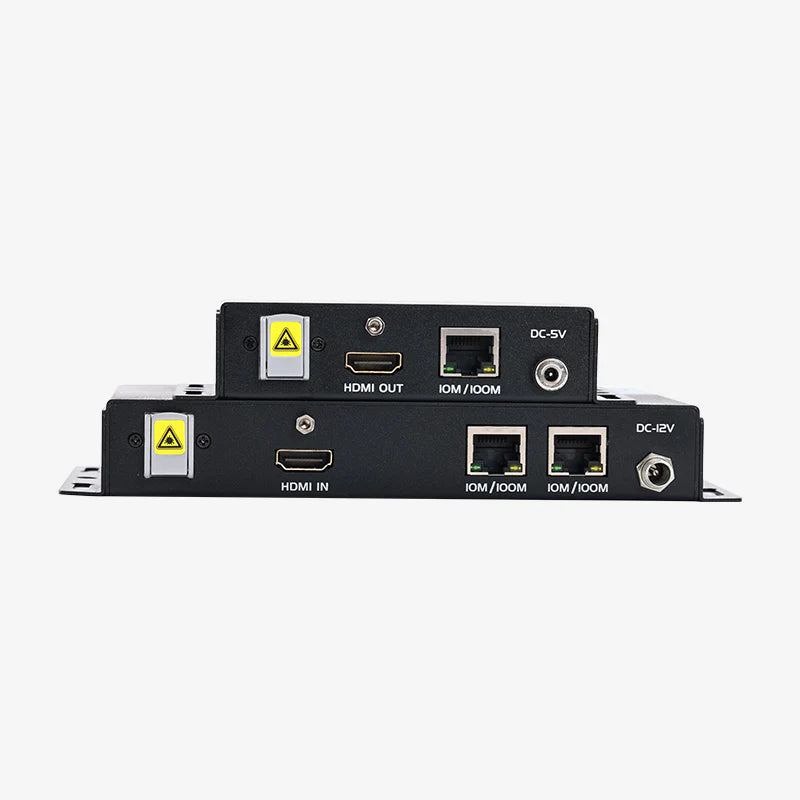

Input Connector	TX ：HDMI Type A Female, RJ45 *2 ; RX：Single-core LC

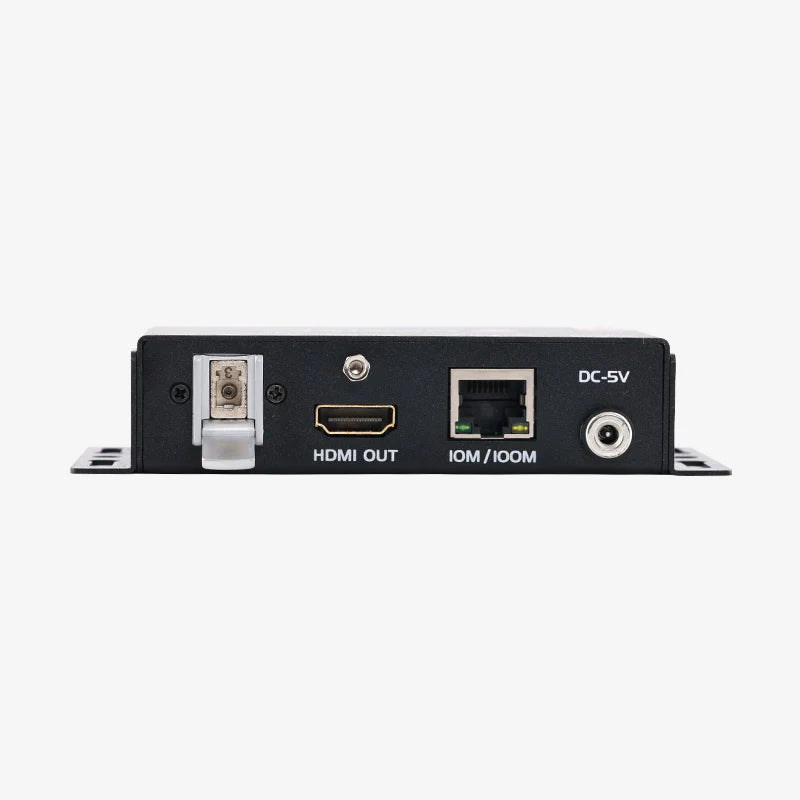

Output Connector	TX ：Single-core LC; RX： HDMI Type A Female, RJ45 *2
Locking HDMI Port	Yes
Fiber Interface Dust Prevention	Yes
Fiber Type	Single-mode G657.A1
Indicator LED	Signal, Power, Network port and Hot-plug 4 way indicator
Locking power connector	Yes
Power Consumption	TX:DC 12V 2A RX:DC 5V
Ambient Temp	-20°C ~ 70°C
Material	Metal mold
Dimensions	TX：185 95 26mm； RX：125 70 26mm
Weight	TX : 0.53kg ; RX: 0.35kg
Package Dimensions	270 157 136mm
Packaging Weight	1.3kg
DDC	Yes
Ethernet	Supports bidirectional 100M Ethernet
HDMI Audio	Yes
3D	Yes
CEC	Yes
ARC	Yes
HDCP	Yes
XvYCC Color Space	Yes
Optical Module	112G ，22.5G 3-channel single-mode optical module
Technical Characteristics	Circuit Multiplexing SerDes Technology, 3-wave CWDM Technology
Optical module life	100,000 Hours
Resolution	3840x2160@30Hz
Transmission Distance	Single-mode 300M
Clock Bandwidth	340MHz *3
Transmission Speed	10.2Gbps
Balancing Chip	Automatic equalization
Reclocking	Yes
ESD Protection	Yes
Hot Plug	Yes
Delay	Zero-frame
Compression	None
Sampling Rate	Bandwidth Range: 8~16bit
Sampling Ratio	RGB 4:4:4 , YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
