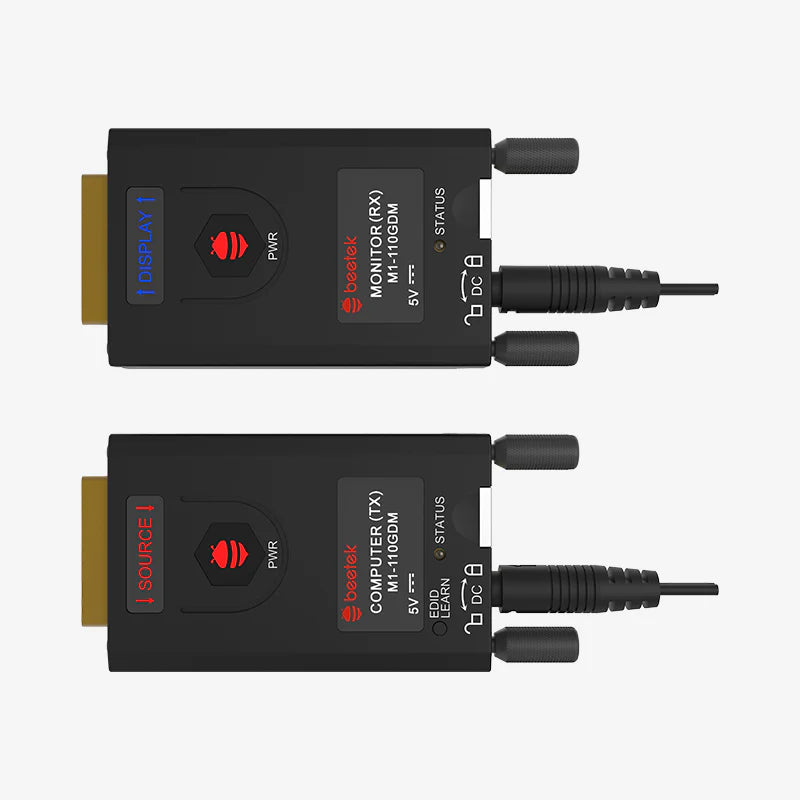

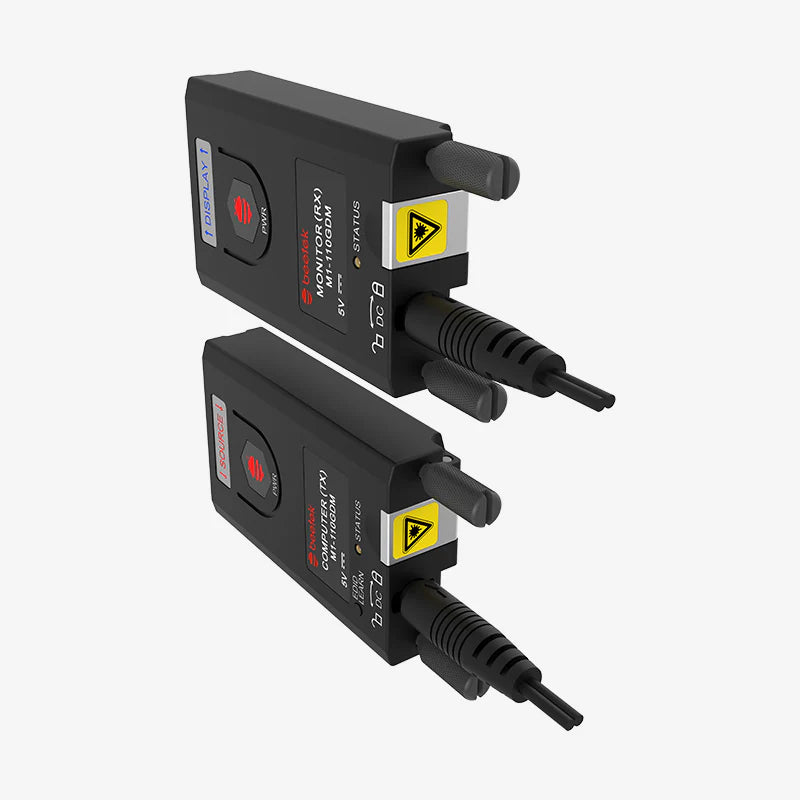

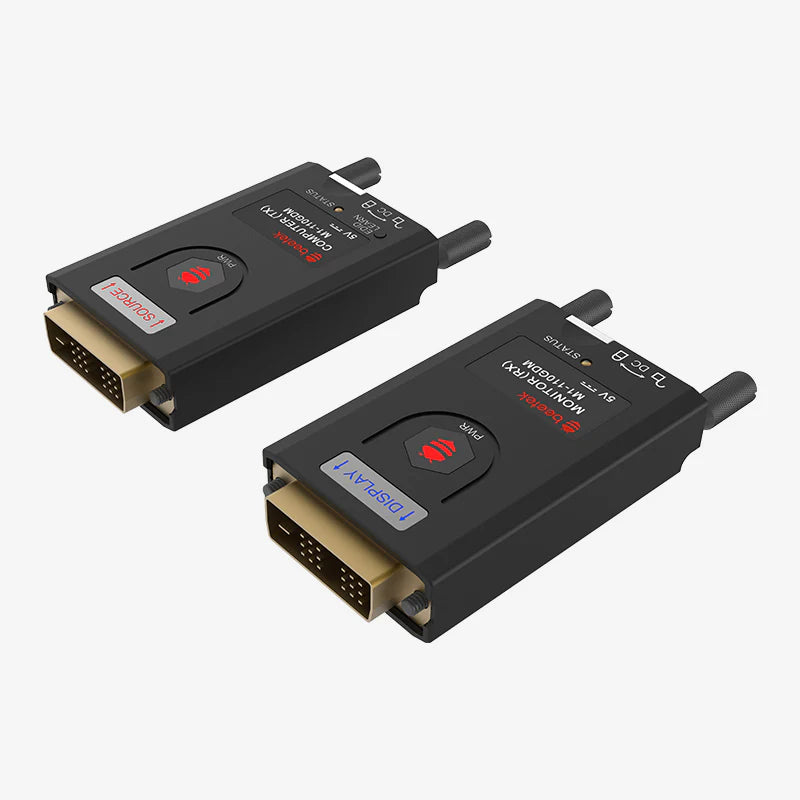

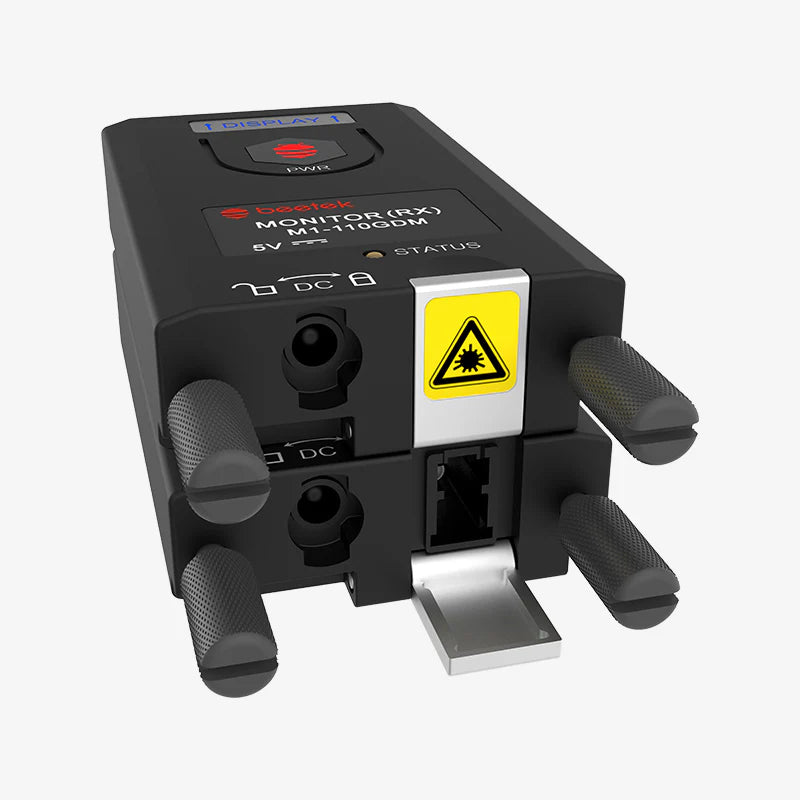

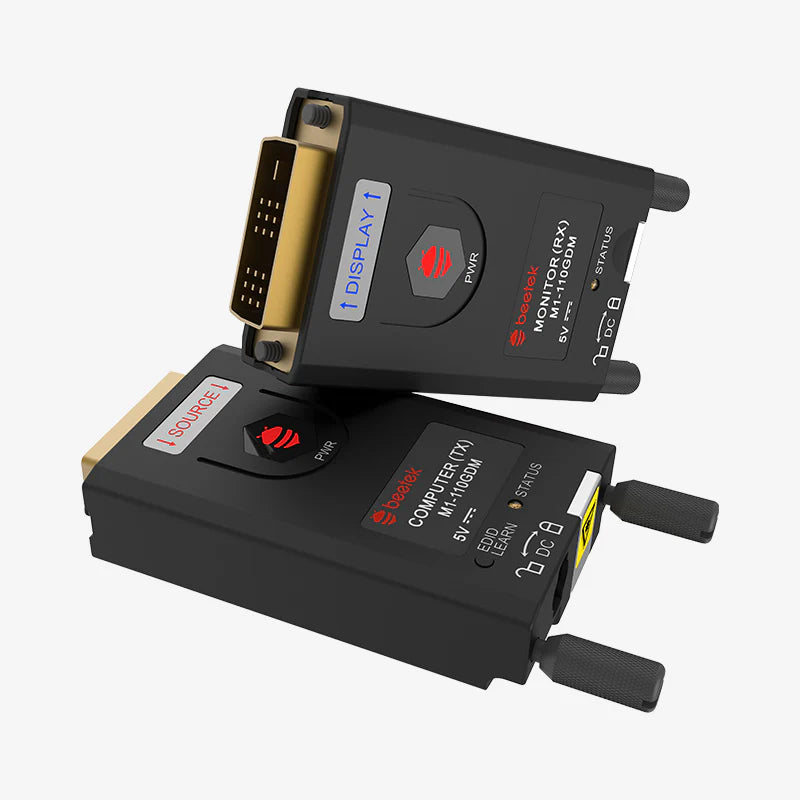

Beetek M1-110GDM One-core LC Multi-mode DVI Fiber Optic Extender

Name: Beetek M1-110GDM One-core LC Multi-mode DVI Fiber Optic Extender
Brand: Beetek Technology
SKU: BEE-M1-110GDM
Price: 1650.00 AUD
Availability: InStock

Beetek Technology | SKU: BEE-M1-110GDM | Barcode: 990104

$1,650.00

Tax included

Store Availability

Melbourne (Burwood) Out of Stock

▼

Out of Stock. Place a Backorder

📍 148 Highbury Road, Burwood, VIC 3125

☎ 03 9273 7500 • Get directions

Sydney (St Leonards) Out of Stock

▼

Out of Stock. Place a Backorder

📍 20/39 Herbert Street, St Leonards, NSW 2065

☎ 02 9462 8600 • Get directions

Shipping Options

Shipping Methods & Estimated Delivery Times

Australia Post Express Shipping – 1–2 business days within the same state, 1–3 business days interstate.
Australia Post Regular Shipping – 2–4 business days within the same state, 3–6 business days interstate.
StarTrack Express – 2–7 business days, depending on location.
StarTrack Premium – Next business day between capital cities and major metro areas.
Local On-Demand Delivery (Small Orders Only) – Same-day delivery within Melbourne & Sydney metro areas using Uber and Yello.

Shipping Cut-Off Time: Orders placed before 1 PM will typically be processed and dispatched the same day.

Please note: **We ship orders as a single shipment. If your order contains items with different availability, your order will be held until all items are ready to be shipped together.** Keep this in mind when placing your order. If this is an issue, please contact us at websales@videocraft.com.au to arrange for alternative shipping options.

The Beetek M1-110GDM One-core LC Multi-mode DVI Fiber Optic Extender transmits DVI and HDMI 1.4 video up to 500 metres over a single OM3 fibre cable, supporting resolutions up to 4K@30 4:4:4 with embedded audio. Built for rental, staging, and live events, it delivers uncompressed, zero-latency transmission at 10.2 Gbps with pixel-perfect accuracy. Features include EDID management, 40 dB input balancing to compensate for source cable loss, and a ruggedised dust-proof enclosure.

Product Name	One core multi-mode DVI fiber extender
Model	M1-110GDM
Brand	Beetek
Signal	HDMI 1.4
Input Connector	TX: DVI 18＋1 Male RX: Single-core LC
Output Connector	TX: Single-core LC RX: DVI 18＋1 Male
Rear Long Screw	Yes
Gold plate Connector	Casing: 3μ; Pin: 15μ
Fiber Interface Dust Prevention	Yes
Fiber Type	Multi-mode OM3
Indicator LED	TX: Power, EDID; RX: Power, Signal
USB Power	Yes
Power from connector (TX)	Yes
Locking power connector	Yes
Power Consumption	DC 5V 1.0A
Ambient Temp	-20°C ~ 70°C
Material	Zinc alloy mold
Dimensions	TX/RX : 84 39 15mm
Weight	TX: 91g；RX: 91g
Package Dimensions	212 201 62mm
Packaging Weight	0.51kg
EDID Switch (TX)	Learn button
EDID Modes	EDID Learning and Internal
HDMI Audio	Yes
3D	Yes
XvYCC Color Space	Yes
Optical Module	1 * 12G Multi-mode Optical Module
Technical Characteristics	Circuit Multiplexing SerDes Technology
Fiber module life	100,000 hours
Resolution	3840x2160@30Hz
Transmission Distance	500M
Clock Bandwidth	340MHz * 3
Transmission Speed	10.2Gbps
Balancing Chip	Automatic equalization
Reclocking	Yes
ESD Protection	Yes
Hot Plug	Yes
Delay	Zero-frame
Compression	None
Sampling Rate	Bandwidth Range: 8~16bit
Sampling Ratio	RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
