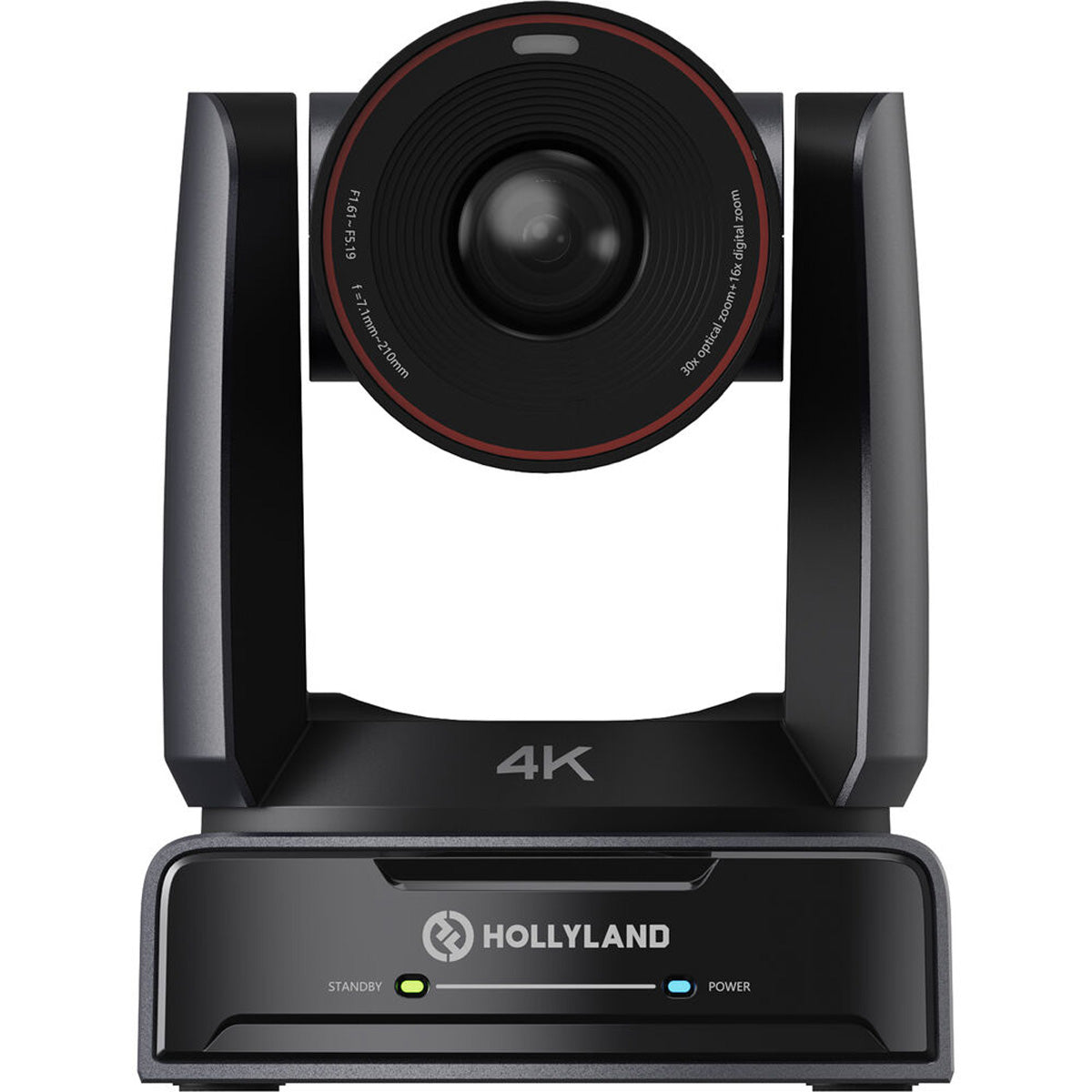

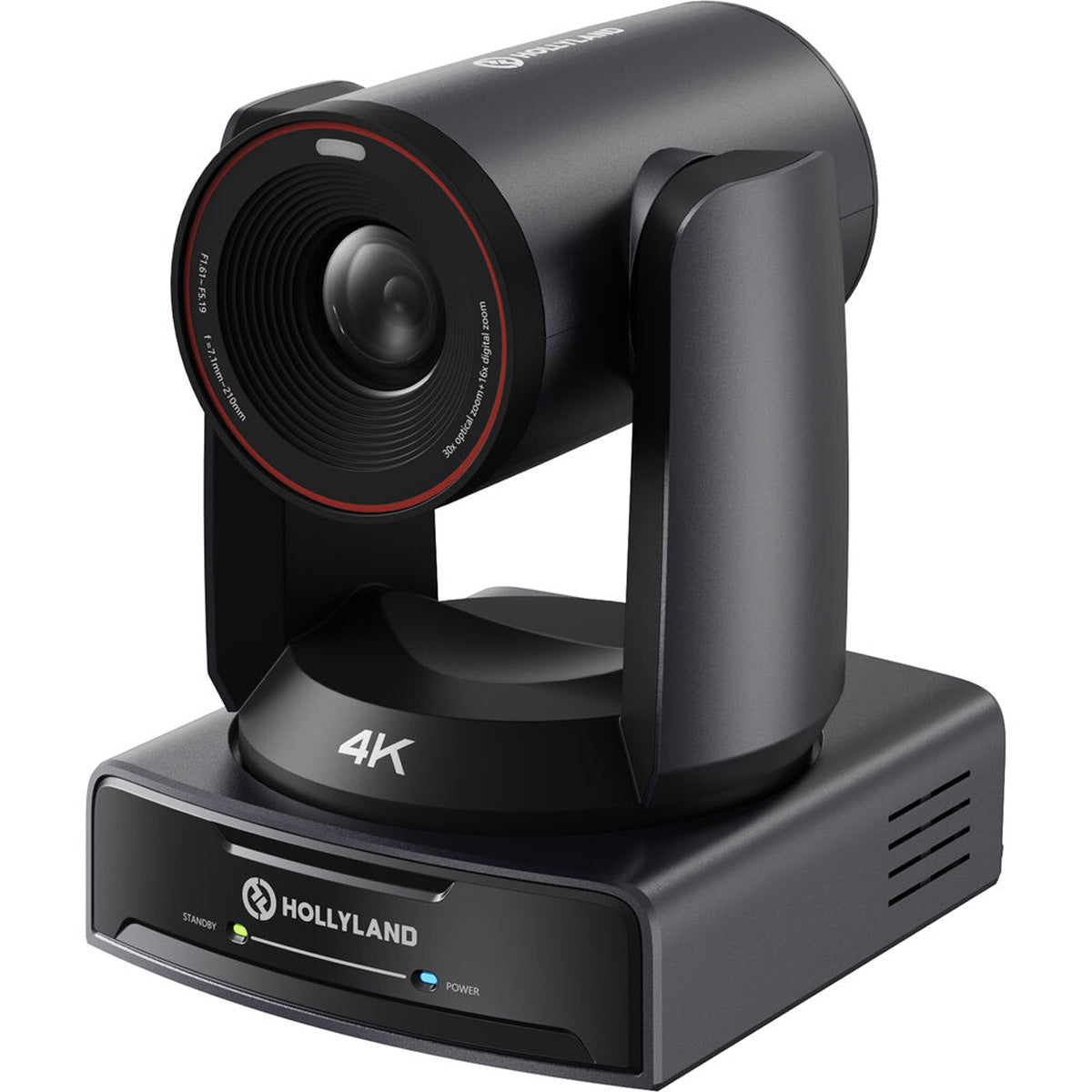

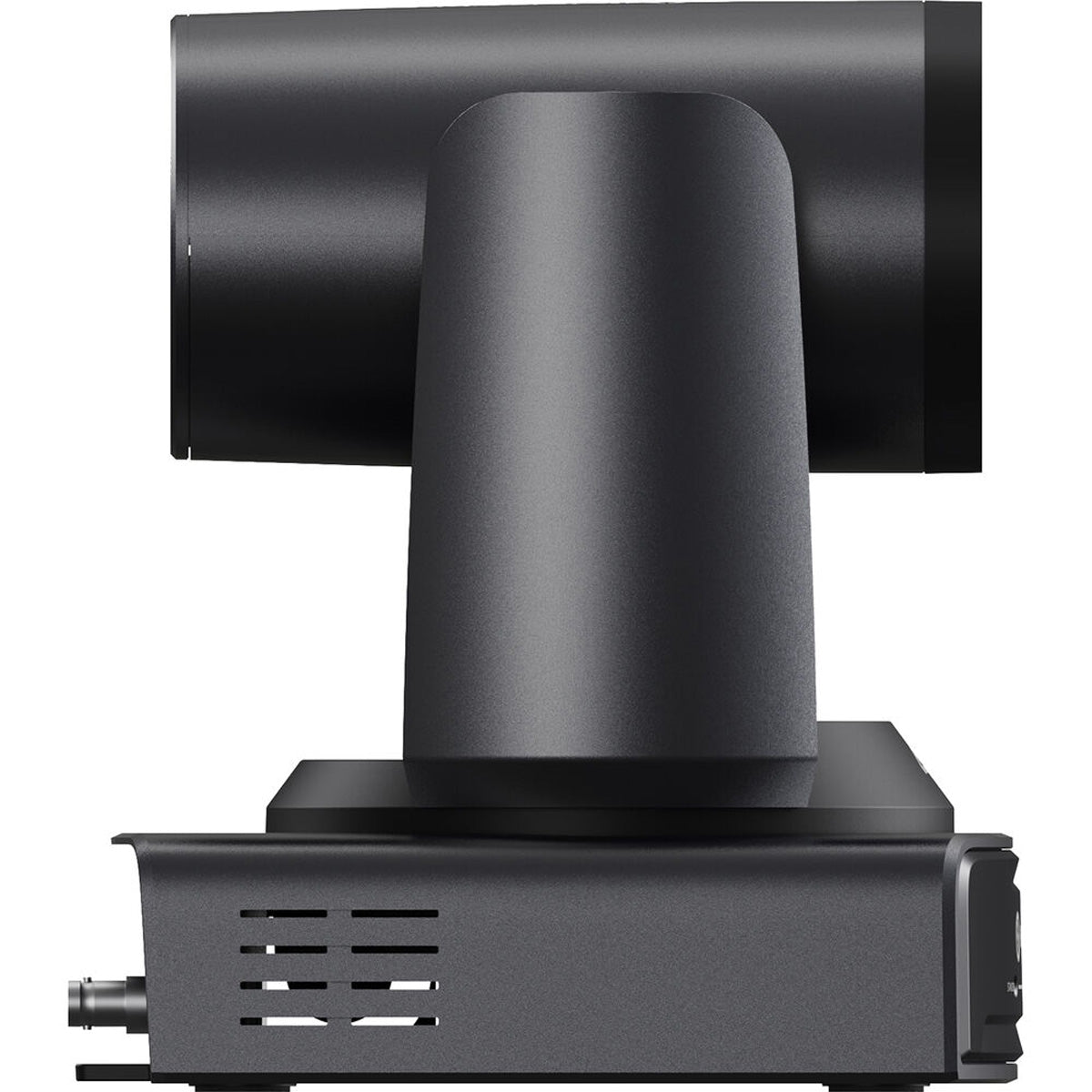

Hollyland Astra P1 UHD 4K PTZ Camera

Name: Hollyland Astra P1 UHD 4K PTZ Camera
Brand: Hollyland
SKU: HOL-ASTP1
Price: 3435.00 AUD
Availability: InStock

Hollyland | SKU: HOL-ASTP1 | Barcode: 6978683660351

$3,435.00 $3,519.00

Tax included

Store Availability

Melbourne (Burwood) Out of Stock

▼

Out of Stock. Place a Backorder

📍 148 Highbury Road, Burwood, VIC 3125

☎ 03 9273 7500 • Get directions

Sydney (St Leonards) Out of Stock

▼

Out of Stock. Place a Backorder

📍 20/39 Herbert Street, St Leonards, NSW 2065

☎ 02 9462 8600 • Get directions

Shipping Options

Shipping Methods & Estimated Delivery Times

Australia Post Express Shipping – 1–2 business days within the same state, 1–3 business days interstate.
Australia Post Regular Shipping – 2–4 business days within the same state, 3–6 business days interstate.
StarTrack Express – 2–7 business days, depending on location.
StarTrack Premium – Next business day between capital cities and major metro areas.
Local On-Demand Delivery (Small Orders Only) – Same-day delivery within Melbourne & Sydney metro areas using Uber and Yello.

Shipping Cut-Off Time: Orders placed before 1 PM will typically be processed and dispatched the same day.

Please note: **We ship orders as a single shipment. If your order contains items with different availability, your order will be held until all items are ready to be shipped together.** Keep this in mind when placing your order. If this is an issue, please contact us at websales@videocraft.com.au to arrange for alternative shipping options.

The Hollyland Astra P1 UHD 4K PTZ Camera combines UHD 4K video at up to 60 fps with a high-quality 8.42MP CMOS sensor and 30x optical zoom. AI auto tracking and face-detection auto exposure help keep subjects framed and consistently lit, while HDMI, 3G-SDI, USB, Ethernet and NDI HX3 support flexible live production workflows. Store up to 255 accurate camera presets for fast operation.

Video Encoding

The Astra P1 supports H.264, H.265 and MJPEG encoding, providing options for different streaming, recording and network bandwidth requirements.

PTZ Control

Control the camera remotely via RS232, RS485 or IP connections. It also supports optional PTZ controllers for dedicated camera operation during live productions.

Power over Ethernet

PoE+ support can provide power and network connectivity over a single Ethernet cable, helping simplify installation in studios, venues and presentation spaces.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Imaging
Image Sensor	1/1.8"-Type CMOS
Sensor Resolution	8.42 Megapixel
IR Cut Filter	No

Exposure Control
Shutter Speed	1/10000 to 1/30 Second
Precise Scan Rate Control	No
Signal-to-Noise Ratio	55 dB
Minimum Illumination	0.5 Lux at f/1.8 Aperture
Flip / Mirror Support	Image Flip, Mirror (Vertical)

Lens
Focal Length	7.1 to 210 mm
Max Optical Zoom	30x
Max Digital Zoom	16x
Field of View	Horizontal: 59.2 to 2.5° Vertical: 34.6 to 1.4°
Maximum Aperture	f/1.61 to 5.19

Video Capture
Video Output	via HDMI 3840 x 2160 at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080p at 29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 59.94/60.00 fps via SDI/BNC 1920 x 1080 at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 59.94/60.00 fps
Embedded Audio	HDMI/SDI
Internal Recording	No
Broadcast Output	NTSC/PAL
Supported Protocols	Video Streaming DHCP/HTTP/NDI/HX3/RTMP/RTMPS/RTSP/SRT/TCP
IP Streaming	320 x 240 to 3840 x 2160

Control
Presets	255
Pan/Tilt/Roll	Pan: 170° Tilt: 120° (30 to 90°)

Hollyland Astra P1 UHD 4K PTZ Camera

Shipping Options

Shipping Methods & Estimated Delivery Times

Payment & Security

Your cart

Company

More Information

Choose options

Interface

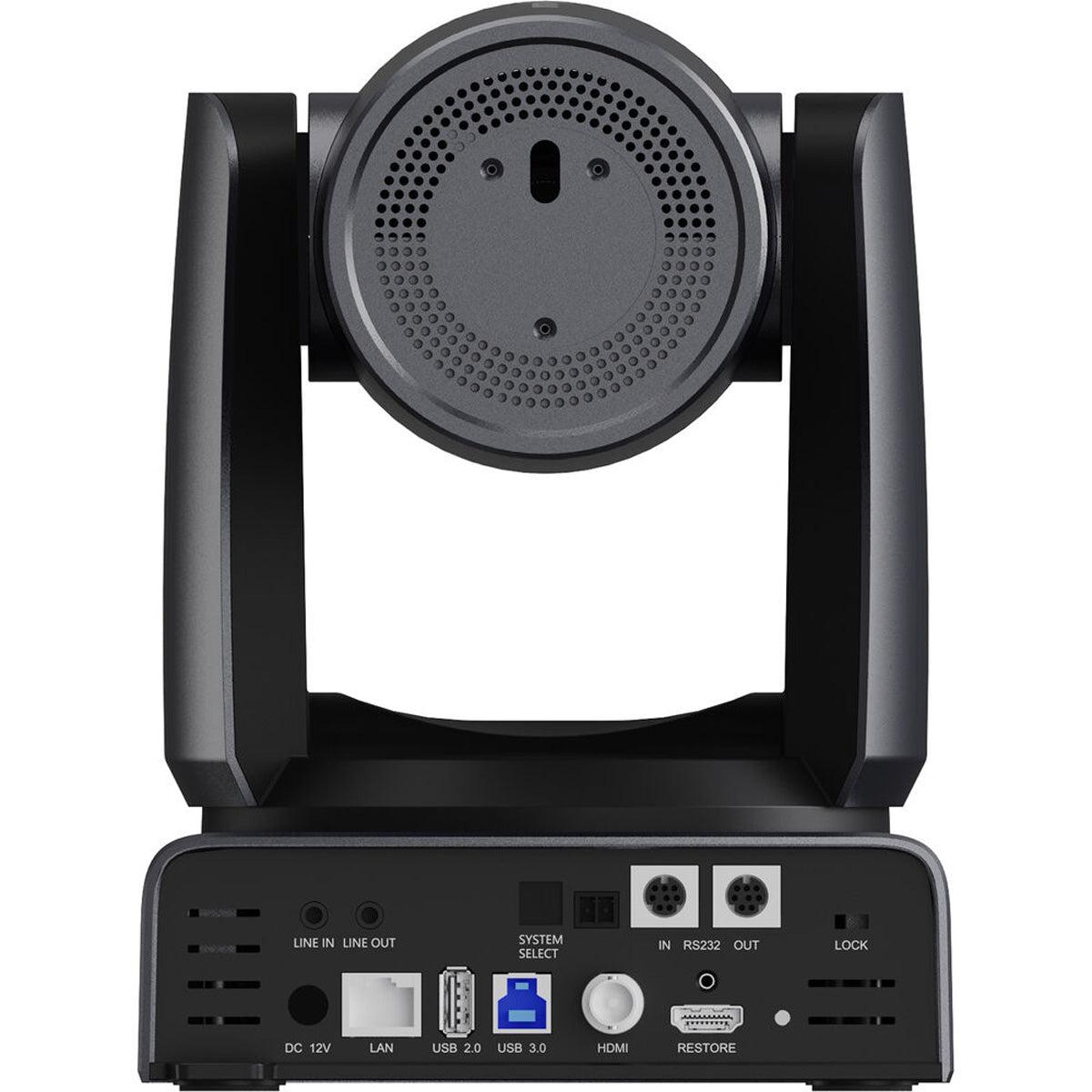

Video I/O	1x HDMI 2.0 Output 1x BNC (3G-SDI) Output
Audio I/O	1x 3.5 mm TRS Stereo Line Input 1x 3.5 mm TRS Stereo Line Output
Other I/O	1x Block 2-Pin (RS-485) 1x Mini-DIN 8-Pin (RS-232) 1x RJ45 (Ethernet) 1x USB-A (USB 2.0) 1x USB-B (USB 3.0)
Built-In Microphone	No
Built-In Speaker	No

Power
PoE Support	Yes: PoE+ 802.3at
Power I/O	1x Barrel (12VDC at 2 A)
Power Consumption	18 W

Environmental
Operating Conditions	0 to 40°C
Storage Conditions	-20 to 60°C
Impact Resistance	No
Environmental Resistance	No

General
Mounting	1x Proprietary for Ceiling 1x Proprietary for Wall
Dimensions (W x H x D)	188 x 226 x 169 mm
Weight	2.3 kg (Body Only)
