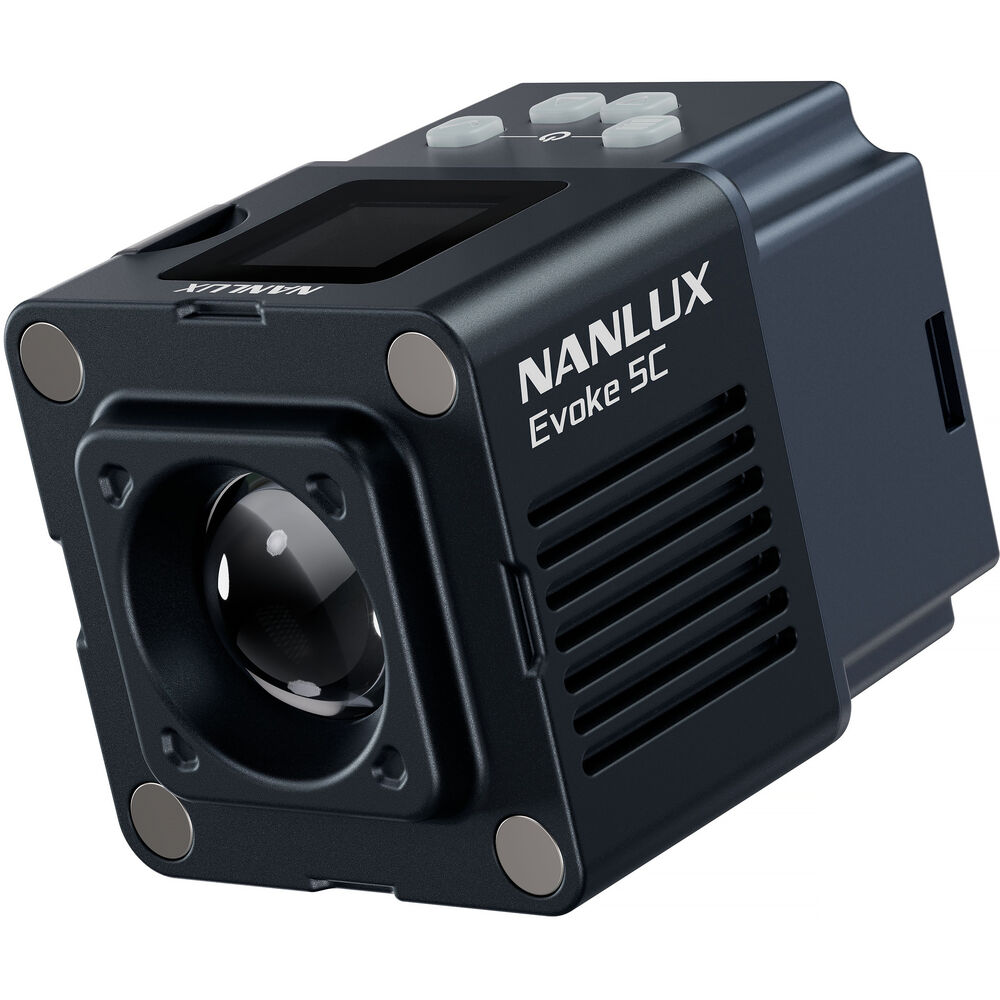

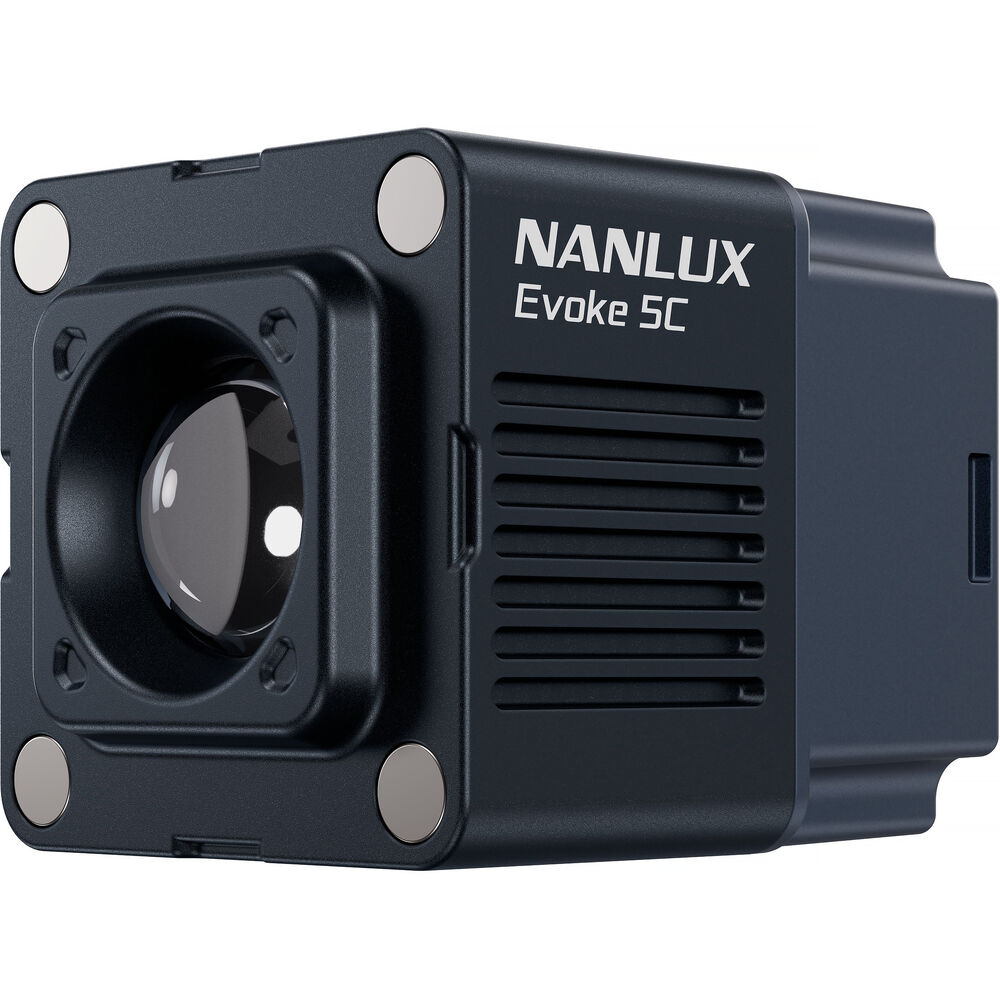

Nanlux Evoke 5C RGB LED Spotlight

The Nanlux Evoke 5C RGB LED Spotlight is a compact 6W light offering full-colour output with a wide 1000-20,000K CCT range and green/magenta tint adjustment. It features a built-in battery, weatherproof IP67 rating, and versatile magnetic accessories including a diffuser, yoke, and thermal shield, making it ideal for professional and everyday use.

Full Colour Lighting and Effects

The Evoke 5C offers a wide colour temperature range from 1000 to 20,000K with precise dimming from 0 to 100%. It features high CRI 98 and TLCI 98 ratings for accurate colour rendering. Users can access multiple modes including CCT, HSI, HSIW, RGBW, XY, Gel, and Effect modes. The light includes 460 LEE and Rosco gels for quick colour selection, plus 15 built-in effects such as candle, fireworks, police car, and welding simulations, all controllable onboard or via the app.

Control Options

Control the Evoke 5C through several methods: onboard controls, Bluetooth via the Nanlink 2.0 app, DMX/RDM, LumenRadio CRMX, and NFC pairing. The screen brightness is adjustable and can automatically turn off to save power. Wireless and wired options provide flexibility for both simple setups and complex productions.

Integrated Battery and Accessory Ecosystem

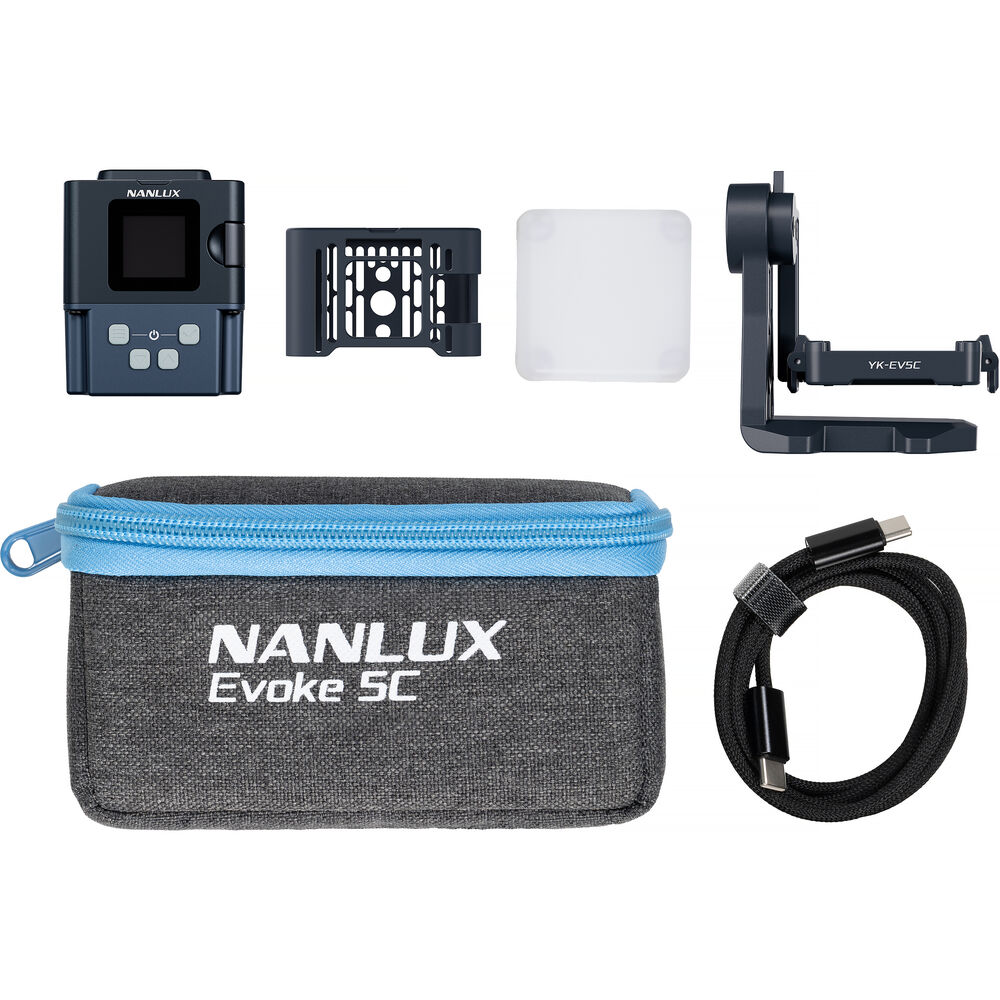

The fixture includes a built-in battery offering up to 50 minutes of runtime at full power. Charging is possible via USB-C using a 5V/2A or higher power source, including power banks. The Evoke 5C supports charging through electronic contacts compatible with optional accessories such as a battery grip, magnetic E27 socket adapter, and an eight-kit case. Magnetic accessories include a diffuser, yoke, thermal shield, and a carry bag for transport.

Durability and Mounting

With an IP67 rating, the Evoke 5C is dustproof and waterproof for up to 30 minutes at a depth of 1 metre. An optional IP68 underwater housing extends this to 30 metres. The light can be handheld or mounted using a 1/4"-20 anti-twist mount and features magnetic attachment points for quick accessory changes. The included thermal shield helps manage heat during extended use, and firmware updates are available to maintain and improve functionality.
