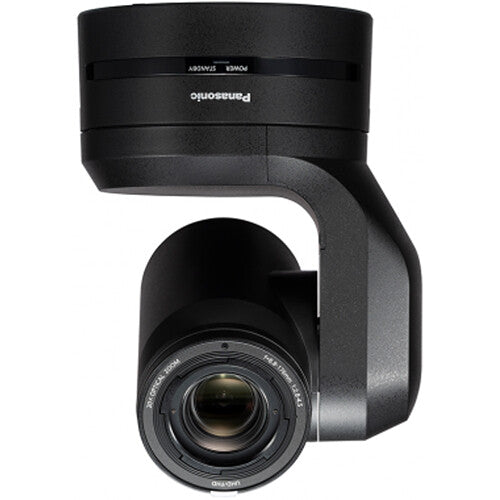

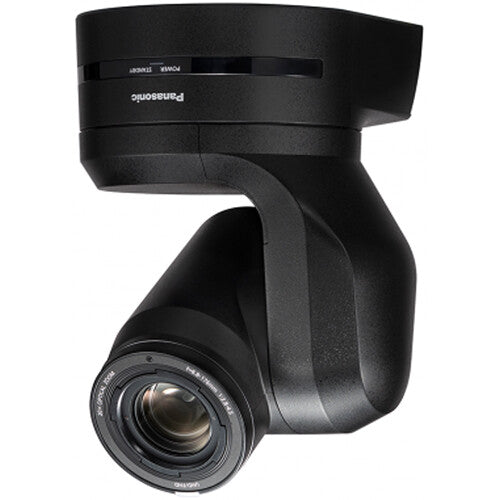

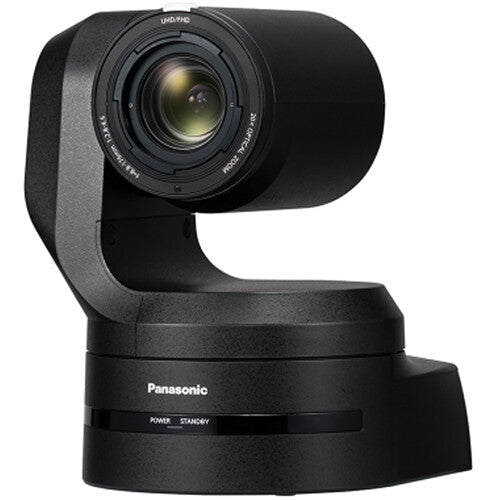

Panasonic AW-HE145 HDMI/3G-SDI/IP HD Integrated PTZ Camera (Black)

Panasonic AW-HE145 HDMI/3G-SDI/IP HD Integrated PTZ Camera (Black) is a professional remote camera for conference rooms, houses of worship, education spaces and live production. Its 25.4 mm type Full HD MOS sensor supports UHD 4K video at up to 30 fps, with HDR and broad connectivity for dependable capture, streaming and control. The black camera includes a mounting plate and supports 12 V DC or PoE++ power.

Zoom and PTZ operation

The 20x optical zoom lens covers a 75.1° angle of view and can extend to 10x digital zoom or 32x iZoom in HD. The camera pans across 175° and tilts from -30° to 90°, with synchronised PTZ preset recall and compatibility with Panasonic controllers, including the AW-RP150 and AW-RP60.

Video outputs and IP streaming

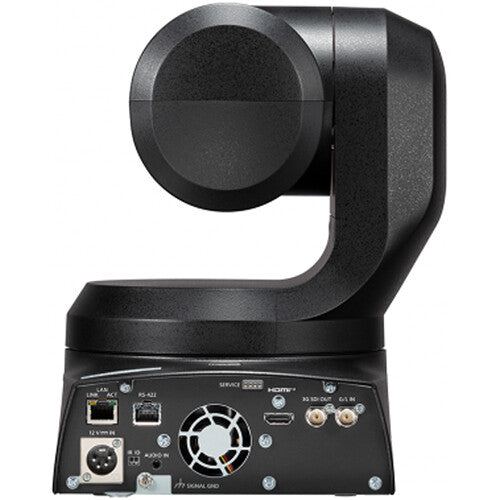

Video can be output through HDMI, 3G-SDI or RJ45 IP connections at up to 1080p60 or UHD 4K30. H.264, H.265 and MJPEG compression support RTSP, RTMP, RTMPS and SRT streaming, while SRT provides a secure option for unstable networks. An optional NDI|HX licence enables integration with compatible NDI workflows.

Remote control and production integration

Use a web browser on a computer, tablet or smartphone for remote camera control and monitoring over IP. RS-422 serial control, genlock input and FreeD protocol support integration with studio systems, while compatible Panasonic software includes PTZ Control Center and optional Auto Tracking Software for face tracking and body detection.

Low-light and audio features

Automatic or manual Night Mode supports shooting in low-light environments, while the four-stage ND filter system helps manage exposure in brighter conditions. Stereo analogue microphone or line input is provided through a 3.5 mm jack, with audio embedding, AAC-LC encoding and IP audio output. A tally light supports operation in multi-camera productions.
