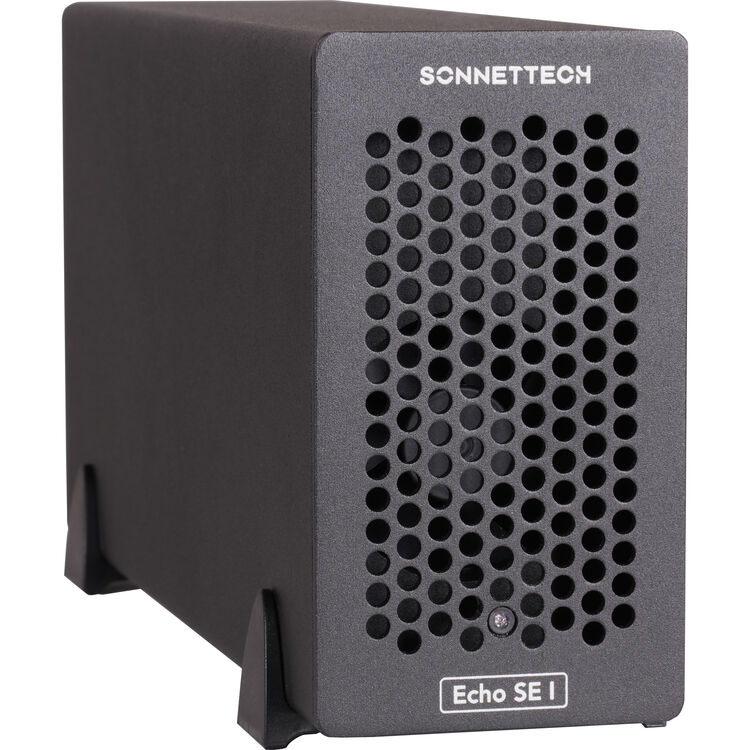

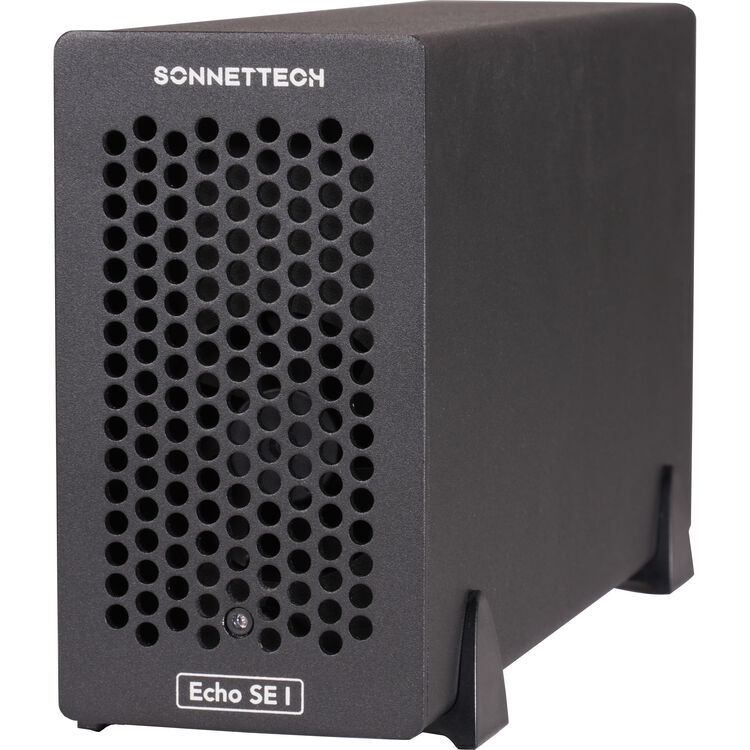

Sonnet Echo SE I Thunderbolt 5 Single-Slot Expansion Chassis for PCIe Cards

The Sonnet Echo Express SE I Thunderbolt 5 Expansion System is a desktop PCIe enclosure that connects a single full-height expansion card to your Thunderbolt 5 computer, delivering up to 80 Gb/s bandwidth for professional video capture, high-speed network interfaces, and storage controllers. Designed for video editors, colourists, and broadcast engineers who need desktop-grade PCIe performance in a compact form, it accommodates cards up to 197mm long with auxiliary power support for demanding devices like the AJA Kona 5 or Blackmagic DeckLink 8K Pro G2.

Thunderbolt 5 Performance Where It Counts

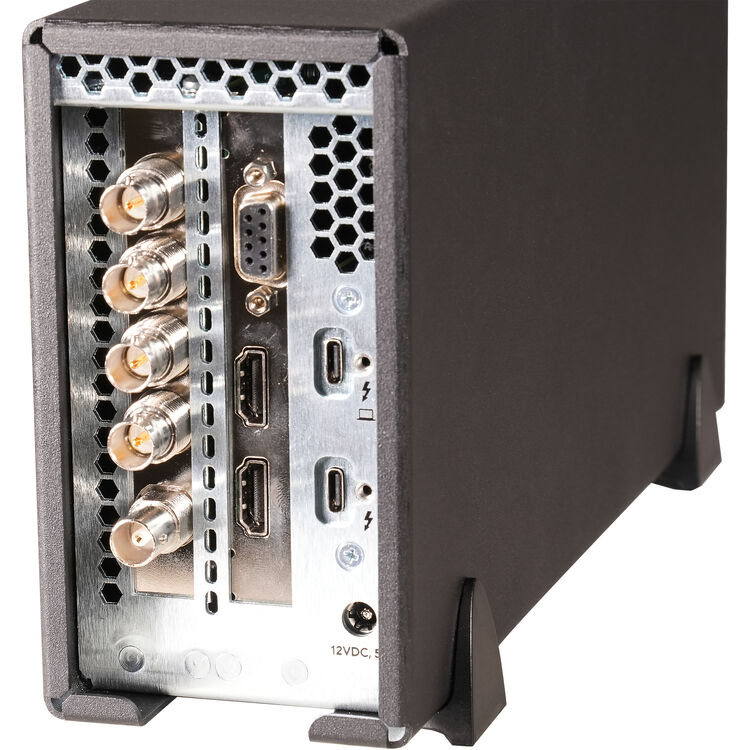

The 80 Gb/s Thunderbolt 5 interface provides the bandwidth headroom you need for uncompressed 4K and 8K video workflows, high-speed network storage access, and multi-stream capture. The second Thunderbolt 5 port lets you daisy-chain additional devices, including up to an 8K display and external storage arrays, while delivering 15W of power to connected peripherals.

Built for Real-World Video Production

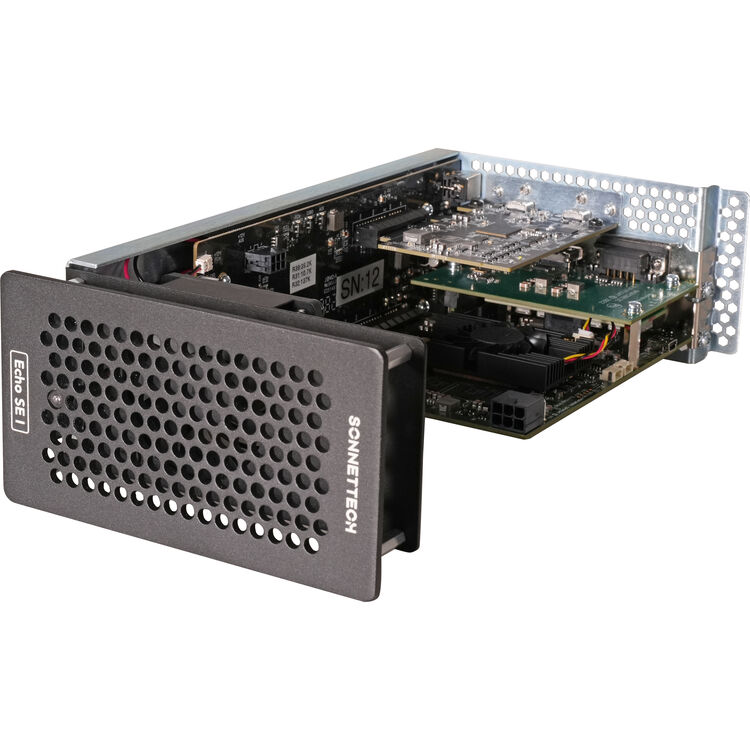

• Houses single or double-width PCIe 4.0 x8 cards with 6-pin auxiliary power
• Temperature-controlled variable-speed fan keeps noise levels studio-appropriate
• Automatic power management syncs with your computer, no manual switching required
• Included ThunderLok connector secures the Thunderbolt cable against accidental disconnection during critical captures
• Durable aluminium construction protects installed hardware while maintaining a compact desktop footprint

Compatibility and Integration

The Echo SE I T5 works with Thunderbolt 5 equipped systems running Windows 11, macOS 14 or later, or Linux. Whether you're adding professional video I/O, expanding network connectivity, or connecting specialised storage controllers, this enclosure brings full-size PCIe performance to any Thunderbolt 5 workstation without compromising desk space or acoustic comfort in edit suites and broadcast facilities.
