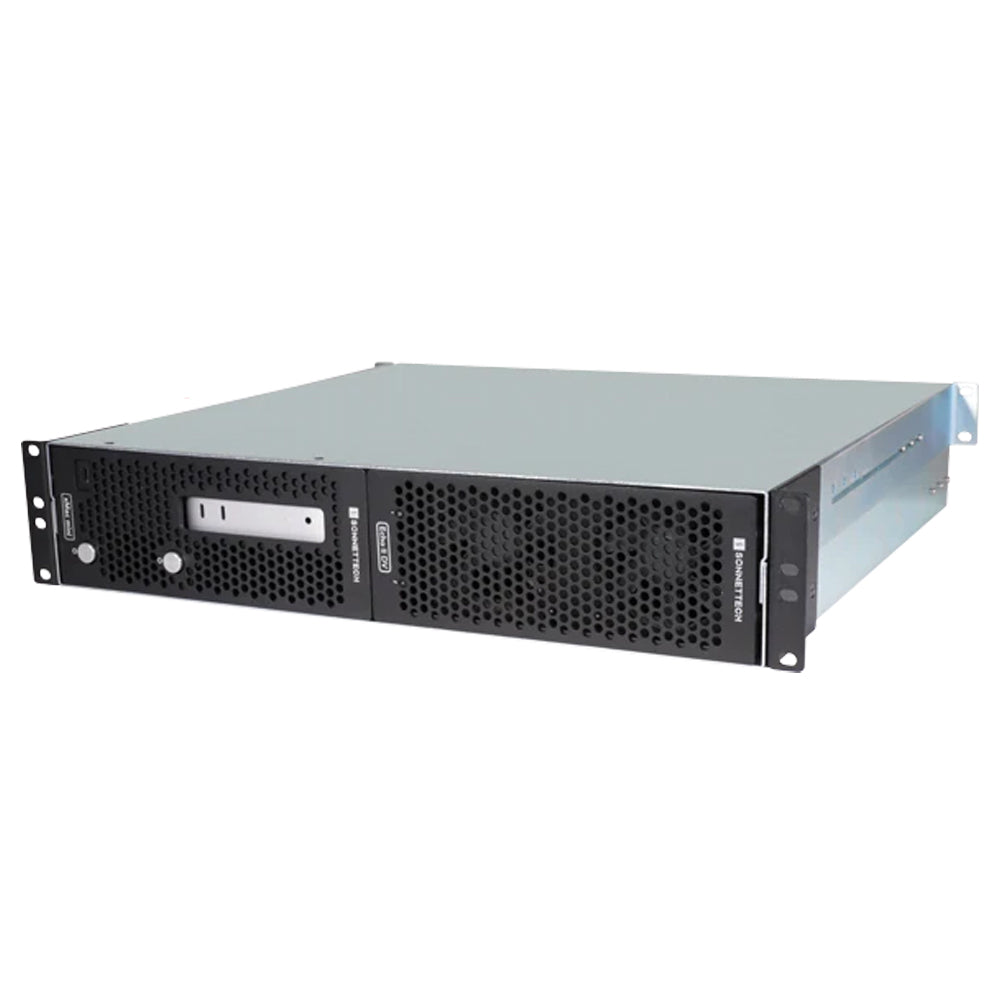

SONNET xMac mini (2024+) 2U Rackmount System With Echo IIDV Module

The Sonnet xMac mini (2024+) with Echo II DV is a rugged, rackmount expansion system that combines up to two Mac mini computers with dual PCIe slots for high-performance DV I/O cards. Designed for audio, video, and broadcast workflows, it enables pro-level connectivity and cooling in a 2U enclosure built for studio or mobile use.

Pro-Grade Rackmount System

Built to house up to two Mac mini (2024+) systems, the steel-framed 2U enclosure includes an xMac mini module and an Echo II DV module. The design provides secure mounting with front-access power buttons, cable passthroughs, and front-facing ports, while maintaining the thermal efficiency needed for rack environments.

High-Speed PCIe Expansion

• Two PCIe 3.1 slots support full-length, full-height, single-width cards
• Dual Thunderbolt 4 interfaces for 2800 MB/s bandwidth per slot
• Four 40Gbps Thunderbolt ports for high-speed device connections
• Supports DV I/O or other bandwidth-intensive PCIe cards

Flexible Mac mini Integration

• Mount up to two Mac mini (2024+) units with secure brackets
• Front USB-C for rear mini, passthrough for device cabling
• Single power input for both Mac minis
• Allows normal Wi-Fi and Bluetooth operation in most racks

Cool and Quiet Operation

• Front-to-back airflow supports Mac mini thermal design
• Dual Noctua fans rated at 17 dBA for silent cooling
• Open rear and vented front panels ensure heat dissipation

Storage and Mobility

• Internal space for two Thunderbolt or USB SSDs (up to 3.2 cm wide)
• 16.5" depth fits mobile rack kits like Gator and SKB
• Ideal for production travel, OB setups, and mobile studios

Package Contents

• xMac mini (2024+) rackmount enclosure
• Echo II DV module (pre-installed)
• Two Thunderbolt 4 cables and ThunderLok-A locks
• Power cables, auxiliary power leads, and rack rails

Dimensions & Warranty

• Size: 48.3 x 41.9 x 13.2 cm
• Weight: 13.15 kg
• Warranty: 2 years with free lifetime tech support
