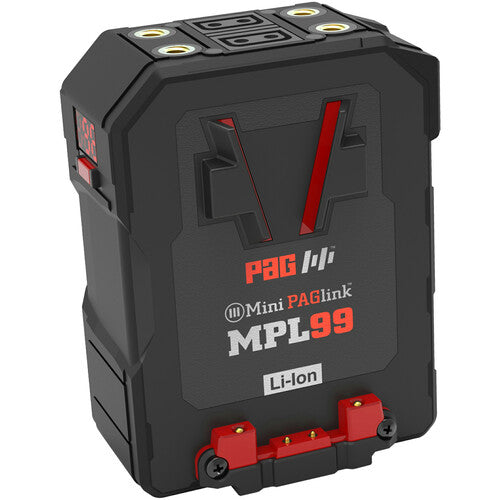

PAG Mini PAGlink MPL99 V-Mount Battery (99Wh)

The PAG Mini PAGlink MPL99 V-Mount Battery (99Wh) is an intelligent, rechargeable V-mount Li-ion battery that can be linked with up to nine other batteries for a total of 10 PAGlink units, which are compatible with PAGlink and other V-mount battery chargers. The battery features a numeric runtime, capacity, and data display and is hot-swappable for continuous power. The battery has a modular design that allows for internal modules to be replaced by an authorized service facility, and the intelligent linking technology also allows for more batteries to be recharged using fewer chargers.

Less Weight, More Power

Intelligent battery linking enables you to control the capacity and weight of your power source to suit the application. For example, use a single battery for handheld applications and two to four batteries for more current or to achieve longer runtimes.

More Current and Better ROI

When batteries are linked and in a similar state of charge, the current-draw capability increases from 8 to 12A. This is ideal for camera setups that require power for multiple accessories.

Hot-Swap or Add

PAGlink batteries allow seamless hot-swapping for continuous power or the ability to add another battery just to keep shooting, putting an end to time-consuming camera reboots.

No Dead Weight on Your Camera

Simultaneous rather than sequential discharge means that no unused batteries are adding dead weight to your camera.

Intelligent Linking

When linked, the batteries form a network that enables them to communicate with each other, managing the output safely and preventing the transfer of charge between batteries. A fully charged battery can be linked safely to one that is fully discharged.

Capacity

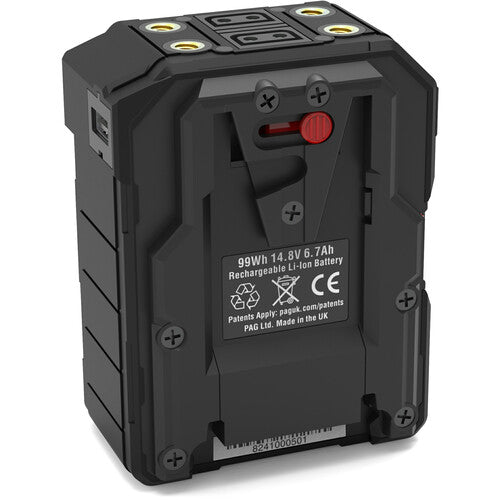

The battery handles 99Wh at 14.8V and 6.7Ah.

Flight Friendly

All PAG Li-ion batteries are tested to UN standards by an independent authority and certified to comply with air transport safety regulations. They are labelled with their UN test number and air travel quantity allowance, based on their capacity.

Future-Proof Batteries

The battery firmware can be updated in the field by the user in a matter of seconds, without opening the battery case. Updates enable you to benefit from the technological advances that accommodate developments in camera technology.

Swappable USB Output Unit

The USB output unit (5V 2A) may be swapped for other unit types, including Hirose, LEMO, and D-Tap.

Output Current

The rated maximum continuous output current for an individual 50Wh battery is 8A, and for a 99Wh battery, it is 10A. Two or more linked batteries of any rated capacity, in a similar state of charge, will deliver an increased continuous current of up to 12A.
