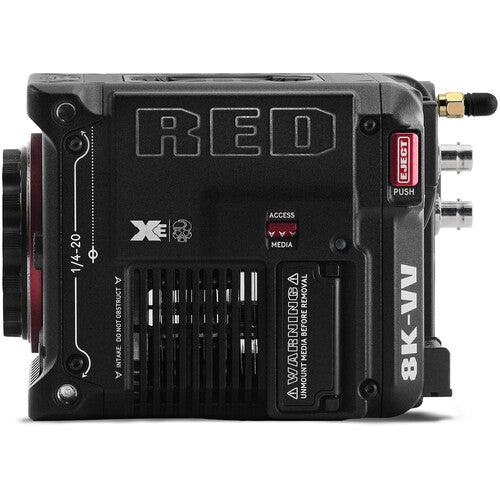

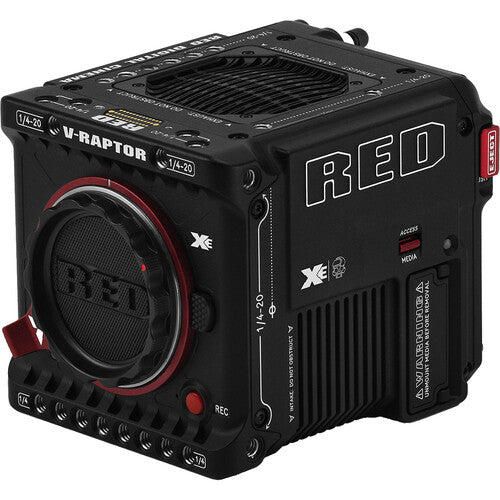

RED V-RAPTOR XE 8K VV Cinema Camera (Canon RF)

The RED V-RAPTOR XE 8K VV Cinema Camera offers uncompromising image quality in a compact, streamlined body. Featuring a large-format 35.4MP sensor with global shutter, it captures 8K video up to 60 fps and 17+ stops of dynamic range, all in a rugged 1.8 kg design. Designed for professional filmmakers, it balances high-end performance with efficient, cost-effective operation and broad compatibility.

Global Shutter Sensor
The V-RAPTOR XE features a full-frame 8K sensor with global shutter and a fast 8 ms scan time, eliminating motion artefacts caused by rolling shutters. Capture distortion-free footage with high detail, contrast and colour accuracy, even under flickering lights or fast motion.

High Frame Rate Capture
Flexible resolution and frame rate options allow you to tailor capture settings to suit any production:

• 8K up to 60 fps
• 6K up to 80 fps
• 5K up to 96 fps
• 4K up to 120 fps
• 2K up to 240 fps

Intelligent Autofocus
Advanced on-sensor phase detection and face tracking deliver fast and accurate autofocus, helping operators maintain sharp focus even in unpredictable environments.

Exceptional Dynamic Range
With 17+ stops of dynamic range and REDCODE Raw capture, the XE preserves fine detail in shadows and highlights. The sensor performs reliably in low light, with minimal fixed pattern noise.

Recording Formats and Workflow
Capture REDCODE HQ Raw to CFexpress Type B cards at up to 800 MB/s. Simultaneously record ProRes proxies or alternative formats for faster post workflows.

• RED RAW for maximum post flexibility
• ProRes 4444 XQ up to 4K120
• Simultaneous proxy recording

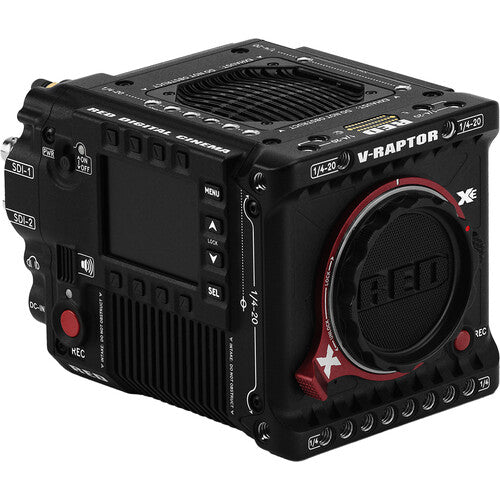

Monitoring and Camera Control

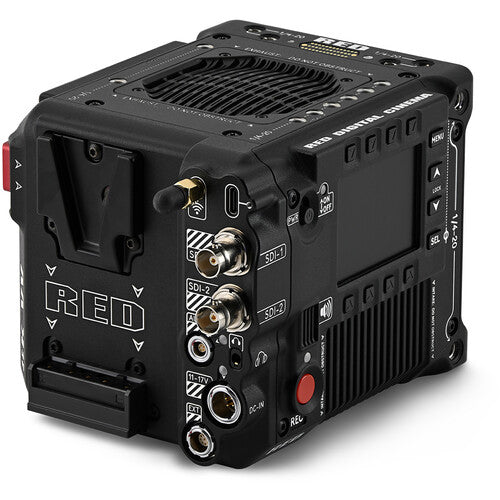

The built-in 2.4" LCD and side controls offer full menu access without external monitors. Dual 12G-SDI outputs support unique monitoring views for crew and director, and USB-C supports data rates up to 250 MB/s.

Advanced Connectivity
Wired and wireless IP connections enable remote camera control and direct cloud integration.

• Compatible with RED Control and RED Control Pro
• Wi-Fi remote ND control (via RF to PL adapter)
• Direct upload to Frame.io and AWS

Durable and Lightweight Design
Weighing just 1.8 kg, the XE shares the rugged DSMC3 build of the V-RAPTOR X. Its advanced thermal management keeps the camera cool and operational in demanding environments.
