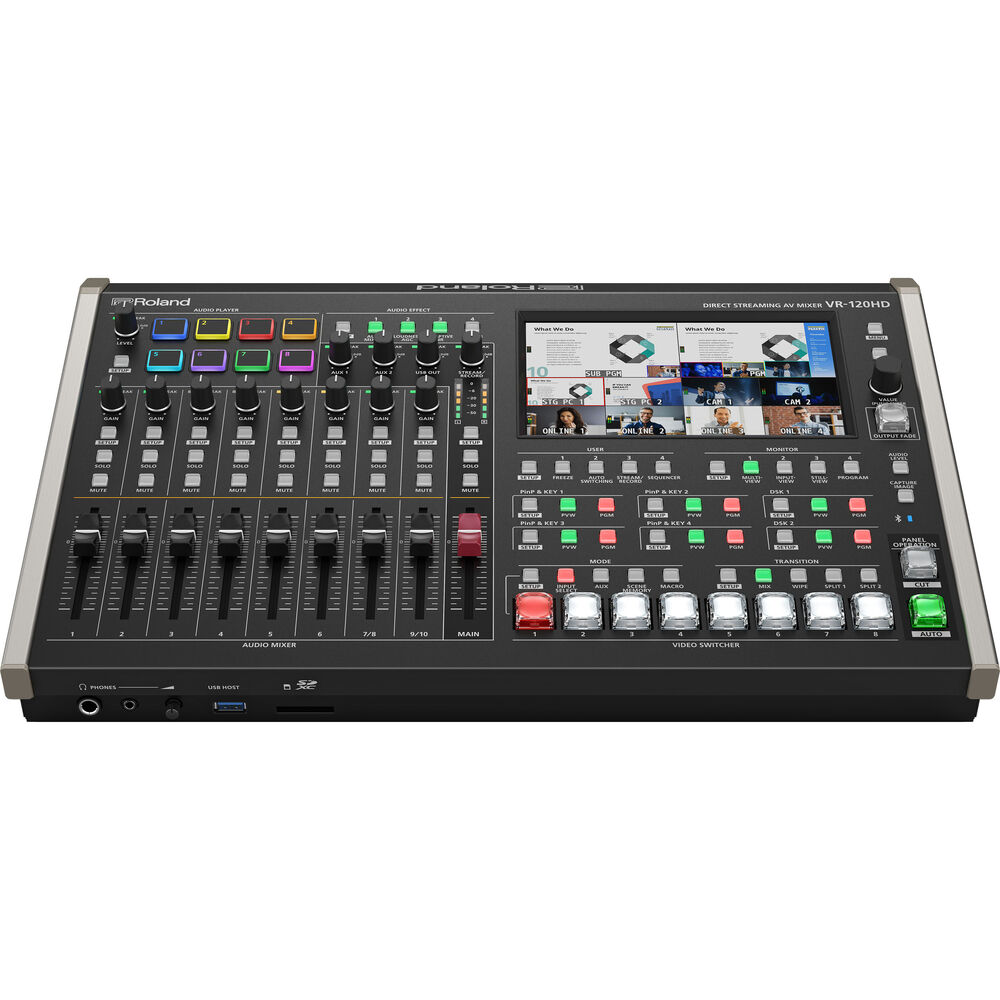

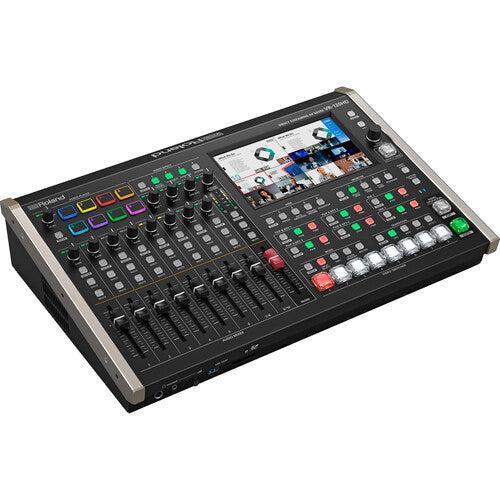

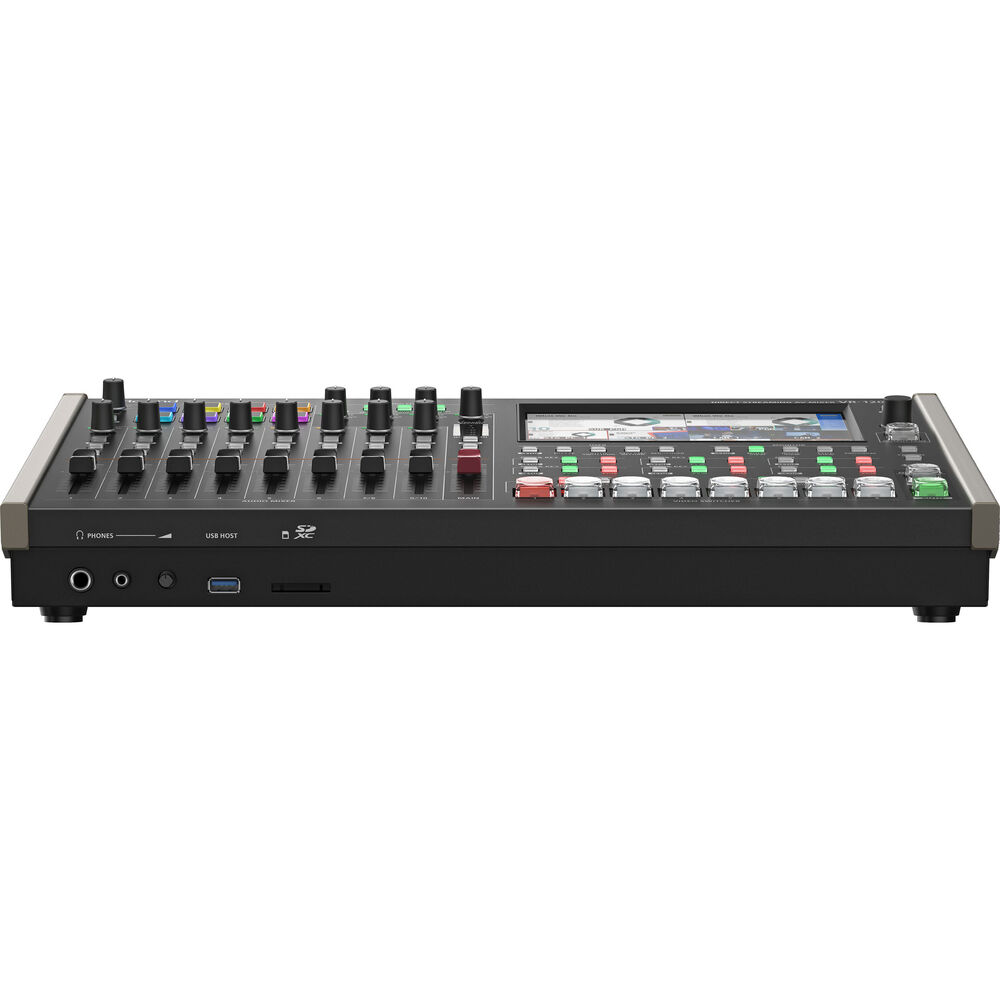

Roland VR-120HD Direct Streaming AV Mixer with Video Record and Playback

Name: Roland VR-120HD Direct Streaming AV Mixer with Video Record and Playback
Brand: Roland
SKU: ROL-VR-120HD
Price: 9570.00 AUD
Availability: InStock

Roland | SKU: ROL-VR-120HD | Barcode: 4000001555406

$9,570.00 $10,999.00

Tax included Shipping calculated at checkout.

Shipping Options

Shipping Methods & Estimated Delivery Times

Australia Post Express Shipping – 1–2 business days within the same state, 1–3 business days interstate.
Australia Post Regular Shipping – 2–4 business days within the same state, 3–6 business days interstate.
StarTrack Express – 2–7 business days, depending on location.
StarTrack Premium – Next business day between capital cities and major metro areas.
Local On-Demand Delivery (Small Orders Only) – Same-day delivery within Melbourne & Sydney metro areas using Uber and Yello.

Shipping Cut-Off Time: Orders placed before 2 PM will typically be processed and dispatched the same day.

Please note: **We ship orders as a single shipment. If your order contains items with different availability, your order will be held until all items are ready to be shipped together.** Keep this in mind when placing your order. If this is an issue, please contact us at websales@videocraft.com.au to arrange for alternative shipping options.

The Roland VR-120HD Direct Streaming AV Mixer with Video Record and Playback combines the advanced functions of a video switcher and an audio mixer, the portable VR-120HD is ideal for live school events, houses of worship, council meetings, corporate events, concerts, and other live performance venues. The switcher offers the capability of live streaming up to two simultaneous streams to popular online forums, such as Facebook and Twitch.

The unit features six HDMI inputs and six SDI inputs capable of handling resolutions up to 1080p60, as well as three HDMI and three SDI outputs, 42-channel audio mixing, and direct LAN and USB-C, live streaming outputs. Perfect for use as a standalone production switcher, the VR-120HD offers an integrated 7" touchscreen display with a graphical menu for previewing all your incoming signals and viewing your intended program output without ever needing additional preview monitors.

Key Features

Portable hybrid event audio/video mixer with direct streaming encoders.
Powerful live production automation with sequencing, macros, and scene memories.
Built-in streaming encoders for transmitting two live streams at up to 1080p60.
Record streams directly to an SDXC card for archiving, editing, and distribution.
Six 3G SDI inputs with frame rate converters.
Six 1080p HDMI inputs with frame rate converters and real-time scalers.
Support for cinema and broadcast frame rates.
Eight-layer video effects engine.
Eight total outputs: three SDI, three HDMI, USB-C streaming, and a dedicated direct streaming output.
Seven selectable output modes: Program, Sub-Program, Aux, Preview, and three Multi-View options.
42-channel digital audio mixer with advanced effects and processing.
Two 1/4" TRS ports for CTL/EXP.
16-slot still store function supports screen capture or uploaded BMP/JPEG/PNG images via the alpha channel in the internal non-volatile memory.
Enhance your live streams with sound effects, still images, and video sources stored on an SDXC card.
Audio player function with eight trigger pads and onboard storage for 16 audio files.
PTZ control for 12 cameras with support for multiple brands and mixed protocols.

Available M/E Layers	8 M/E
Effect Types	DVE, Graphic, Transition, Chroma Key, Alpha Key, Luma Key
Graphics Memory	None
Downstream Keys	2 x Chroma, Alpha, Luma, DVE
Audio Mixing	42-Channel Mixing

Processing

Switching Type	Pushbutton
Processing Resolution	1080p at 60
Color Processing	8-Bit 4:2:2
Audio Processing	48 kHz / 24-Bit

Input

Number of Video Input Sources	12
Video Inputs	6 x HDMI Female 6 x BNC (3G-SDI) Female
Input Video Format	HDMI (8-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94 fps 720p at 50/59.94 fps 576p at 50 fps 576i / 625 lines at 50 fps 480p at 59.94 fps 480i / 525 lines at 59.94 fps VGA (640 x 480) at 60 fps SVGA (800 x 600) at 60 fps XGA (1024 x 768) at 60 fps WXGA (1280 x 800) at 60 fps SXVGA (1280 x 1024) at 60 fps FWXGA (1366 x 768) at 60 fps SXGA+ (1400 x 1050) at 60 fps UXGA (1600 x 1200) at 60 fps WUXGA (1920 x 1200) at 60 fps SDI (8-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps USB-C (8-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 720p at 24/25/29.97/30/50/59.94/60 fps 480p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Inputs	6 x Combo XLR-1/4" TRS Analog Female 2 x 2RCA Analog Female
Input Audio Format	Analog: 48 kHz / 24-Bit LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
Embedded Audio Input	HDMI: 2-Channel (per Input) SDI: 2-Channel (per Input) USB-C: 2-Channel

Output

Video Outputs	3 x HDMI Female 3 x BNC (3G-SDI) Female
Output Video Format	HDMI / SDI 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/60 fps 720p 50/59.94/60 fps
Audio Outputs	4 x XLR 3-Pin Mono Analog Male 1 x 2RCA Stereo Analog Female 1 x 1/4" TRS Stereo Analog Female 1 x 1/8" / 3.5 mm TRS Stereo Analog Female
Output Audio Format	Analog: 48 kHz / 24-Bit LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
Embedded Audio Output	HDMI: 8-Channel (per Output) SDI: 8-Channel (per Output) USB-C: 2-Channel

Connectivity

Inputs/Outputs	1 x USB-C(Stereo) Female
Other I/O	1 x USB-A 2.0 Input 1 x DB-25 Tally 1 x DE-9/DB-9 RS-232 1 x RJ45 Control, LAN 2 x BNC Blackburst, Reference 2 x 1/4" TRS Control
Video Standard Compliance	SMPTE 292M/424M/424M-A/424M-B
IP Video	H.264/MJPEG: 1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p (20,000 Kb/s) Encoding
IP Audio	AAC-LC: 384 Kb/s Encoding
Simultaneous Streams	2 Streams
Recording Media	1 x SDXC, SDHC, USB-A 2.0
Recording Modes	1920 x 1080p up to 60 fps (MP4 via H.264/AVC)

Display

Display Size	7"
Screen Resolution	800 x 480

Hardware

OS Compatibility	macOS Windows *As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Wi-Fi	None
Bluetooth	4.2
Power I/O	1 x Barrel (24 VDC at 3 A) Input
Power Consumption	69 W

Environmental

Operating Temperature

32 to 104°F / 0 to 40°C

General

Certifications	FCC *as per Manufacturer
Dimensions	17.2 x 12 x 4.3" / 437 x 304 x 109 mm
Weight	11.7 lb / 5.3 kg
