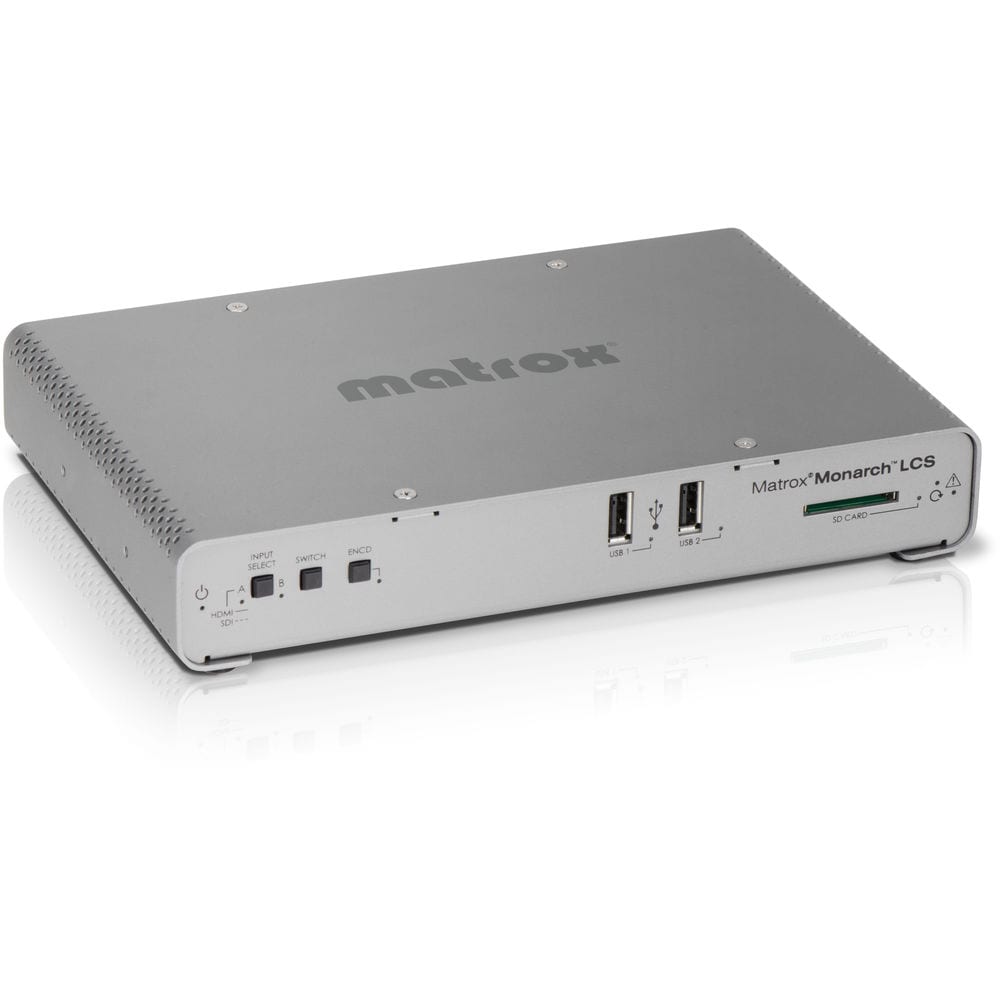

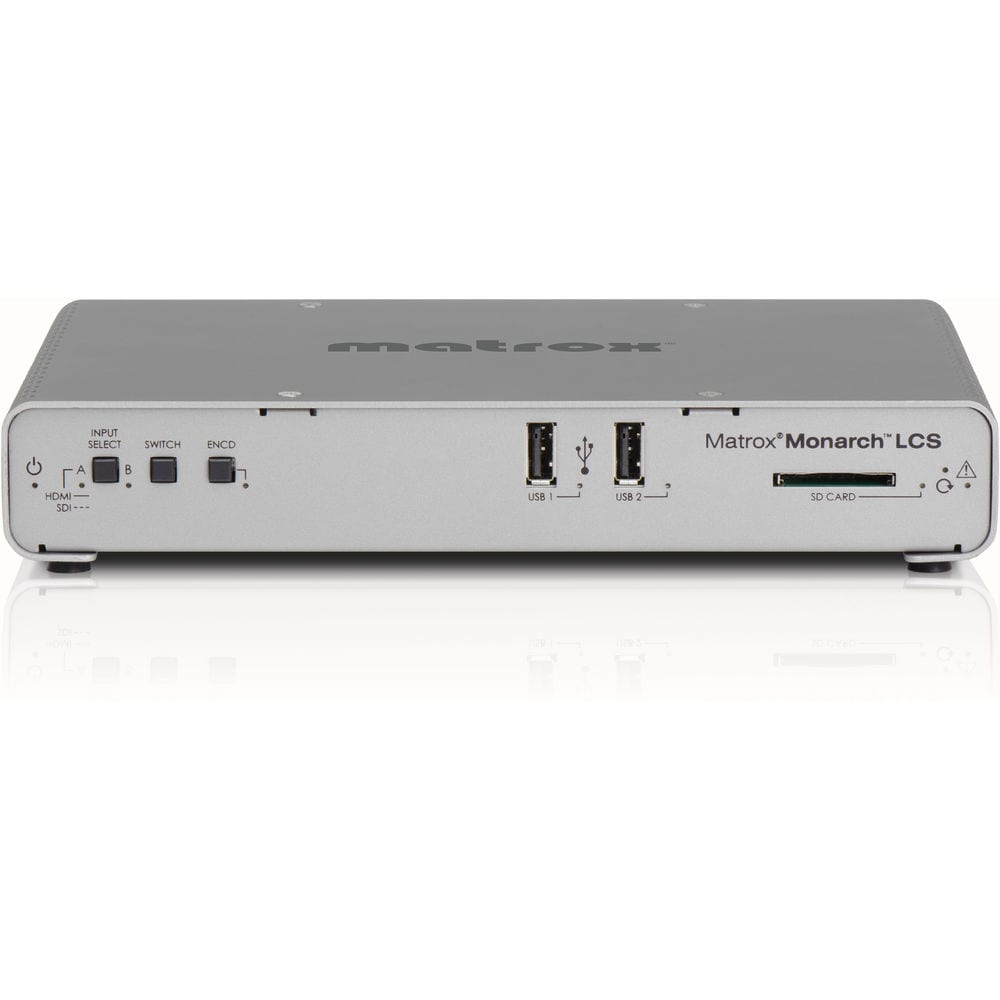

Matrox Monarch LCS Lecture Capture Appliance

Name: Matrox Monarch LCS Lecture Capture Appliance
Brand: MATROX
SKU: MAT-MHLCS-I
Availability: InStock

MATROX | SKU: MAT-MHLCS-I | Barcode: 4000001844111

The Matrox Monarch LCS Lecture Capture Appliance allows you to simultaneously stream and record HDMI/SDI-based video. Expanding on the Monarch HDX, the Monarch LCS features two HDMI inputs, one for video sources and one for computer sources, plus one SDI input. Its dual encoders can process up to two of these three inputs simultaneously. Live content preview is available in both HDMI and SDI outputs. The Monarch LCS is designed to provide a mix of live video footage and/or SDI/HDMI presentation material. Suitable for on-line courses or lectures, video of the instructor can be displayed alongside the class material being referenced.

The Monarch LCS's two H.264 encoders can process each HDMI/SDI signal at up to 1080p30 resolution. These dual streams make multiple modes including PiP, side by side, and dual isolated layouts possible. Select newer third-party video players enable viewers as well as operators to choose layouts. Switcher mode is another Monarch LCS option, offering operators on-the-fly input selection throughout their event.

Multiple Operating Modes

The user can choose between multiple operating modes with preset layouts or can actively alternate inputs in Switcher Mode.

Viewer Defined Layouts

In Isolated mode, the Monarch LCS can be used with select third-party players that allow viewers to choose between layout options.

High Streaming Rate

Choose individual encoding settings for each of the Monarch LCS's two channels. A total of up to 20 Mbps, 1080p30 encoding capacity can be shared across the dual streams.

Integrates Easily with Asset Management Software

The Monarch LCS is designed to work with existing network infrastructures using third-party video or lecture management software such as OpenCast or Moodle. It also integrates easily with open-source scheduling programs such as Google Calendar.

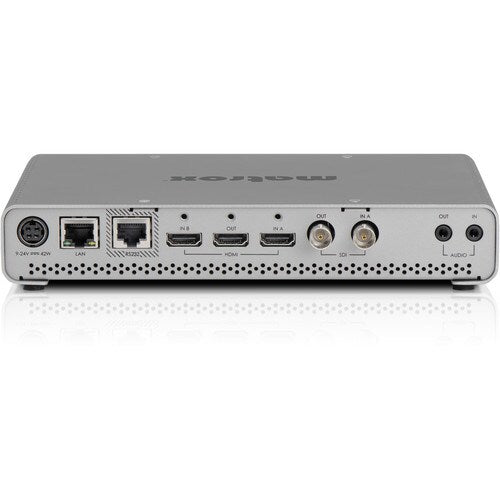

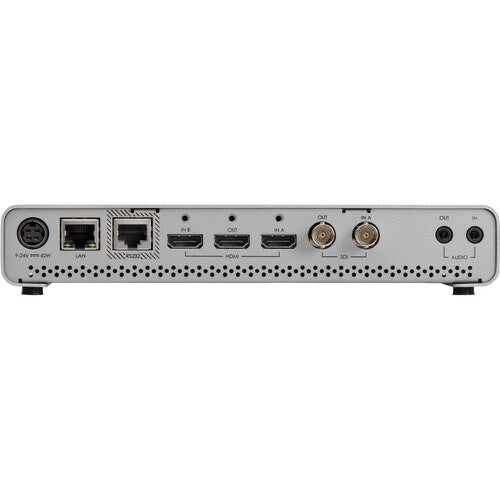

Inputs/Outputs

HDMI Video Input	HDMI Video Input 1 (Video Sources) (Auto-Detected): 1080p 25/29.97/30/50/59.94/60 1080i 50/59.94 720p 50/59.94/60 HDMI Video Input 2 (Computer Sources) (Auto-Detected): 1080p 50/60 1080i 25/29.97 720p 50/60 HDMI Specs: HDMI YCbCr 4:2:2 /RGB HDMI embedded 2-channel audio HDCP not supported
HDMI Video Output	Preview Output of Video Input Signals: HDMI YCbCr 4:2:2 /RGB HDMI embedded 2-channel audio
SDI Video Input	1 x SDI Video Input (Auto-Detected): 1080p 25/29.97/30/50/59.94/60 1080i 50/59.94 720p 50/59.94/60 576i 50 486i 59.94 SDI Specs: SDI embedded 8-channel, 24-bit, 48 kHz audio SDI compliant with SMPTE 259M/292M/424M (level A)/425M Terminated 75 Ohms BNC connector Full audio and VANC preservation
SDI Video Output	Preview Output of Video Input Signals: SDI compliant with SMPTE 259M/292M/424M (level A)/425M SDI embedded 8-channel, 24-bit, 48 kHz audio 75 Ohms BNC connector
Audio Input	Embedded Audio: First two channels processed Unbalanced analog stereo input, 1/8" (3.5 mm) jack Input Impedance: High
Audio Output	Embedded Audio: Passthrough of up to 8 channels Unbalanced analog stereo output, 1/8" (3.5 mm) jack Output Impedance: 25 Ohms THD+N at 1 kHz, 10 Ohms, nominal level <0.05% Frequency Response: 20 Hz-20 kHz +/- 1 dB Channel Separation, Nominal Level: -85 dB Signal-to-Noise Ratio: -88 dB

Video Encoder

Encoder	H.264/MPEG-4 Part 10 (AVC)
Encoding Resolutions	Selectable Range: 128 x 128 to 1920 x 1920
Maximum Bit Rate	Streaming or Recording (One Encoder): 16 Mbps Streaming (Two Encoders): 8 Mbps per channel Recording (Two Encoders): 10 Mbps per channel
Encoding Frame Rates	12.5, 14.98, 15, 25, 29.97, 30, 59.94, 60
Encoding Profiles	Baseline, main, high
Encoding Controls	2, 3, 3.1, 4, 4.1 level support GOP size Variable bit rate support Average maximum/minimum data rate controls Deblocking filter

Audio Encoder

Standard	AAC-LCS
Sample Frequency	Digitized from Analog Source: 32, 44.1, 48 kHz
Channels	2 Stereo (L&R)
Bit Rates	32 to 256 kbps

Scaling

Downscaling

10-bit downscaler and deinterlacer

Recording Specifications

Recording File Size	Maximum: 300 minutes
Recording Formats	MOV (2 channels of embedded AAC audio) MP4 (2 channels of embedded AAC audio)
File System Options	FAT32 NTFS
Recording Options	2 x USB 2.0 1 x SD/SDHC card slot Network-Mapped Drive: via Windows Share or NFS protocols
Supported Media Card Types	SD/SDHC Cards: NTFS-formatted SDXC cards only Class 10 recommended

Network Interface

Streaming Protocols	RTSP RTMP IPv4 Support Unicast, Multicast: 3-10 Clients
Data Ports	1 x Auto-sensing 10/100/1000 Base-T Ethernet RJ45 port 1 x RS-232
Supported Browsers	Microsoft Internet Explorer Apple Safari
Supported Operating Systems	Mac OS X El Capitan Microsoft Windows 8.1 (64-bit) (requires Microsoft .NET Framework)

Power Specifications

Power Input	9-24 VDC Connector: DIN 4 Total Consumption: 20-30 W (42 W maximum)
Power Supply	Line Voltage: 100-240 VAC Frequency: 50-60 Hz Input Connector: IEC320-C8 Output Connector: Locking power DIN 4 Output: 12 VDC (42 W)
AC Power Adapter	US/UK/EU

Environmental

Operating Temperature	32-104°F (0-40°C)
Humidity Range	Operating: 20-80% (non-condensing) Storage: 5-95% (non-condensing)
Maximum Altitude	Operation: 9843 ft (3000 m) Transportation: 39,370 ft (12,000 m)

Physical

Dimensions (LxWxH)	8.5 x 5.59 x 1.47" (21.59 x 14.2 x 3.73 cm)
Weight	1.3 lb (0.6 kg)
