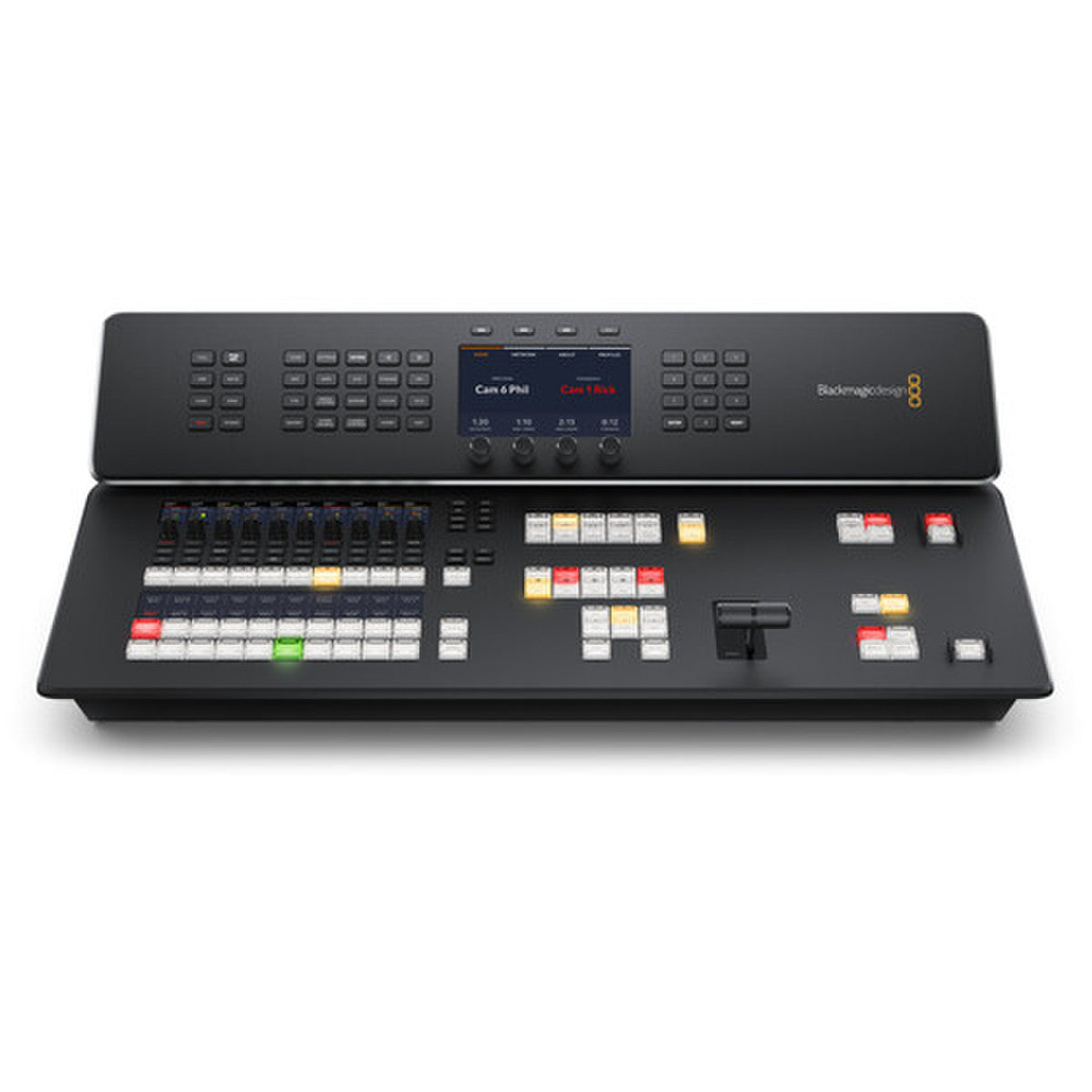

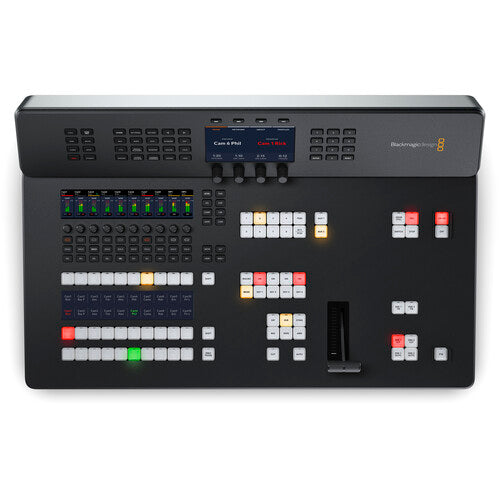

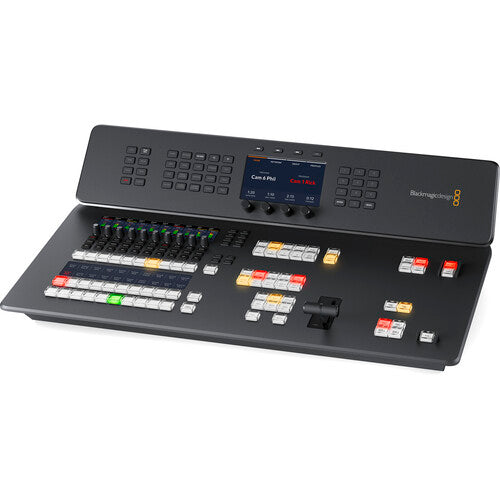

Blackmagic Design ATEM Television Studio HD8 ISO

Name: Blackmagic Design ATEM Television Studio HD8 ISO
Brand: Blackmagic Design
SKU: BLA-SWATEMTVSTC/HD08ISO
Price: 5995.00 AUD
Availability: InStock

Blackmagic Design | SKU: BLA-SWATEMTVSTC/HD08ISO | UPC: 9338716008050

$5,995.00 ~~$6,545.00~~

Tax included Shipping calculated at checkout.

Shipping Options

Shipping Methods & Estimated Delivery Times

Australia Post Express Shipping – 1–2 business days within the same state, 1–3 business days interstate.
Australia Post Regular Shipping – 2–4 business days within the same state, 3–6 business days interstate.
StarTrack Express – 2–7 business days, depending on location.
StarTrack Premium – Next business day between capital cities and major metro areas.
Local On-Demand Delivery (Small Orders Only) – Same-day delivery within Melbourne & Sydney metro areas using Uber and Yello.

Shipping Cut-Off Time: Orders placed before 2 PM will typically be processed and dispatched the same day.

Please note: **We ship orders as a single shipment. If your order contains items with different availability, your order will be held until all items are ready to be shipped together.** Keep this in mind when placing your order. If this is an issue, please contact us at websales@videocraft.com.au to arrange for alternative shipping options.

With the Blackmagic Design ATEM Television Studio HD8 ISO, customers can edit live events effortlessly. This device records all inputs to distinct video files, providing customers with 8 different video input files that have matching timecode and sync. Additionally, the program video is also recorded into a separate master video file. As a result, customers can use any NLE software that supports multi-cam editing. The device also saves a DaVinci Resolve Project file, which is linked to the input video files. This feature converts the live switching into an edit timeline that customers can open with just a click.

With support for DaVinci Resolve project files in the ISO model, customers get a full post-production workflow with editing, colour correction, visual effects and audio mixing. Simply open the project and users will see their live production as an edit timeline. Customers can even relink to Blackmagic RAW camera files if customers want to finish in Ultra HD.

Another exciting feature of the ATEM Television Studio HD ISO model is that it can connect to remote cameras. The Blackmagic URSA Broadcast G2, Blackmagic Studio Camera 4K Pro G2 and Blackmagic Studio Camera 6K Pro cameras can live stream in H.264 direct to the switcher. Plus customers even get camera control and tally. Program audio is also sent back to the camera which is great for live interviews.

The ATEM Software Control app unlocks the hidden power of ATEM Television Studio HD by allowing access to all the features in the switcher. ATEM Software Control features a visual switcher user interface with parameter palettes for making adjustments. The software lets customers live switch, mix audio, colour correct in the cameras and manage media. Customers can also build and run complex macros from the software.

Connections

SDI Video Inputs

SDI Video Outputs

SDI Rates

1.5G, 3G

HDMI Video Outputs

Total Audio Inputs

2 x XLR balanced analog audio,

1 x BNC 32 Ch MADI digital audio,

2 x RCA stereo analog audio,

1 x 5 pin XLR Talkback.

Total Audio Outputs

4 x 1/4 inch Jack analog audio,

1 x BNC 64 Ch MADI digital audio, up to 50 active,

1 x 5 pin XLR Talkback.

SDI Audio Inputs

4 Ch embedded audio on all SDI inputs.

SDI Audio Outputs

2 Ch embedded audio on all SDI outputs.

Timecode Connections

1 x BNC In, 1 x BNC Out.

Reference Input

1 x BNC In, 1 x BNC Out.

Tri-Sync or Black Burst.

Video Input Re-Sync

On all 8 inputs.

Frame Rate and Format Converters

On all 8 inputs.

SDI Aux Outputs

SDI Program Outputs

Webcam Output

2 x USB-C supporting 720p or 1080p at PGM frame rate.

Total Multi Views

1 x 3G-SDI

1 x HDMI

Remote

RJ12 supports RS-422

Control Panel Connection

Ethernet. Direct connection between panel and chassis, or via a network.

Internal Timecode Generator

Yes

Talkback

RJ45 for 3rd party talkback systems.

Tally Output

Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).

Ethernet

4 x RJ45 with an internet network switch. Supports 10/100/1000 BASE-T.

Computer Interface

2 x USB-C supports USB 2.0 for external drive recording, webcam out, software control, software updates and switcher connection.

Standards

SD Video Standards

None

HD Video Input Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

SDI Compliance

SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.

Video Sampling

4:2:2

Colour Precision

10-bit.

Colour Space

REC 709

SDI Auto Switching

Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.

Product Specifics

Upstream Keyers

Downstream Keyers

Advanced Chroma Keyers

SuperSource

Linear/Luma Keyers

Transition Keyer (Stinger/DVE)

1 Stinger, 1 DVE.

Total Number of Layers

Pattern Generators

Colour Generators

Control Panel

Integrated panel with full control of switching and settings.

Routable Windows

Windows Source Labels

Yes

Tally

Red for the program and green for preview indication.

Talkback Support

Yes

Mix-Minus Support

Yes

Streaming Sources

Total Streaming Sources

Up to 8

Streaming Source Format

RTMP video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low-quality settings.

See the user manual for data rates.

Streaming Source Setup

Mapped to inputs in ATEM Software Control Settings.

Streaming

Direct Streaming

Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared internet connection over USB‚ÄëC.

Recording

Direct Recording Video and Audio

USB-C expansion port can record directly to external media.

Video Recording

The program can be recorded as an H.264 .mp4 file at the streaming quality setting and at the ATEM video standard with AAC audio.

SDI inputs are recorded as separate H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.

Audio Recording

Audio inputs are recorded as separate 24‚Äëbit 48KHz .wav files. Includes 8 x SDI 2-channel embedded audio inputs, 4 x analog audio inputs and up to 32 channels of MADI digital audio.

Switching

Program switching recorded as a DaVinci Resolve project .drp file.

Media

All media pool stills and clips are saved to a separate media folder.

Media Format

Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).

Multi View Monitoring

1 x multi-view via SDI and HDMI configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players, DSKs, SuperSource, and Clean Feed with optional labels and audio meters.

Multi-View Video Standard

Display Minimum Resolution

1366 x 768

Media Player

Media Players

Channels

Fill and the key for each media player.

Media Pool Still Image Capacity

Media Pool Still Image Format

PNG, TGA, BMP, GIF, JPEG and TIFF.

Media Pool Clip Capacity

2 x up to 1080p60.

Media Player Clip Length in 720 HD

400 frames.

Media Player Clip Length in 1080 HD

200 frames.

Media Pool Video File Format

TGA sequence.

Media Pool Audio File Format

WAV, MP3 and AIFF.

Processing

Processing Delay

< 10 lines when genlocked and in the same format as the switcher.

Audio Mixer

58 Channel mixer.

Selectable On/Off/Audio-Follow-Video.

Level and Peak metering.

Master gain control.

6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.

Camera Control

When used with most Blackmagic Design cameras, ATEM can control the focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, colour corrector, tally and record start/stop.

Down Conversion

None

Software

Control Panel Included

ATEM Software Control Panel is included free for Mac 12.0 Monterey, Mac 13.0 Ventura or later. and Windows 10 or 11.

Software Updates

Using USB or Ethernet connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility.

Operating Systems

Mac 12.0 Monterey,
Mac 13.0 Ventura or later.

Windows 10 and 11.

Power Requirements

Power Supply

1 x Internal 100 - 240 AC 50/60Hz with IEC C14 socket.

1 x 4 pin XLR 12V DC In for the external power supply or battery use.

Power Usage

100 W max.

Physical Installation

Desktop or in-desk mount.

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing
