Blackmagic Design Ethernet Switch 820

Name: Blackmagic Design Ethernet Switch 820
Brand: Blackmagic Design
SKU: BLA-DWCSWA/MODC820
Price: 3398.00 AUD
Availability: InStock

Blackmagic Design | SKU: BLA-DWCSWA/MODC820 | Barcode: 9338716010541

$3,398.00 $3,575.00

Tax included

Store Availability

Melbourne (Burwood) Out of Stock

▼

Out of Stock. Place a Pre-Order

📍 148 Highbury Road, Burwood, VIC 3125

☎ 03 9273 7500 • Get directions

Sydney (St Leonards) Out of Stock

▼

Out of Stock. Place a Pre-Order

📍 20/39 Herbert Street, St Leonards, NSW 2065

☎ 02 9462 8600 • Get directions

Shipping Options

Shipping Methods & Estimated Delivery Times

Australia Post Express Shipping – 1–2 business days within the same state, 1–3 business days interstate.
Australia Post Regular Shipping – 2–4 business days within the same state, 3–6 business days interstate.
StarTrack Express – 2–7 business days, depending on location.
StarTrack Premium – Next business day between capital cities and major metro areas.
Local On-Demand Delivery (Small Orders Only) – Same-day delivery within Melbourne & Sydney metro areas using Uber and Yello.

Shipping Cut-Off Time: Orders placed before 1 PM will typically be processed and dispatched the same day.

Please note: **We ship orders as a single shipment. If your order contains items with different availability, your order will be held until all items are ready to be shipped together.** Keep this in mind when placing your order. If this is an issue, please contact us at websales@videocraft.com.au to arrange for alternative shipping options.

The Blackmagic Design Ethernet Switch 820 is a high-performance network switch built specifically for broadcast and video production workflows using SMPTE-2110 IP video. It features eight 100G Ethernet ports and two 10G Ethernet ports, all rear-mounted for clean cable management, plus redundant PTP clock inputs for precision timing synchronisation across your gear. Designed for professional broadcast environments like outside broadcast vans and production trucks, it handles demanding tasks like multi-channel ISO recording with HyperDeck recorders and connecting high-speed storage like Blackmagic Cloud Store Ultra. The switch includes a dedicated NMOS control port that automatically discovers and registers 2110 IP equipment on your network without manual configuration, and front-to-back cooling with six redundant fans and dual power supplies for reliability. Whether you're building a compact fly-away kit or a full broadcast workflow, it delivers low-latency switching with the performance needed for multiple simultaneous Ultra HD streams.

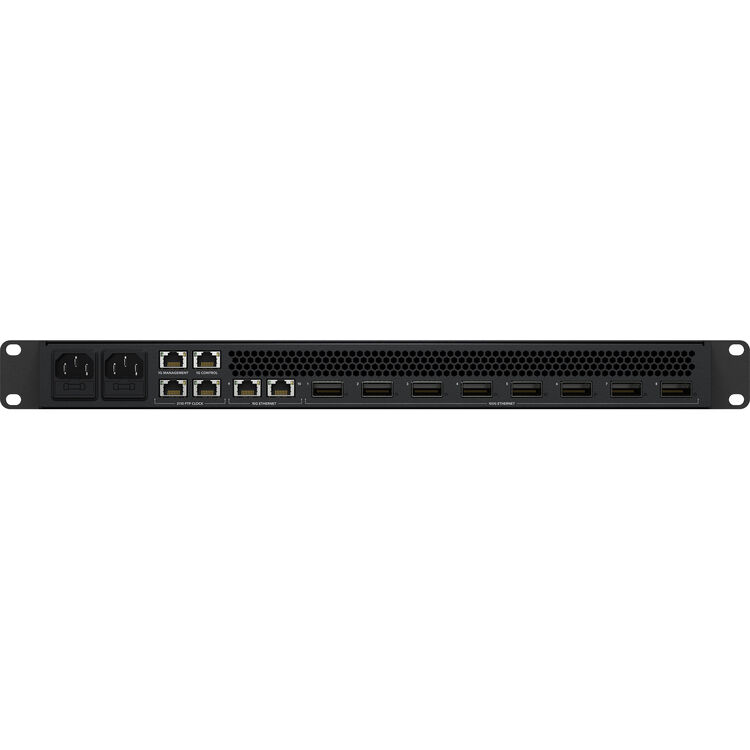

Connections

100G Ethernet Ports

8 x 100G QSFP28 connections.

10G Ethernet Ports

2 x 10G RJ45 connections.

Control Network

1 x 1G RJ45 for NMOS control.

Management Network

1 x 1G RJ45 for configuration and firmware updates.

Reference Network

2 x RJ45 Ethernet for 2110 PTP clock.

Power

2 x IEC C14 power inputs.

IP Video Compliance

Precision Time Protocol

IEEE 1588-2008 (PTP v2)

ST 2059‑1

ST 2059‑2

NMOS IS-04 Discovery and Registration

v1.3.2

Peer-to-peer via mDNS/DNS‑SD

NMOS IS-05 Connection Management

v1.1.2

NMOS BCP‑002‑01

Natural Grouping

NMOS BCP‑004‑01

Receiver capabilities

Displays

Front Panel Display

Built in 2.2 inch LCD for monitoring video, audio,video standard and timecode plus menu settings.Use search dial to scrub between all availableinputs and monitor on front panel.

2110 IP Monitor Out Sender

Displays Ethernet Switch custom name, link speedand live data transfer graph for each port.

2110 IP Monitor Out Standards

1080p50, 1080p59.94, 1080p60

Control

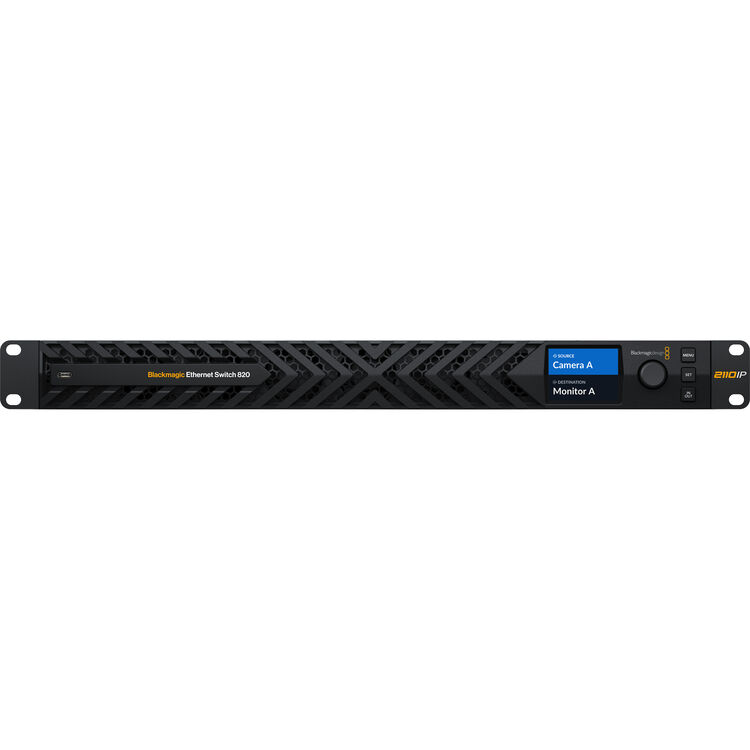

Built in Control Panel

2.2 inch color display, 3 button control panel and spin knob for source and destination setupand menu settings.

Operating Systems

Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.

Windows 10, 64-bit.
Windows 11.

Power Requirements

Power Supply

2 x 100 ‑ 240V AC 50/60Hz internal power supplies.

Power Input

2 x IEC C14 sockets.

Power Usage

TBC

Physical Installation

1 rack unit.
