Skaarhoj PTZ Extreme V2 IP Camera Controller

SKU: SKA-SKJ-PTZ-Extreme-V2B
Key Features
  • IP PTZ Camera Controller
  • Supports Multiple PTZ Encoders
  • 3-Axis Hall Effect Joystick, Zoom Rocker
  • Stepless Focus Wheels
  • RGB Backlit Keys, Aux Option Keys
  • Tally, Iris, Shutter, Gain Control
  • 4-Way Buttons with OLED Labels
  • 12 Camera Selection Buttons
  • Power Adapter Included
(0)No Reviews yet
$7,295.00
RRP:  $7,860.00
Out of Stock - Order In
Select Store to check availability.

Details

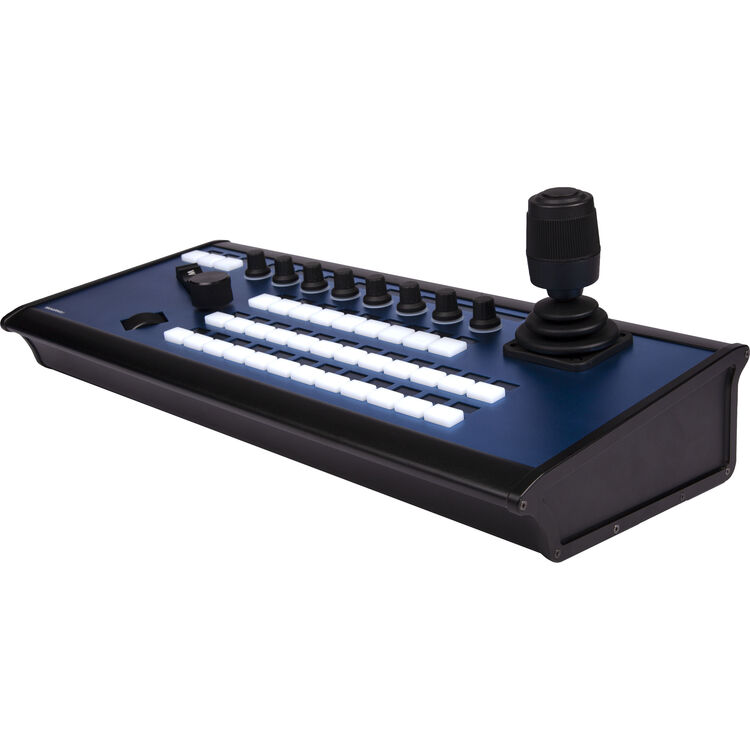

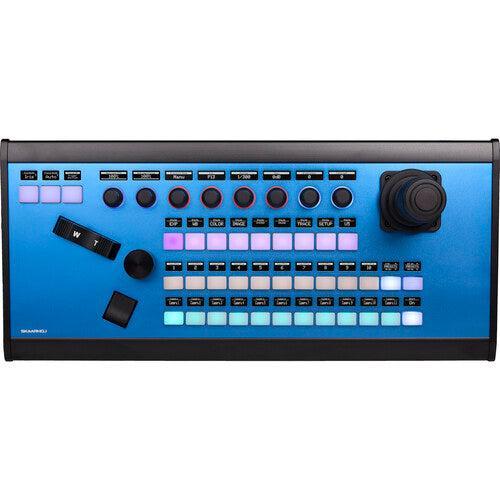

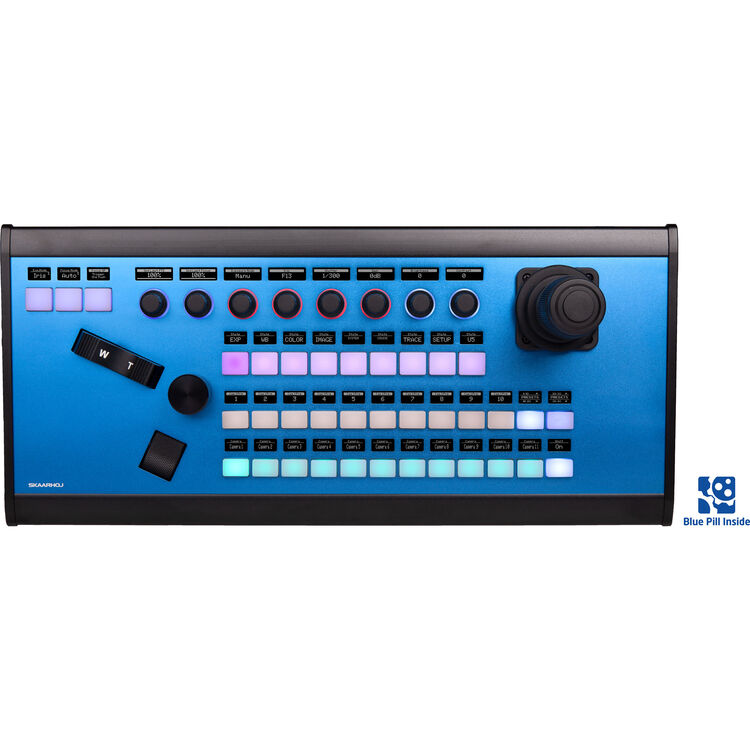

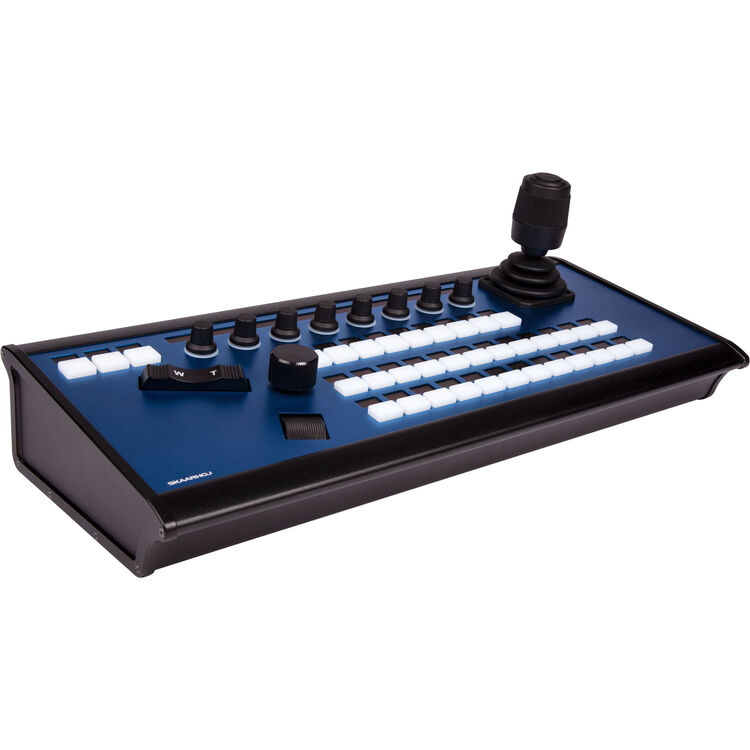

The Skaarhoj PTZ Extreme V2 IP Camera Controller features precise pan, tilt and zoom control movements and have configuration and selection of PTZ cameras. Featuring a precision 3-axis hall effect joystick, stepless focus wheels, and an aluminum zoom rocker, this compact controller makes it easy to pan, tilt, and rotate your cameras while also controlling their focus, iris, and zoom. The control panel features assignable encoder knobs, customizable OLED labels, 12 camera selection buttons, and multiple programmable multifunction keys for presets and menu navigation.


The PTZ Extreme runs the SKAARHOJ-developed open-source UniSketch OS, which is user programmable to fit specific workflows. The controller is compatible with IP-controlled cameras from brands such as AIDA, NewTek, Vaddio, BirdDog, Panasonic, PTZ Optics, Bolin, and eMotimo. A power adapter, USB programming cable, and an Ethernet cable are included in the box to get you started.


Key Features
Backlit encoder knobs and a bright status display

Three-axis joystick, aluminum zoom rocker, and stepless focus wheels

Backlit LED displays for labels

Camera select buttons and programmable multifunction keys

Tally communication

Slim, ergonomic console form factor

UniSketch OS

Compatibility

Works with a wide range of devices and systems including:
Canon CR-N300 and CR-N500
NewTek NDI-HX PTZ1
Panasonic PTZ
Vaddio RoboSHOT
BirdDog P200
PTZOptics PTx
NewTek PTZUHD
Skaarhoj Raw Panel
eMotimo ST4 Multicam
Bolin 4K



Specifications

General
Number of Supported Cameras12 Channels
Supported Control ProtocolsIP
Control Interface1 x RJ45 (IP Control, VISCA) Output
Other I/O1 x USB Micro-B (USB 3.1 / USB 3.2 Gen 1) Input
Controls1 x Pan/Tilt Joystick
1 x Focus Knob
4 x Zoom Rockers
12 x Multifunction, Camera Selection Buttons
12 x Multifunction Buttons
9 x Programmable Buttons
Display
TouchscreenNo
Power
PoE SupportNone
Power Connectors1 x JEITA
Power Consumption6.9 W
DC Input Power12 VDC
Physical
Security Lock SupportNone
Dimensions15.7 x 7 x 2.8" / 39.8 x 17.8 x 7.2 cm
Weight4.2 lb / 1.9 kg

What's In The Box

  • SKAARHOJ PTZ Extreme 2020 IP Camera Controller
  • 12V Power Supply
  • USB Cable
  • Ethernet Cable
  • Limited 1-Year Warranty
