Details

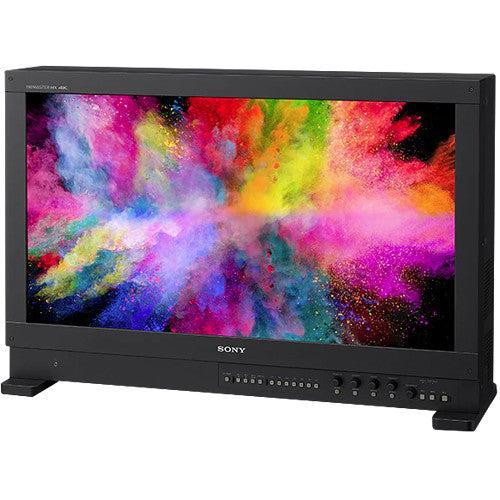

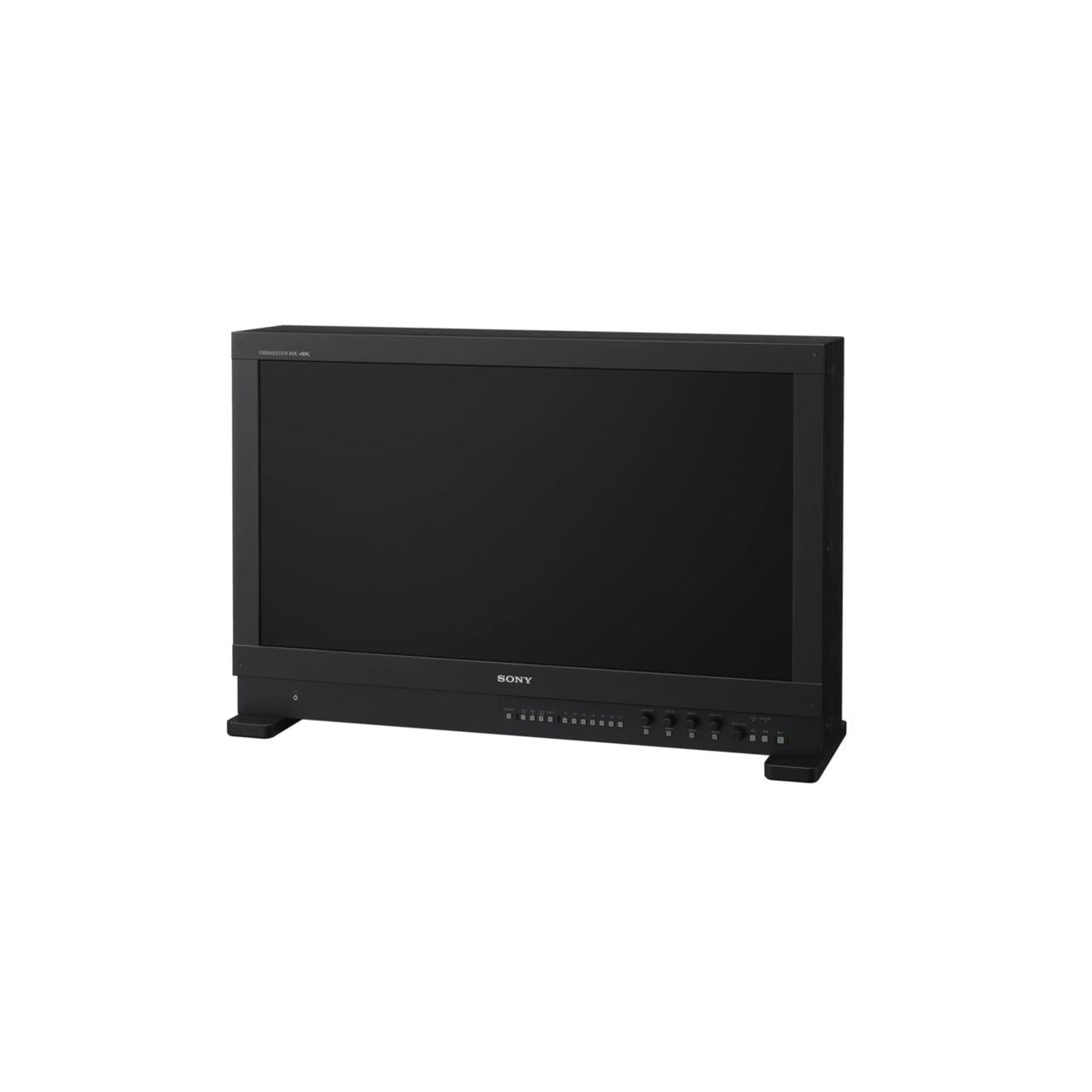

The Sony BVM-HX310 4K 31 Inch Professional Grade 1 reference monitor offers accurate color reproduction and high-contrast performance in response to the industry’s desire for accurate picture evaluation and precision for critical picture grading decisions. The Sony BVM-HX310 is fully capable of reproducing 4K and High Dynamic Range (HDR) content, supports industry standard brightness of up to 1,000 nits in full-screen and a 1,000,000:1 contrast ratio for HDR productions. The new TRIMASTER HX is spec’d to incorporate 1,000,000:1 contrast LCD panel and its unique panel controlling technology to deliver consistent picture quality, accurate color reproduction with the deepest blacks, and provide high-contrast performance consistent with other reference monitors from Sony such as the BVM-X300. The BVM-HX310 supports all industry standards and hosts all major HDR EOTF and 12G-SDI is supported, enabling simple 4K transmission with a single SDI cable. It handles ITU-R BT.2020 color space and HDR images with Hybrid Log Gamma, SMPTE ST2084 and 2.4 (HDR) gamma alongside S-Log2, S-Log3 and S-Log3 Live HDR for SR Live Workflow.
The Sony BVM-HX310’s User LUT function will allow operators to load pre-defined Look Up Tables based on their viewing requirements; Onset or in Post Production. It also offers a Quad View mode, allowing up to four customized individual display settings across the monitor in HD (including EOTF, color space, transfer matrix, user LUTs and color temperature).
| Panel | α-Si TFT Active Matrix LCD |
| Picture size (diagonal) | 789.1 mm (31.1 inches) |
| Effective Picture size (H x V) | 698.0 x 368.1 mm (27 1/2 x 14 1/2 inches) |
| Resolution (H x V) | 4096 x 2160 pixels |
| Aspect | 17 : 9 (1.89 : 1) |
| Pixel efficiency | 99,99% |
| Panel drive | 10-bit |
| Panel frame rate | 48 Hz / 50 Hz / 60 Hz (48 Hz and 60 Hz are also compatible with 1/1.001 frame rates) |
| Viewing angle (panel specification) | 89°/89°/89°/89° (up/down/left/right contrast > 10:1) |
| Colour temperature | D55, D61, D65, D93, DCI*1, and user 1-5 (5,000 K to 10,000 K adjustable), DCI XYZ |
| Luminance (panel specification) (typical) | 1000 cd/m2 |
| Colour space (Colour gamut) | ITU-R BT.2020*2, ITU-R BT.709, EBU, SMPTE-C, DCI-P3*2, Native*3, S-GAMUT3*2, S-GAMUT3.cine*2 |
| Transmission Matrix | ITU-R BT.2020 (Non-constant luminance is supported), ITU-R BT.709 |
| EOTF | 2.2, 2.4, 2.6, CRT, 2.4 (HDR), S-Log3 (HDR), S-Log3 (Live HDR), S-Log2 (HDR), SMPTE ST 2084(HDR), ITU-BT.2100(HLG) |
| SDI 1 input | (3G/HD) BNC type (x4) Input impedance: 75 Ω unbalanced |
| SDI 2 input | (12G/6G/3G/HD) BNC type (x2) , (3G/HD) BNC type (x2), Input impedance: 75 Ω unbalanced |
| HDMI | HDMI (HDCP2.3/1.4) (x1) |
| Serial remote (LAN) | Ethernet (10BASE-T/100BASE-TX), RJ-45 (x1) |
| SDI 1 MONITOR output | (3G/HD) BNC type (x4) , Output impedance: 75 Ω unbalanced |
| SDI 2 output | (12G/6G/3G/HD) BNC type (x2) , (3G/HD) BNC type (x2) , Output impedance: 75 Ω unbalanced |
| Audio monitor | Stereo mini jack (x1) |
| Headphones | Stereo mini jack (x1) |
| Power requirement | AC 100 V to 240 V, 5.1 A to 2.1 A, 50/60 Hz |
| Power consumption | Approx. 450W (max.) |
| Operating temperature | 0°C to 35°C (32°F to 95°F) Recommended: 20°C to 30°C (68°F to 86°F) |
| Operating humidity | 30% to 85% (no condensation) |
| Storage / transport temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage / transport humidity | 0% to 90% |
| Operating / storage / transport pressure | 700 hPa to 1060 hPa |
| Dimensions (W x H x D) | 778 x 519.5 x 230 mm (30 3/4 x 20 1/2 x 9 1/8 inches) |
| Mass Approx. | 30kg (66 lb 2 oz) |
| Supplied accessories | AC power cord (1), AC plug holder (1), CD-ROM (1), Before Using This Unit (1) |
