Sony ECM88B Miniature Omni-Directional Lavalier Microphone and DC-78 Power Supply
SKU: SON-ECM88B
Want to try before you buy? Why not hire it from our rental fleet?
Details

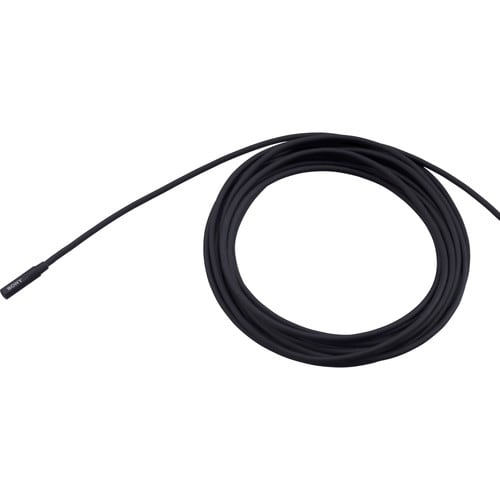

The Sony ECM88B Miniature Omni-Directional Lavalier Microphone and DC-78 Power Supply is a miniature condenser, lavalier microphone. This version includes the DC-78 power supply with XLR output connection. The capsule is 3.5 x 3.5 x 16.8mm, allowing natural-looking concealment on stage or camera. The electret condenser element uses a dual-diaphragm mechanism, resulting in high sensitivity. The microphone provides a flat, wide frequency response (20Hz to 20kHz) resulting in a natural sound reproduction, capturing in great detail. The water resistant design assures durability from the elements as well as moisture caused by sweat in stage applications.
Specifications
Transducer | Electret Condenser |
Polar Pattern | Omnidirectional |
Frequency Response | 20Hz - 20kHz |
Dynamic Range (Typical) | Greater than 99 dB |
Signal-to-Noise Ratio | 62 dB @ 1kHz (A-weighted, 1khz, 1Pa.) |
Maximum Input Sound Level | 125 dB SPL |
Power Requirements | DC 1.1 to 10 Volts |
Output Impedance | 100 ohms +/- 20% (when used in combination with the DC-78) |

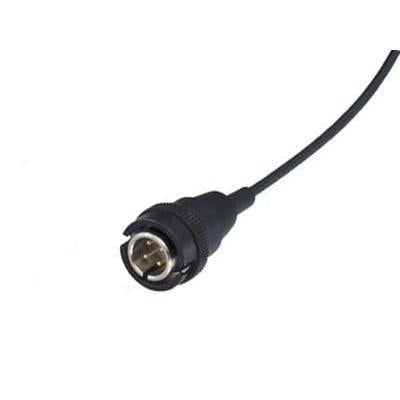

Output Connectors | ECM-88B: Sony SMC9-4P Integrates with DC-78 with XLR output |
Pad | None |
Low Frequency Roll-Off | None |
Applications | Radio, Television and Broadcast. |
Dimensions | 0.14 x 0.14 x 0.66" (3.5 x 3.5 x 16.8mm) |
Weight | 0.71 oz. (32 grams) (with cable) |
What's In The Box

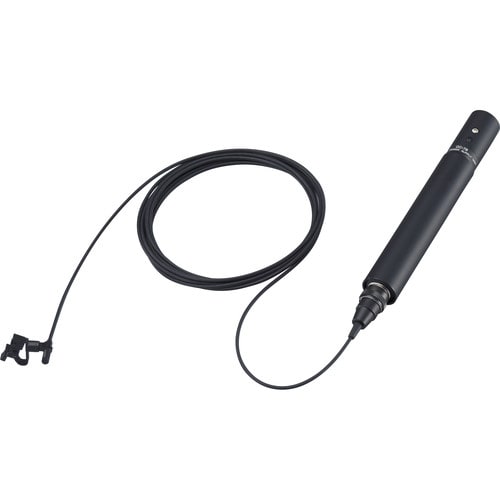

Sony ECM88B - Miniature Omni-Directional Lavalier Microphone and DC-78 Power Supply

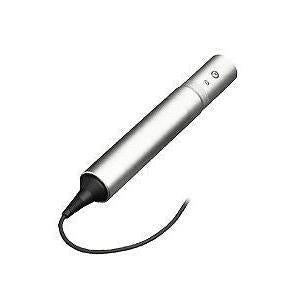

- DC-78 Power Connector
- Horizontal Clip
- Vertical Clip
- Double Clip
- Urethane windscreen
- Carrying Case
