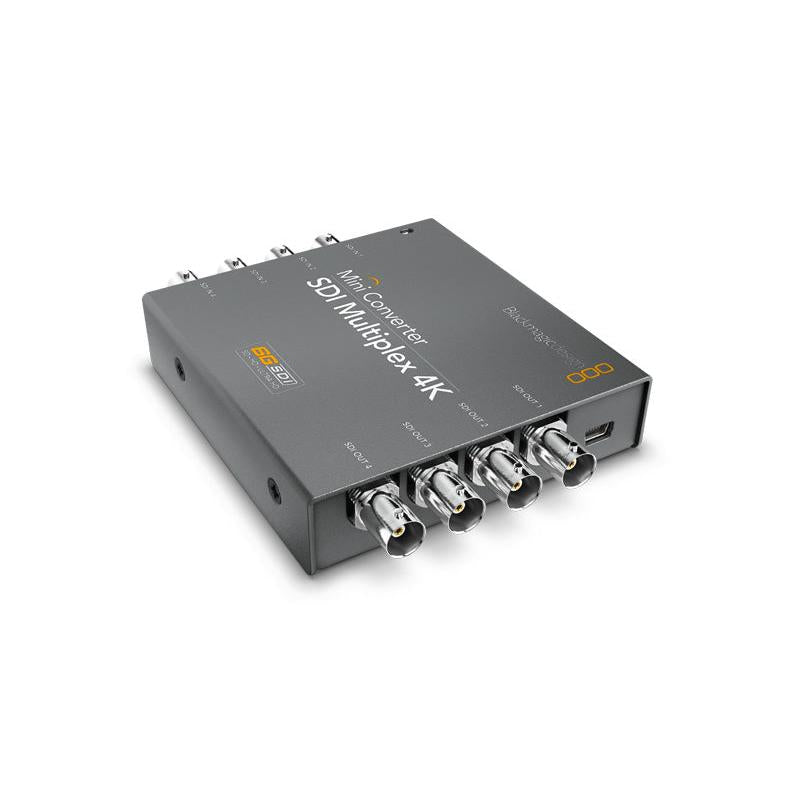

Blackmagic Design Mini Converter SDI Multiplex 4K

CODE: CONVMSDIMUX4K

Quick Overview

Main Features:

  • Convert Between 4K and UHD SDI Signals
  • Single Link 6G-SDI Input & Output
  • Dual Link 3G-SDI Input & Output
  • Quad Link HD-SDI Input & Output
  • Automatic SD, HD, and 6G Switching
  • Output Resolution Matches Input
  • 48kHz 24-Bit Audio
  • 4:2:2 and 4:4:4 RGB and YUV Support
  • USB 2.0 Port for Updates
  • 12V Universal Power Supply Included

Buy This Product

RRP $765.00 inc GST

Special Price $705.00 inc GST

Usually ships in 3-5 business days

Rent This Product

Rent Price Options:

$30.00

$120.00

$360.00

Ask your own question

Details

The Blackmagic Design Mini Converter SDI Multiplex 4K allows you to convert between Quad Link HD-SDI, Dual Link 3G-SDI, and Single Link 6G-SDI Ultra HD (UHD) signals. This is useful for connecting devices that use Quad and Dual Link UHD signals with those that use Single Link 6G signals. You can also convert between Dual Link HD-SDI 4:4:4 and Single Link 3G-SDI.





The output signal from the Mini Converter will have a matching resolution and frame rate as the input signal. Embedded SDI audio is sampled at 48kHz and 24-bit. When inputting a single SD or HD SDI signal, all four SDI outputs are active and pass through the incoming signal with no conversion. This also applies for 6G-SDI signals when no Dual Link or Quad Link conversion is selected. This lets you take a single SD/HD/6G-SDI signal and send it to four separate devices. For powering the Mini Converter, a 12V universal power supply comes included.

SDI Video Input 4 x 1.5 Gb/s HD-SDI
2 x 3G-SDI
1 x 6G-SDI
SDI Output 4 x 6G-SDI
Multi-Rate Support Auto detection of SD, HD, or 6G-SDI on Input 1
USB Connection USB 2.0
Reclocking Yes
SDI Format Support SD:
525/23.98 and 525/29.97 NTSC
625/25 PAL

HD:
720p 50/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24/25/29.97/30

2K:
2048x1080p 23.98/24/25
2048x1080PsF 23.98/24/25

4K/UHD:
3840x2160p 23.98/24/25/29.97/30
4096x2160p 24
SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M and SMPTE 425M
SDI Video Rates Switchable between SD, HD, and 6G-SDI
SDI Video Sampling 4:2:2 and 4:4:4
SDI Audio Sampling 24 bit, 48 kHz
SDI Color Precision 4:2:2 and 4:4:4
SDI Color Space YUV and RGB
SDI Auto Switching Automatically detects SD, HD, or 6G-SDI
Software Control Mac OS X and Windows software upgrade via USB
Internal Software Upgrade Via USB 2.0 using included Converter Utility software

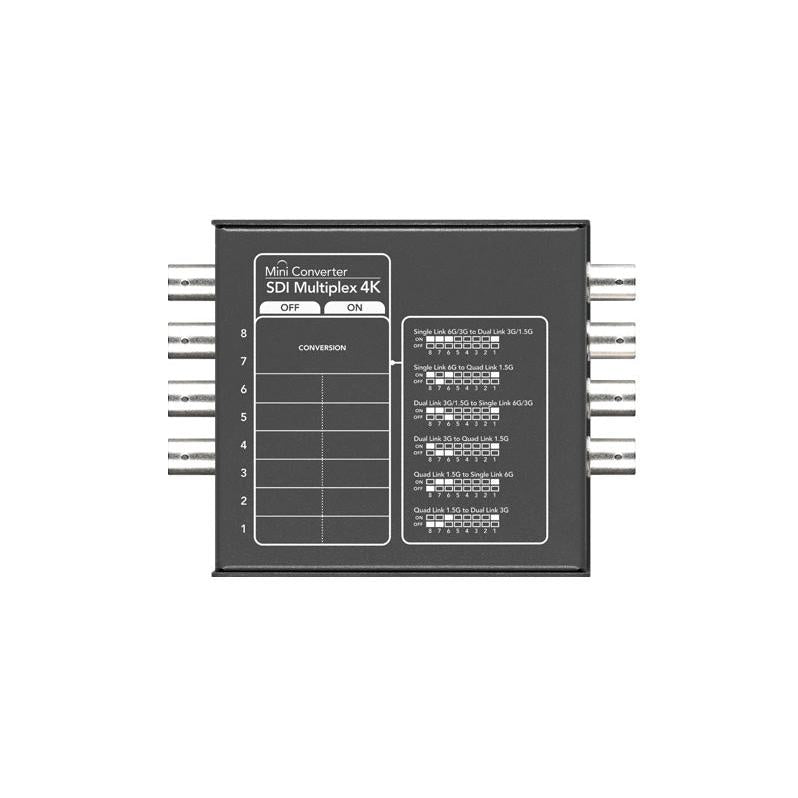

Settings Control DIP switches or Converter Utility software via USB
Power Supply 12 V
Operational Voltage Range 12 to 30 VDC
Power Consumption 5.2 W
Blackmagic Design Mini Converter SDI Multiplex 4K
  • 12V Universal Power Supply
