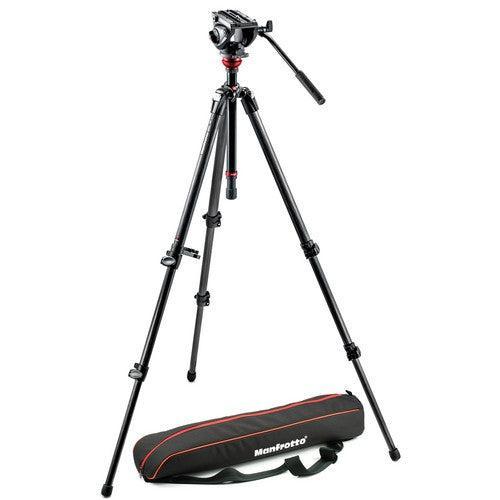

Manfrotto MVH500AH Fluid Head & 755CX3 MagFibre Tripod with Carrying Bag


Main Features:

  • Flat Base Fluid Head with 5kg Payload
  • Wide Platform Ideal for DSLRs
  • -70° / +90° Tilt & 360° Pan
  • 500PLONG Camera Plate Included
  • Two-Stage Carbon Fiber Tripod
  • Flip-Lever Lock Clamps
  • Adjustable and Removable Center-Column
  • 164cm Max Height, Center Column Raised
  • Padded, Zippered Over-the-Shoulder Bag

Configuration:  755CX3 MagFibre Tripod | MVH500AH Aluminum Tripod

(0) No Reviews yet
RRP:  $1,590.00
Out of Stock - Order In
Select store to check availability.


The Manfrotto MVH500AH Fluid Head & 755CX3 MagFibre Tripod with Carrying Bag from Manfrotto includes a flat base fluid video head, a flat base two-stage tripod, and a black and red over-the-shoulder carrying bag. The bag is padded, has a zipper running along its full length, and fits the tripod and head. The head features a wider-than-standard platform to provide better support for DSLRs. The maximum load capacity is 5kg. A 500PLONG quick release plate is included, and a side lock system on the head allows the plate to efficiently attach and click in from above, instead of aligning and sliding in from one end. Fluid cartridges on both the pan and tilt axes provide resistance for smooth, controlled pan and tilt. The tilt range is -70° / +90° and the pan rotation is 360°. The spring-loaded counterbalance is preset at 2.4kg. The camera plate has both 1/4"-20 and 3/8"-16 camera screws, and the head has a 3/8"-16 tripod mounting thread, with a 3/8" thread on the side for attaching accessories, such as a video monitor.

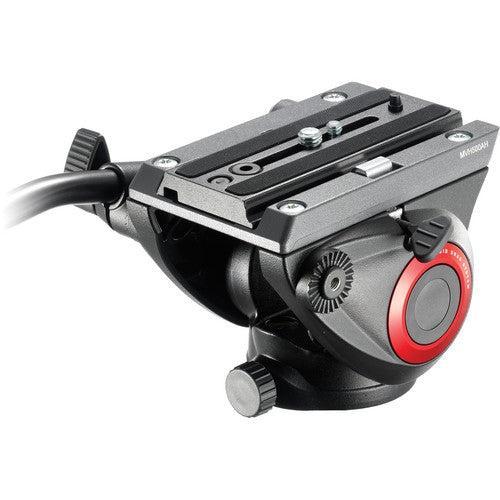

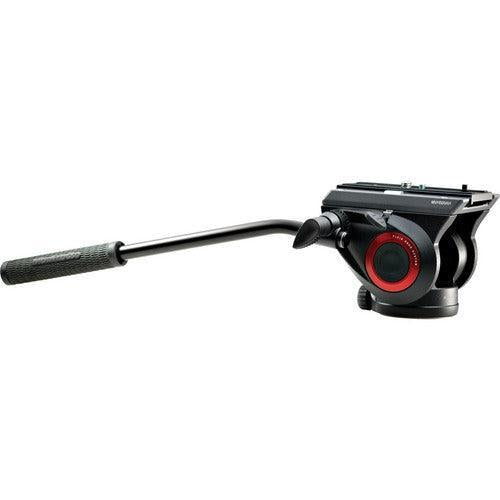

MVH500AH Fluid Video Head
Load Capacity11 lb (5 kg)
Tripod Mounting Thread3/8"-16
Camera Screw1/4"-20 and 3/8"-16
MaterialAluminum alloy
Counter Balance SystemYes, counterbalance range preset to 5.3 lb (2.4 kg)
Camera Plate500PLONG Quick release plate
Tilt DragYes, fluid cartridge with fixed drag
Tilt Range-70° / +90°
Tilt LockYes
Spring Loaded Counter BalanceYes
Pan LockYes
Pan Range360°
Pan BarOne pan bar included
Leveling Bubble / IlluminatedYes / No
Temperature Range-4 to 140°F (-20 to 60°C)
Working Height3.74" (9.5 cm)
Weight2 lb (.9 kg)
755CX3 2-Stage Tripod
Load Capacity15.4 lb (7 kg)
MaterialCarbon fiber
Fluid Head Screw3/8"-16
Minimum Height18.3" (46.5 cm)
Maximum Height54.7" (139 cm)
Maximum Height with Column64.6" (164 cm)
Leg Stages2
Leg Sections3
Leg Lock TypeFlip-lever
Center Brace / Mid-Level SpreaderNo
Spiked / Retractable FeetNo
Center Column1, sliding
Folded Length25" (63.5 cm)
Weight4.25 lb (1.9 kg)

What's In The Box

Manfrotto MVH500AH Fluid Head & 755CX3 MagFibre Tripod with Carrying Bag
  • MVH500AH Fluid Video Head with Flat Base
  • 755CX3 MagFibre Video Tripod Legs with Rapid Center Column
  • Red & Black Tripod Carrying Bag
  • Limited 6-Month Warranty, Extendable to 5 Years with Product Registration.
