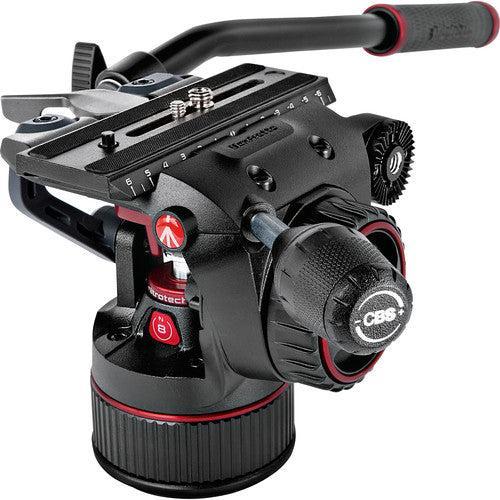

The Manfrotto Nitrotech N8 Video Head features an innovative, continuous counterbalance system based on a nitrogen-piston mechanism. Unlike heads with stepped levels of counterbalance, the Nitrotech N8 can be precisely adjusted to the weight of your camera rig. Adjust the counterbalance by twisting the knob on the left side towards the front of the head. The knob itself can be extended with a pull, adding room useful with a wider camera. With a maximum payload capacity of 7.9kg, the Nitrotech N8 is designed to be used with a variety of video or DSLR/MFT camera rigs. This 75mm flat-base head can be used with a half-ball adapter (available separately) for maximum flexibility in mounting to tripods, sliders, hi-hats, or other supports.
The Manfrotto Nitrotech N8 includes several pro-style features for reliable, efficient use of the head. The included camera mounting plate locks in from the side, and it has a sliding design to help balance the rig on the head. Smooth panning and tilting moves are enabled by the Nitrotech N8's variable fluid drag systems. A push-button illuminated bubble at the rear of the head lets you see at a glance if the head is leveled. Unlike some other Manfrotto heads, the N8's controls are on the left side of the head, freeing your right hand to operate the panhandle.
Features:
Load Capacity | 17.6 lb (7.9 kg) |
Tripod Head | 75 mm flat base |
Balance Plate | Sliding, 1/4" and 3/8" screws |
Center of Gravity | 2.2" (55 mm) |
Tilt Drag | Fluid |
Tilt Range | -70 to +90° |
Counterbalance System | Continuous, nitrogen piston |
Pan Range | 360° |
Pan Drag | Fluid |
Leveling Bubble/Illuminated | Yes/Yes |
Material of Construction | Aluminum |
Height | 5.8" (14.7 cm) |
Weight | 4.84 lb (2.2 kg) |
Packaging Info | |
---|---|
Package Weight | 6.6 lb |
Box Dimensions (LxWxH) | 14.5 x 9.8 x 7.9" |
