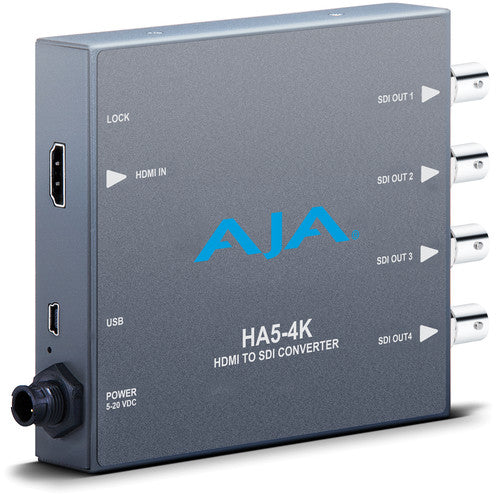

The AJA HA5-4K 4K HDMI to 4K SDI Mini-Converter provides high-quality conversion of 4K HDMI to 4K SDI via a quad-link 3G-SDI output at frame rates up to 50/60 fps. It also supports SD, HD, and 2K HDMI to SDI conversion as well. The HA5-4K automatically senses incoming HD/2K resolution HDMI signals and converts them to a single 3G-SDI output. Up to eight channels of HDMI-embedded audio can be passed through to the SDI output, ensuring your audio is always in sync with the SDI signal. The HA5-Plus features a compact, portable, and rugged design and comes with a universal power supply with international plugs for use worldwide.

Note: HDCP content is not supported on HDMI input.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

ideo Input
Connector	HDMI standard type A
HDMI Support	HDMI v1.4b, RGB or YCbCr HDMI v2.0, YCbCr, 4:2:0 only 3840 x 2160p @ 50, 59.94, 60 4096 x 2160p @ 50, 59.94, 60 24 bits per pixel

Video Input
4K Support	4096 x 2160p @ 23.98, 24, 25, 29.97, 30 4096 x 2160p @ 50, 59.94, 60 (4:2:0 only) 3840 x 2160p @ 23.98, 24, 25, 29.97, 30 3840 x 2160p @ 50, 59.94, 60 (4:2:0 only)
HD	2048 x 1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1920 x 1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1920 x 1080i @ 25, 29.97, 30 1280 x 720p @ 50, 59.94, 60
SD	625i @ 25 576p @ 25 525i @ 29.97 480p @ 29.97

HD/SDI Video Outputs
Format	3G-SDI (auto-selected)
Connectors	4 x BNC

Video Outputs
3G-SDI	4 x 3G-SDI (Level A or B): 4096 x 2160p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 3840 x 2160p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
3G-SDI	Level A: 1280 x 720p @ 50, 59.94, 60 Level A or B: 2048 x 1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1920 x 1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1920 x 1080i @ 25, 29.97, 30
HD-SDI	4 x HD-SDI: 4096 x 2160p @ 23.98, 24, 25, 29.97, 30 3840 x 2160p @ 23.98, 24, 25, 29.97, 30
HD-SDI	2048 x 1080p @ 23.98, 24, 25, 29.97, 30 1920 x 1080p @ 23.98, 24, 25, 29.97, 30 1920 x 1080i @ 25, 29.97, 30 1280 x 720p @ 50, 59.94, 60
SD-SDI	625i @ 25 525i @ 29.97

Audio
Input	HDMI embedded audio, 24-bit, 2-channel
Output	SDI embedded audio, 24-bit, 2-channel

AJA HA5 4K HDMI to 4K SDI Mini-Converter

Shipping Options

Shipping Methods & Estimated Delivery Times

Payment & Security

Your cart

Company

More Information

Choose options

General
Power Supply	Uses DWP-U-R1 Power Supply (included) 100 to 240 VAC, 50/60 Hz universal input +5 to 20 VDC regulated, 10 W capacity
Dimensions	5.8 x 3.9 x 0.8" (14.7 x 9.9 x 2.0 cm)
