Blackmagic Design Mini Converter Quad SDI to HDMI 4K 2

Blackmagic Design  |  SKU: BLA-CONVMBSQUH4K2
$718.00 $789.00
Tax included Shipping calculated at checkout.

Shipping Options
Shipping Methods & Estimated Delivery Times
  •  Australia Post Express Shipping – 1–2 business days within the same state, 1–3 business days interstate.
  •  Australia Post Regular Shipping – 2–4 business days within the same state, 3–6 business days interstate.
  •  StarTrack Express – 2–7 business days, depending on location.
  •  StarTrack Premium – Next business day between capital cities and major metro areas.
  •  Local On-Demand Delivery (Small Orders Only) – Same-day delivery within Melbourne & Sydney metro areas using Uber and Yello.

Shipping Cut-Off Time: Orders placed before 2 PM will typically be processed and dispatched the same day.

Please note: **We ship orders as a single shipment. If your order contains items with different availability, your order will be held until all items are ready to be shipped together.** Keep this in mind when placing your order. If this is an issue, please contact us at websales@videocraft.com.au to arrange for alternative shipping options.

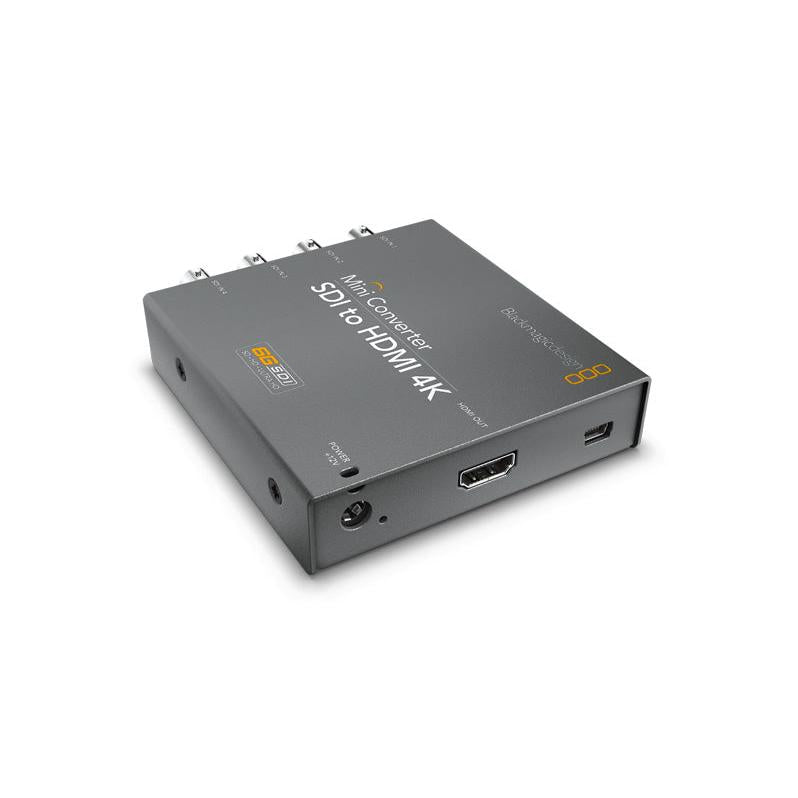

The Blackmagic Design Mini Converter Quad SDI to HDMI 4K allows you to convert single link 6G-SDI, dual link 3G-SDI, or quad link HD-SDI to a single 4K HDMI output. This allows you to use professional SDI equipment that outputs Ultra HD 4K (3840 x 2160) and DCI 4K (4096 x 2160) video signals with projectors and televisions that support 4K over a single HDMI cable. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.



Using 4K HDMI and 6G-SDI technologies, the Mini Converter supports resolutions up to UHD 4K at up to 30 fps and DCI 4K at 24 fps, as well as NTSC/PAL SD and HD formats. The Mini Converter features four BNC connectors: Input 1 accepts single link SD/HD/3G/6G-SDI signals, Input 2 adds support for dual link HD/3G-SDI, and Input 3 and 4 add the remaining channels required for quad link HD-SDI signals. Input 1 automatically detects between SD, HD, 3G, and 6G-SDI signals. When inputting UHD sources and the HDMI output detects an HDTV or HD monitor, the output signal is automatically down-converted from UHD to HD.

The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.



Features:

  • Accepts single link 6G-SDI, dual link 3G-SDI, or quad link HD-SDI
  • 4K HDMI output
  • SD, HD, UHD 4K (3840x2160), and DCI 4K (4096x2160) resolutions
  • Automatic input signal detection
  • 4:2:2 and 4:4:4 sampling and color precision
  • 24-bit, 48 kHz audio sampling
  • Dip switch and software control
  • USB 2.0 port for firmware updates
  • 12V power supply with international socket adapters
