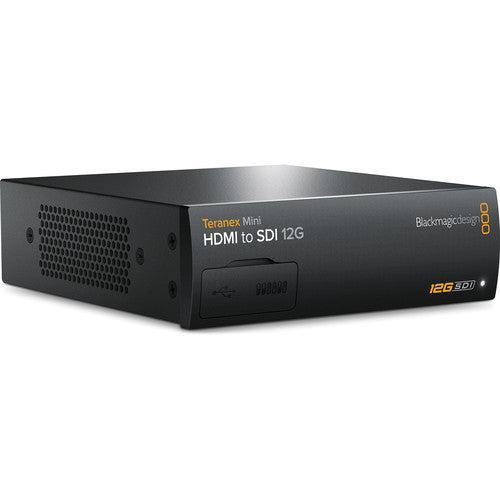

Blackmagic Design Teranex Mini HDMI to SDI 12G Converter

The Blackmagic Design Teranex Mini HDMI to SDI 12G Converter is a highly improved solution for rack-mount as well as cable duct and desktop installations. It supports up to 12G-SDI data rates with intelligent heat dissipation, and offering features such as XLR connections and an Ethernet control and PoE port, Connect an HDMI signal in up to Full 4K DCI 4096x2160p resolution and route it out over up to two independent 12G-SDI outputs in the same resolution. Route 4096x2160p signals approximately 70 ft using 6G-SDI cables, and run lower-resolution signals, such as 3G-SDI or HD-SDI, for much longer than standard lengths. When 12G-SDI cables will be available on the market, you'll be able to run 4K DCI 4096x2160p signals for over 250 ft. You can also connect separate audio via full-size XLR inputs that are switchable between balanced analog and AES/EBU digital audio.

Key Features

• Supports up to Full 4K DCI 4096x2160p signals on input and output
• Two independent 12G-SDI outputs
• Run 4096x2160p signals approximately 70 ft using 6G-SDI cables

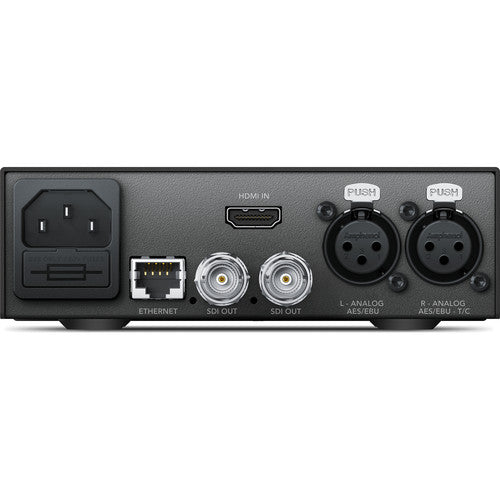

• Full-size XLR connections switchable between balanced analog and AES/EBU audio
• Ethernet remote control and PoE port
• Intelligent thermal design heat dissipation effectively prevents overheating
• Three units are rack-mountable in a 1U 19" rack using an optional rack tray
• Can be used desktop mounted or installed concealed in cable ducts
• Built-in 90-240V power supply requiring only a standard IEC power cable, sold separately
• An array of mini switches allow instant settings changes
• Front panel is replaceable with an optional Smart Panel featuring controls and an LCD
• Manage numerous units simultaneously using the included Converter Utility software
• Full SDI re-clocking and low jitter
