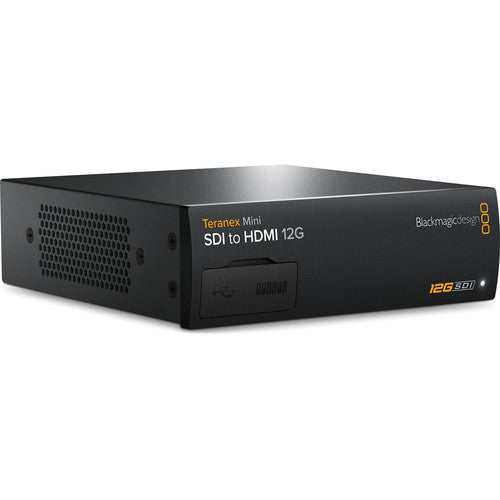

Blackmagic Design Teranex Mini SDI to HDMI 12G Converter

The Blackmagic Design Teranex Mini SDI to HDMI 12G Converter supports up to 12G-SDI data rates with intelligent heat dissipation, and offering features such as XLR connections and an Ethernet control and PoE port, , is a highly improved solution for rack-mount as well as cable duct and desktop installations. Connect up to a Full 4K DCI 4096x2160p SDI signal and run it out to an HDMI display in the same DCI 4K resolution, and monitor the signal locally via an SDI loopout. You can also de-embed audio from the signal and route it separately via full-size XLR connectors that are switchable between balanced analog and AES/EBU digital audio.

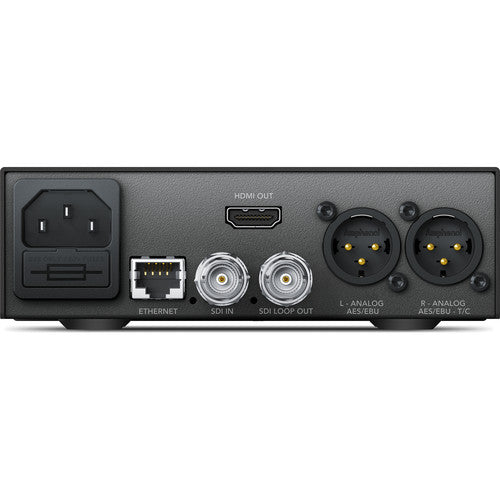

The compact size of the Teranex Mini makes it very useful for portable racks at live events or in broadcast trucks. Up to three units can easily be installed in an optional 1U 19" rack tray, and they can just as easily be removed, and all this with the advantage of 12G-SDI capability. The Ethernet port on the rear will allow you to manage the Teranex Mini remotely or can alternatively be used for power over Ethernet. If you don't want to use power over Ethernet, you won't have to deal with cumbersome power supplies, as the Teranex Mini features a built-in 90-240V power supply, and all you'll need is a standard IEC power cable, sold separately.

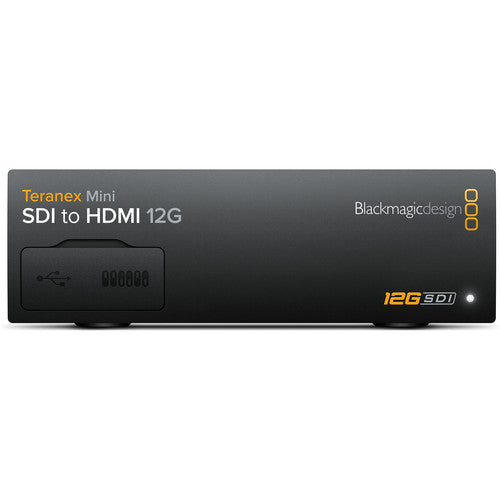

A major benefit of the Teranex Mini is that the standard front panel can be replaced with an optional Smart Panel that features a spin knob, color LCD, and six control buttons, including a menu button. The substantially large LCD will show you the video conversion in progress and will also let you monitor audio levels as well as verify timecode and the video standard being converted. The standard front panel simply comes off and the Smart Panel easily attaches in its place. When you're using the standard front panel, you'll have access to an array of mini switches that will let you change settings instantly in correspondence with a diagram printed on the converter. If you swap in the optional Smart Panel, you'll instead be able to use simple on-screen menus as well as see exactly what you're converting. If you're in a larger facility using numerous converters, you can manage all of them over Ethernet from a Mac or Windows computer using the included Converter Utility software.

Features

• Supports up to Full 4K DCI 4096x2160p signals on input and output
• 12G-SDI input and loopout
• Full-size XLR connections switchable between balanced analog and AES/EBU audio
• Ethernet remote control and PoE port
• Intelligent thermal design heat dissipation effectively prevents overheating
• Three units are rack-mountable in a 1U 19" rack using an optional rack tray
• Can be used desktop mounted or installed concealed in cable ducts
• Built-in 90-240V power supply requiring only a standard IEC power cable, sold separately
• An array of mini switches allow instant settings changes
• Front panel is replaceable with an optional Smart Panel featuring controls and an LCD
• Manage numerous units simultaneously using the included Converter Utility software
• Full SDI re-clocking and low jitter
