Blackmagic Design UltraStudio Mini Recorder 12G

Name: Blackmagic Design UltraStudio Mini Recorder 12G
Brand: Blackmagic Design
SKU: BLA-BDLKULSDZMINREC12G
Price: 579.00 AUD
Availability: InStock

Blackmagic Design | SKU: BLA-BDLKULSDZMINREC12G | Barcode: 9338716010428

Blackmagic UltraStudio Mini 12G Range:

Recorder $579.00 Monitor $579.00 Replay $715.00

$579.00 $625.00

Tax included

Store Availability

Melbourne (Burwood) Out of Stock

▼

Out of Stock. Place a Backorder

📍 148 Highbury Road, Burwood, VIC 3125

☎ 03 9273 7500 • Get directions

Sydney (St Leonards) Out of Stock

▼

Out of Stock. Place a Backorder

📍 20/39 Herbert Street, St Leonards, NSW 2065

☎ 02 9462 8600 • Get directions

Shipping Options

Shipping Methods & Estimated Delivery Times

Australia Post Express Shipping – 1–2 business days within the same state, 1–3 business days interstate.
Australia Post Regular Shipping – 2–4 business days within the same state, 3–6 business days interstate.
StarTrack Express – 2–7 business days, depending on location.
StarTrack Premium – Next business day between capital cities and major metro areas.
Local On-Demand Delivery (Small Orders Only) – Same-day delivery within Melbourne & Sydney metro areas using Uber and Yello.

Shipping Cut-Off Time: Orders placed before 1 PM will typically be processed and dispatched the same day.

Please note: **We ship orders as a single shipment. If your order contains items with different availability, your order will be held until all items are ready to be shipped together.** Keep this in mind when placing your order. If this is an issue, please contact us at websales@videocraft.com.au to arrange for alternative shipping options.

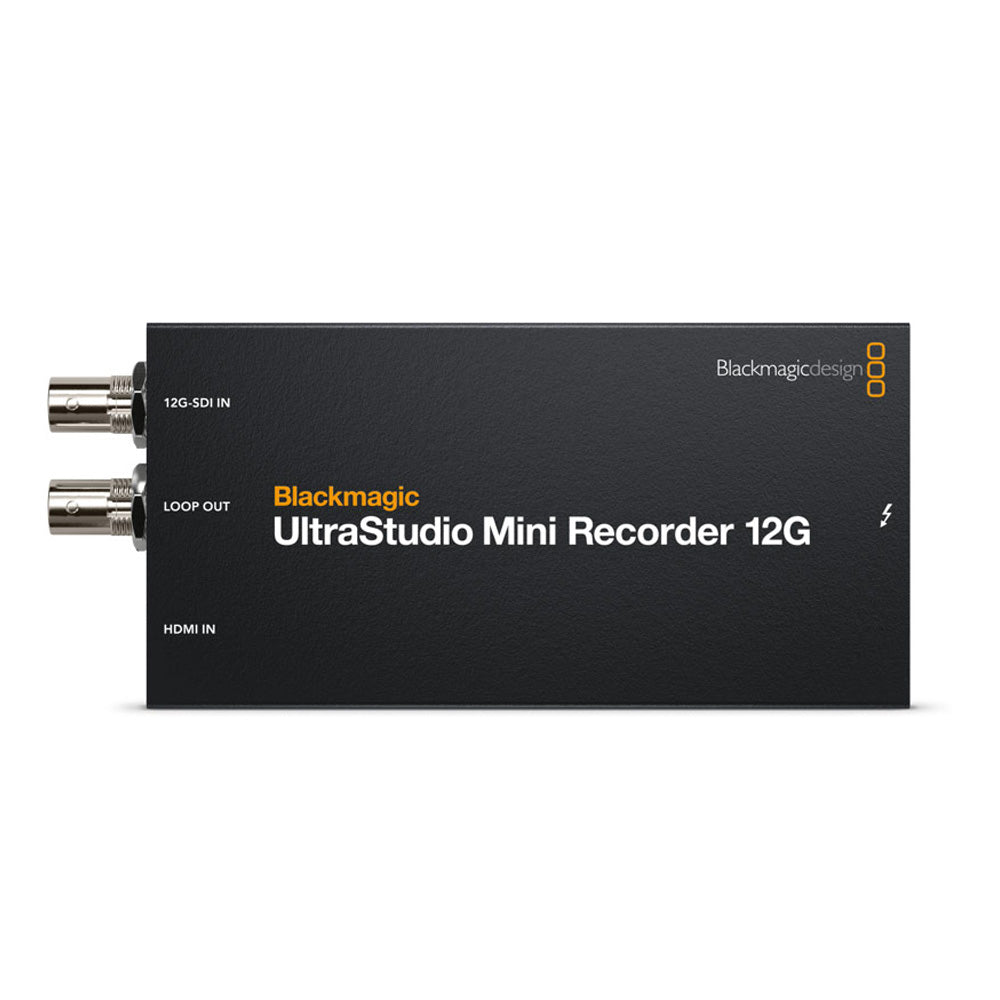

The Blackmagic Design UltraStudio Mini Recorder 12G offers professional 12G-SDI and HDMI video capture for Thunderbolt-equipped laptops and desktops. This compact device supports broadcast-quality 10-bit video and handles multi-rate HDMI and 12G-SDI inputs up to 2160p60 Ultra HD. Compatible with popular software like DaVinci Resolve and live streaming tools, it suits both professional and everyday creators working with HD and Ultra HD formats.

Connections
SDI Video Inputs	1
SDI Loop Outputs	1
SDI Rates	270Mb, 1.5G, 3G, 6G, 12G.
SDI Audio Inputs	16 channels embedded audio on SDI input.
HDMI 2.0 Video Inputs	1
HDMI Audio Inputs	8 channels embedded audio on HDMI input.
Computer Interface	Thunderbolt 4 (Mac OS Apple Silicon Macs, Windows and Linux)

Video Codecs
Video Codecs	AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

SDI Video Standards
SDI Video Standards	525i59.94 NTSC, 625i50 PAL
HD Video Standards	720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K Video Standards	2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD Video Standards	2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards	4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI
SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE ST2108-1
SDI Metadata Support	RP 188/SMPTE 12M-2 and closed captioning.
SDI Audio Sampling	Television standard sample rate of 48 kHz and 24-bit.
SDI Video Sampling	4:2:2, 4:4:4
SDI Color Precision	8, 10, 12-bit RGB 4:4:4 up to 2160p30, and 8, 10-bit YUV 4:2:2 in all standards.
SDI Color Space	Rec. 601, Rec. 709 and Rec. 2020.
HDR Support	HDR static metadata packing, HLG and PQ transfer characteristics.
Multiple Rate Support	SDI video connection is switchable between SD, HD, 2K, Ultra HD and 4K.

HDMI Video Standards
SDI Video Standards	525i59.94 NTSC, 625i50 PAL
HD Video Standards	720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards	2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards	4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI
HDMI Audio Sampling	Television standard sample rate of 48 kHz and 24 bit.
HDMI Video Sampling	4:2:2 and 4:4:4
HDMI Color Precision	8, 10 and 12-bit RGB 444, 8-bit YUV 444* and 12-bit YUV 422* in all standards * converted to 10-bit YUV 422
HDMI Configuration	HDMI 2.0 supports Deep Color.
HDMI Color Space	Rec. 601, Rec. 709 and Rec. 2020.
HDR Support	HDR static metadata packing, HLG and PQ transfer characteristics.
Multiple Rate Support	HDMI video connection is switchable between SD, HD, Ultra HD and 4K.
Copy Protection	HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Hardware Frame Buffer
Hardware Frame Buffer	2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), Ay10 (10-bit YUVA), r210 (10-bit RGB), v210 (10-bit YUV), R12B, R12L (12-bit RGB).
