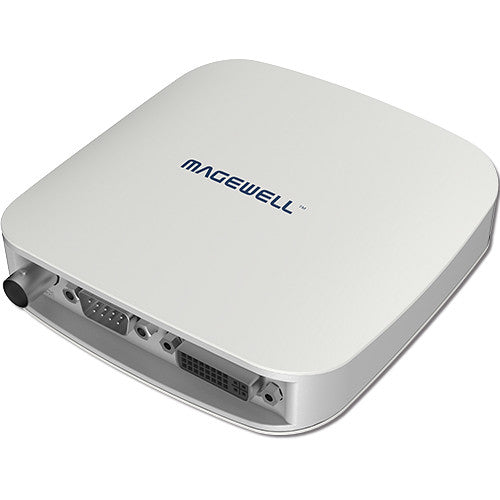

Magewell USB Capture AIO One-channel HD capture box

Name: Magewell USB Capture AIO One-channel HD capture box
Brand: Magewell
SKU: MAG-321100000
Price: 1096.00 AUD
Availability: InStock

Magewell | SKU: MAG-321100000 | Barcode: 4000001851812

$1,096.00 $1,186.49

Tax included Shipping calculated at checkout.

Videocraft Melbourne

Out of Stock. Backorder available

148 Highbury Road, Burwood VIC 3125
03 9273 7500

Videocraft Sydney

Out of Stock. Backorder available

20/39 Herbert Street, St Leonards NSW 2065
02 9462 8600

Shipping Options

Shipping Methods & Estimated Delivery Times

Australia Post Express Shipping – 1–2 business days within the same state, 1–3 business days interstate.
Australia Post Regular Shipping – 2–4 business days within the same state, 3–6 business days interstate.
StarTrack Express – 2–7 business days, depending on location.
StarTrack Premium – Next business day between capital cities and major metro areas.
Local On-Demand Delivery (Small Orders Only) – Same-day delivery within Melbourne & Sydney metro areas using Uber and Yello.

Shipping Cut-Off Time: Orders placed before 2 PM will typically be processed and dispatched the same day.

Please note: **We ship orders as a single shipment. If your order contains items with different availability, your order will be held until all items are ready to be shipped together.** Keep this in mind when placing your order. If this is an issue, please contact us at websales@videocraft.com.au to arrange for alternative shipping options.

The Magewell USB Capture AIO One-channel HD capture box is a 12-bit audio & video capture/playback device that supports USB 3.0, and allows you to capture 12-bit HDMI or analog audio. In addition, it supports RGB & YCbCr (YUV) color formats, supports customized EDID, and has integrated cable equalizer supporting cable lengths up to 754' for HD-SDI signals. The USB 3.0 host interface is directly compatible with various editing applications such as VLC,VirtualDub, OBS, XSplit, vMix, VidBlaster, Wirecast, Microsoft Media Encoder, and Adobe Flash Media Encoder. It's compatible with Windows and Linux systems.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Supported OS	Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64) Linux (Ubuntu 12.04-16.10, CentOS 7) Mac OS X 10.9-10.11 macOS 10.12
Supported APIs	Windows: DirectShow, Wave API/DirectSound/WASAPI Linux: V4L2, ALSA Mac OS X/macOS: QuickTime, AV Foundation
Supported Software	VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow, V4L2, QuickTime, AV Foundation based encoding or streaming software
Input Interface	DVI-I: DVI 1.0, HDMI 1.4a (via breakout cable), VGA (via DVI-to-VGA convertor), Component (via breakout cable) DB9: YC (S-Video), Composite video, Analog audio (L+R), Component video BNC: SD/HD/3G SDI
Host Interface	USB 3.0: Compatible with USB 2.0, compatible with USB 3.1 Gen 1
Video Capture Formats	Support for capture resolutions up to 2048 x 2160 Support for capture frame rates up to 120 fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency) Typical capture frame rates on the Intel USB 3.0 controller are as follows: 1920 x 1080 YUY2 (up to 75 fps), 1920 x 1080 RGB24 (up to 60 fps) Support for 4:2:2 8-bit Capture Format: YUY2, UYVY Support for 4:4:4 8-bit Capture Format: RGB24, RGB32 The default capture format is YUY2. More capture format can be set using USB Capture Utility
LED Indicator	Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Firmware Upgrade	Multiple devices in one system can be upgraded simultaneously
Power Consumption	5 V Maximum Current: 1 A Maximum Power Consumption‚àö√ò¬¨¬∫‚âà¬∞ 5 W
Operating Temperature	32 to 113°F (0 to 45°C)
Storage Temperature	-4 to 158°F (-20 to 70°C)
Relative Humidity	5 to 90% non-condensing
Dimensions	3.8 x 3.8 x 0.9" (98 x 98 x 25 mm)
