The Roland V-1SDI 4-Channel HD Video Switcher supports HD-only video signals over three of its inputs, and can support SD, HD, and computer video formats up to 1920 x 1200 (WUXGA) at 60 Hz on its fourth. It supports progressive and interlaced material, internally converting the interlaced footage to progressive for processing. Featuring a preview, program, and multiview output, you can easily monitor all your inputs at once on the multiview while isolating your preview and program screens.
Video Input

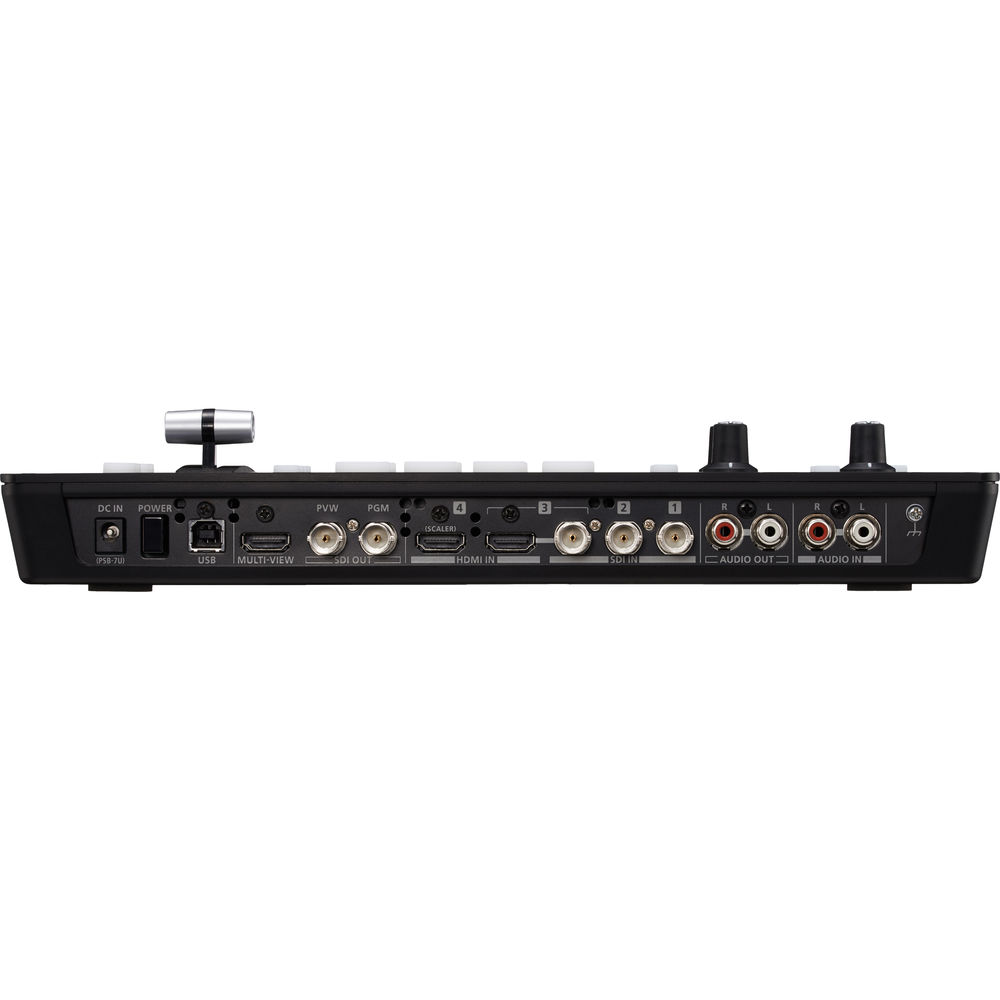

The switcher handles four video inputs, up to three SDI and up to two HDMI. Inputs 1 to 3 are SDI, with input 3 shared between SDI and HDMI with support for HD video formats. Input 4 is HDMI-only and, in addition to supporting HD video, also supports SD and computer formats.
Audio Input

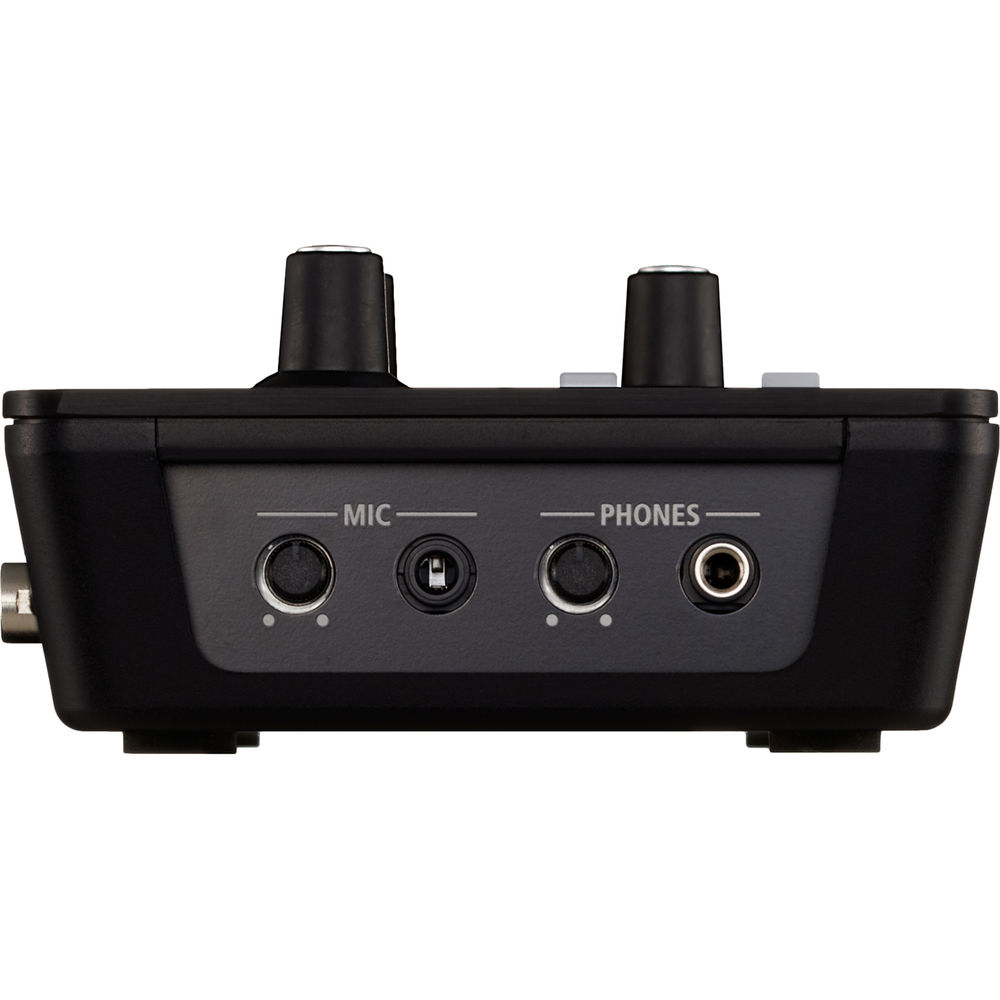

The switcher supports analog audio on as well as mic input with or without plug-in power.
Video Effects

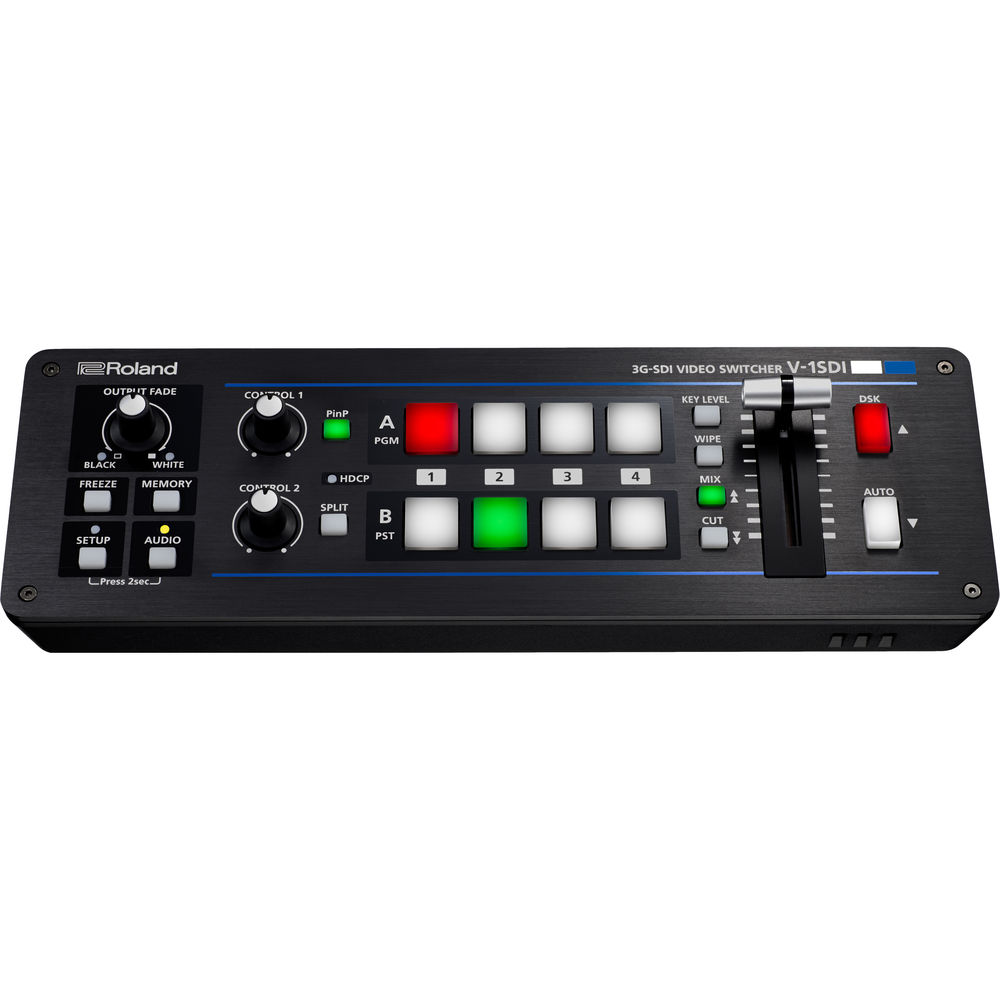

Transition: Cut, Mix (Dissolve/Fam/Nam/Mosaic), Wipe (30 types)
Composition: PiP, Split, Quad, DSK (Luminance key, Chroma key)
Audio Effects
EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
Multiviewer
This output can display all active inputs on the same screen via the HDMI output.
