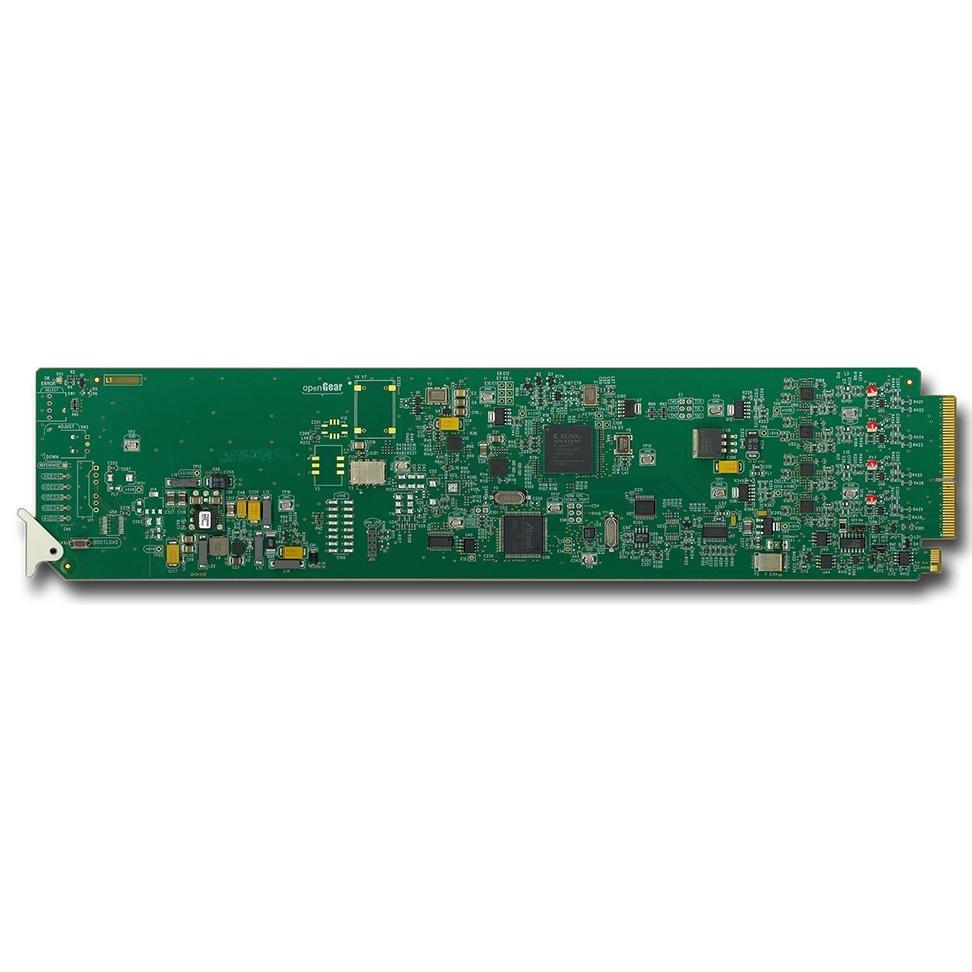

Ross Video SPG-8260-W-R2 Sync Pulse Generator incl R2-8260 Rear Module

The Ross Video SPG-8260-W-R2 Sync Pulse Generator incl R2-8260 Rear Module provides 4 pairs of outputs with each pair independently programmed to be either tri-level sync or a composite signal. Each pair of outputs can be independently delayed relative to the incoming reference. The delay is in increments of the output’s interface sampling frequency (74.25MHz, 74.25/1.001MHz or 27MHz) up to 1 frame of video. Tri-level sync output format is selectable from the following formats: 1080i 60, 1080i 50, 1080i 59.94, 1080p 23.98/24/25, 1080sF 23.98/24/25, 720p 50, and 720p 59.94. The SPG-8260 can lock to one of the two frame references, the card local reference input, or free-run using the SPG-8260 internal oscillator. If the selected reference is lost, the SPG-8260 switches to its internal oscillator without disturbing the outputs; when the selected reference returns, the SPG-8260 locks back to the input reference.
