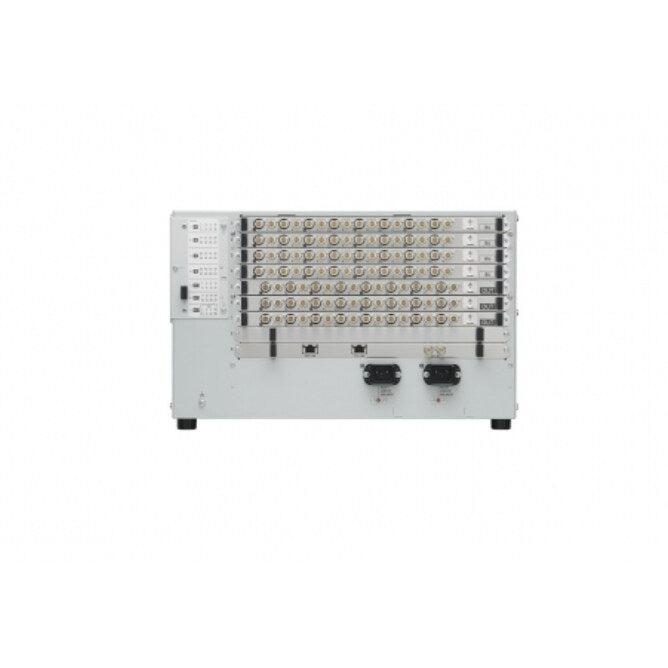

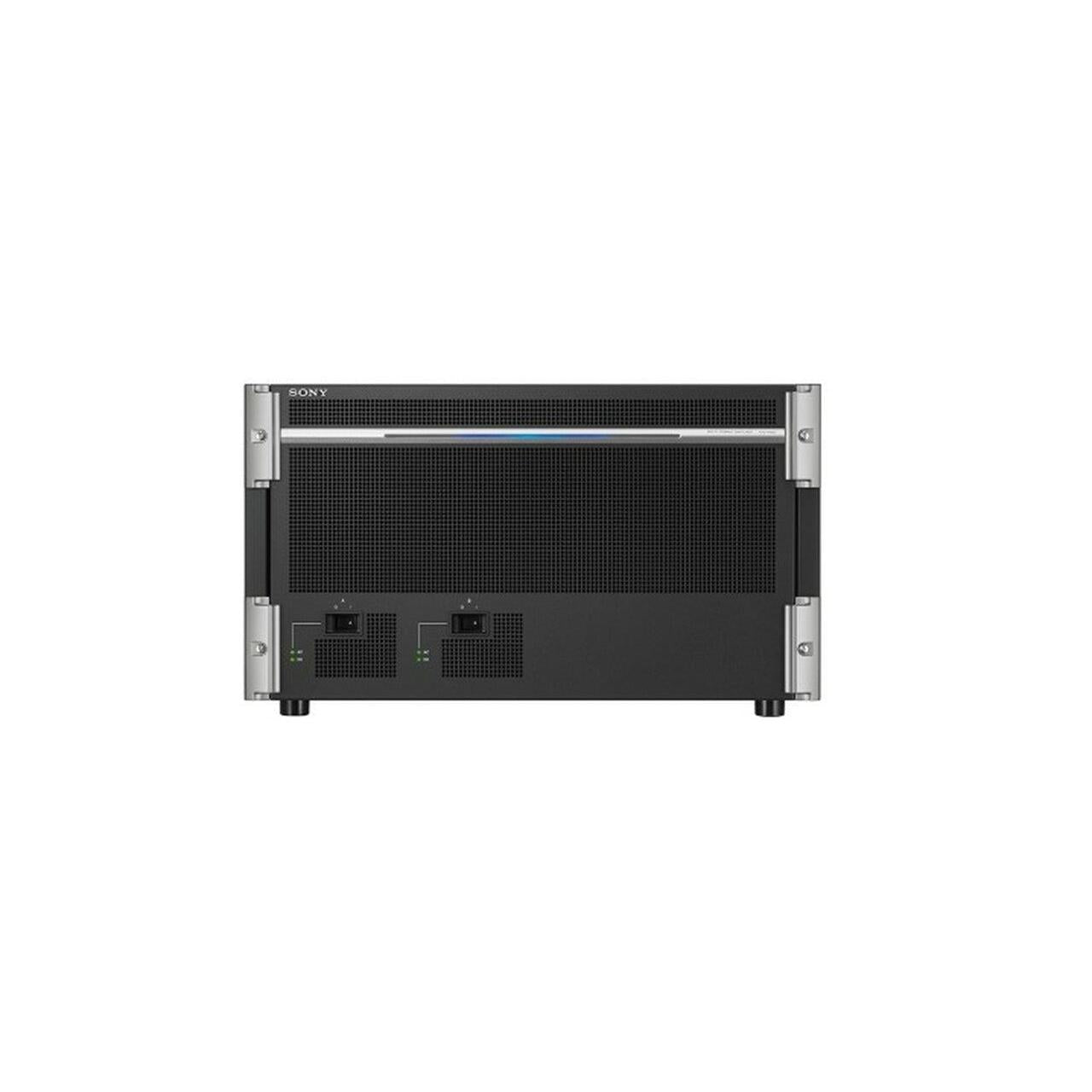

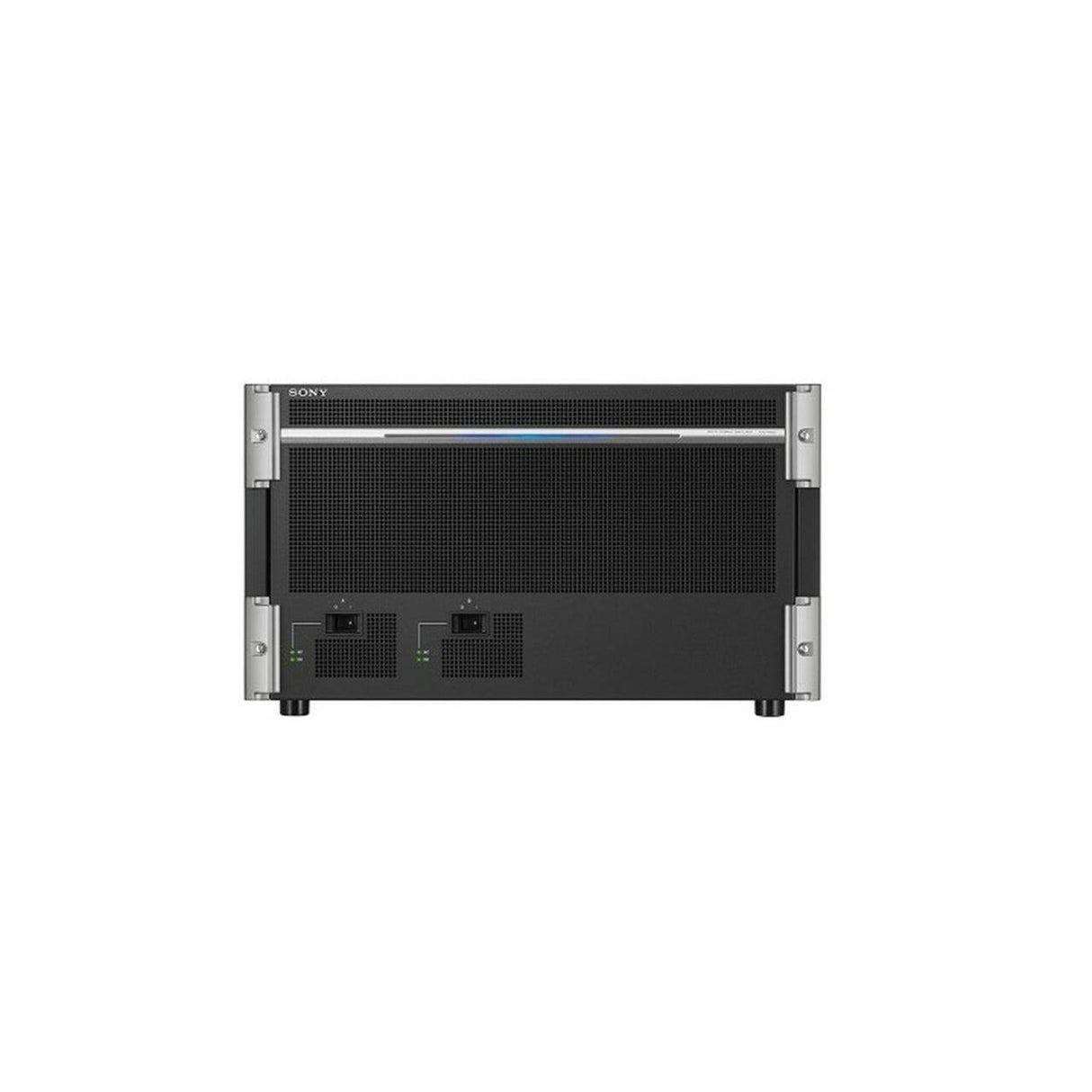

Sony XVS-6000 4K/3G/HD video switcher for IP and SDI

Sony  |  SKU: SON-XVS6000  |  Barcode: 4000001470938

The Sony XVS-6000 multi-format video switcher delivers massive benefits in terms of flexibility and operability for mid-range small production, giving you the ability to realise a powerful mixed environment with SDI and IP. Utilising the flexible ICP-X7000 X-Panel assignable modular design, you can configure the control panel to suit your specific operations. The XVS-6000 features 4 M/E, 48 inputs, 24 assignable outputs and format convertor outputs, plus up to 16 keyers in HD. According to your production environment and workflow requirements, the XVS-6000 is upgradable to 4K production switcher with powerful 4K features, as well as IP and SDI mixed production capabilities.



Ready for IP Live

A core component of Sony’s IP Live production system, the XVS-6000 supports the SMPTE ST 2110 suite of open standards for professional media over managed IP networks, enabling a mixed IP and SDI production environment. 100G IP boards support 4K and HD in a single stream, with on-board format conversion* offered.
* Format converter on 100G IP board is available at the Input side only.



12G-SDI based live switcher

The XVS-6000 supports 12G-SDI interfaces functioning on-board format conversion for incoming video signal to offer greater options for applications such as in-house studios, OB vehicles and flypacks.



Powerful 4K production capabilities

4K production capabilities include 2 M/E, 16 inputs, 6 assignable outputs, plus up to 3 full keyers and 3 sub keyers, enabling simultaneous 4K and HD operation. Key freeze is a new feature in 4K to store a still image in a 4K full keyer.



4K 3D Digital Multi Effects (DME)

The newly developed 4K DME board offers up to 1 channels of floating 4K 3D DME capability.



Evolutionary switcher controller

The XVS-6000 utilises the ICP-X7000 X-Panel for very flexible panel configuration with a modular style design, OLED display, RGB XPT buttons and LCD button pad. The button layout is also re-designed. The X-Panel has a flexible mounting style for flat or curved mounting, or even for splitting into two positions.



Switcher Processor Options
Multi-format Switcher Processor

• XKS-S8110 - SDI Input Connector Board
• XKS-S8111 - SDI Input and FC Connector Board
• XKS-S8112 - 12G-SDI Input Board
• XKS-Q8111 - QSFP IP Input Connector Board
• XKS-C8111 - 100G IP Input Board
• XKS-S8165 - SDI Output Connector Board
• XKS-S8167 - 12G-SDI Output Board
• XKS-Q8166 - QSFP IP Output Connector Board
• XKS-C8166 - 100G IP Output Board
• XKS-7210 - Mix Effect Board
• XKS-8440 - Frame Memory Board
• XKS-8460 - Format Converter Board
• XKS-8460 - Format Converter Board
• XKS-8470 - HD DME Board
• XKS-8475 - DME Board
• XZS-6200 - Multi Program 2 Software
• XZS-6510 - Switcher Upgrade Software (4K Upgrade for 1st ME Board)
• XZS-6520 - Switcher Upgrade Software (4K Upgrade for 2nd ME Board)
• XZS-6600 - HDR Conversion Software (for 12G-SDI Input Board)
