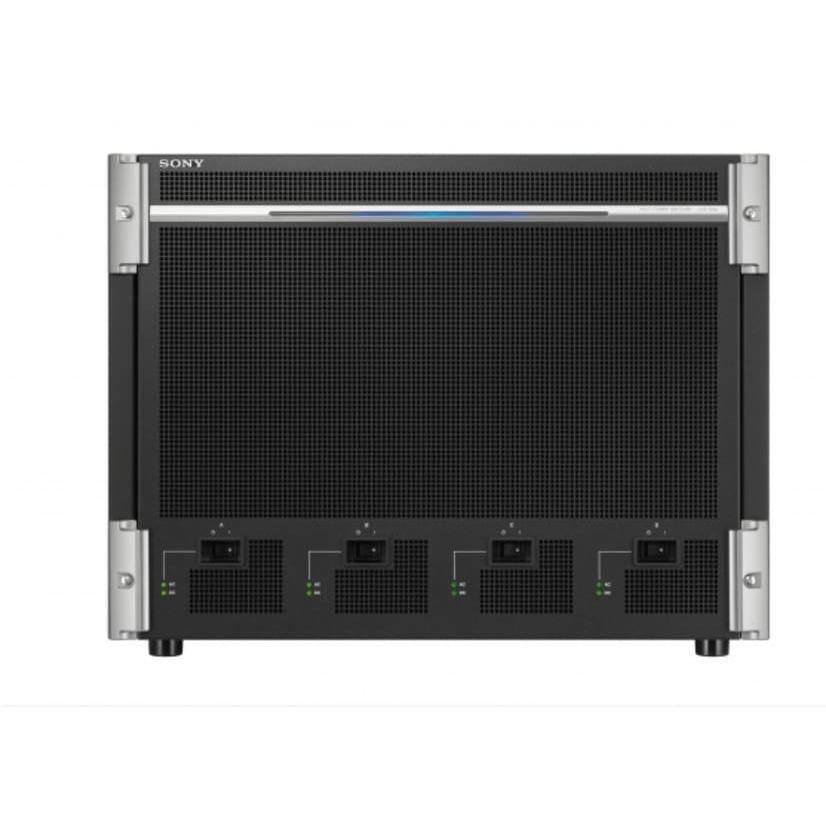

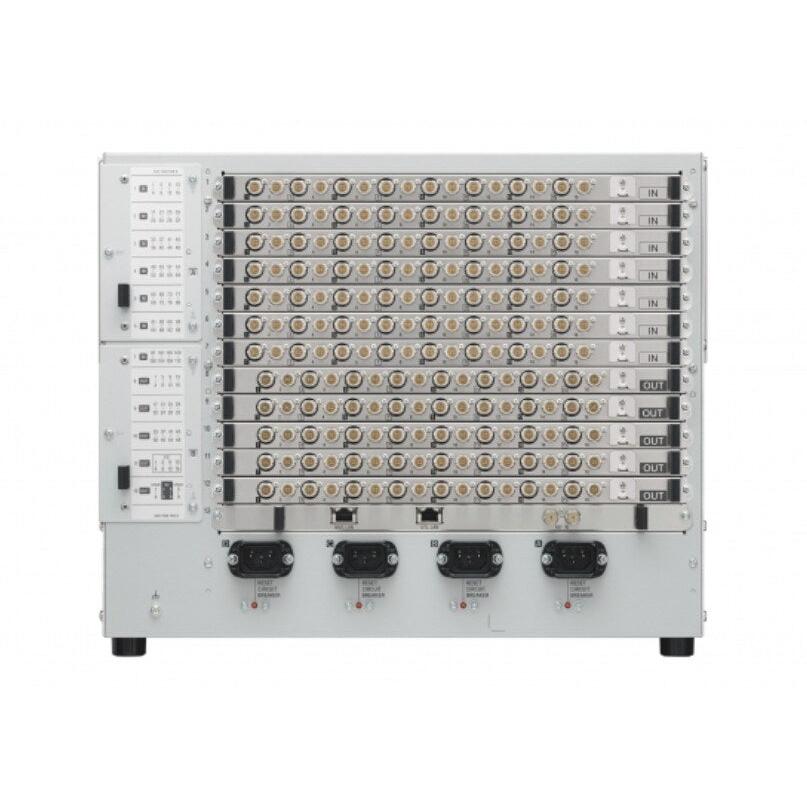

Sony XVS-7000 Mid-range 4K/3G/HD video switcher for IP and SDI
Regular price
$0.00
Unit price
/
Unavailable
The Sony XVS-7000 multi-format video switcher delivers massive benefits in terms of flexibility and operability for mid-range productions, giving you the ability to realise a powerful mixed environment with SDI and IP. Utilising the flexible ICP-X7000 X-Panel assignable modular design, you can configure the control panel to suit your specific operations.
The XVS-7000 features 6 M/E, 112 inputs, 48 assignable outputs and format convertor outputs, plus up to 24 keyers in HD. According to your production environment and workflow requirements, the XVS-7000 is upgradable to 4K production switcher with powerful 4K features, as well as IP and SDI mixed production capabilities.
Ready for IP Live
A core component of Sony’s IP Live production system, the XVS-7000 supports the SMPTE ST 2110 suite of open standards for professional media over managed IP networks, enabling a mixed IP and SDI production environment. 100G IP boards support 4K and HD in a single stream, with on-board format conversion* offered.
* Format converter on 100G IP board is available at the Input side only.
* Format converter on 100G IP board is available at the Input side only.
12G-SDI based live switcher
The XVS-7000 supports 12G-SDI interfaces functioning on-board format conversion for incoming video signal to offer greater options for applications such as in-house studios, OB vehicles and flypacks.
Powerful 4K production capabilities
4K production capabilities include 3 M/E, 28 inputs, 12 assignable outputs, plus up to 6 full keyers and 6 sub keyers, enabling simultaneous 4K and HD operation. Key freeze is a new feature in 4K to store a still image in a 4K full keyer. With the optional mix effect board XKS-7215 the number of full keyers can be increased up to 12.
4K 3D Digital Multi Effects (DME)
The newly developed 4K DME board offers up to 2 channels of floating 4K 3D DME capability.
Evolutionary switcher controller
The XVS-7000 utilises the ICP-X7000 X-Panel for very flexible panel configuration with a modular style design, OLED display, RGB XPT buttons and LCD button pad. The button layout is also re-designed. The X-Panel has a flexible mounting style for flat or curved mounting, or even for splitting into two positions.
