Blackmagic Design Videohub Smart Control Pro

CODE: VHUB/WSC/PRO

Quick Overview

Features:

  • 40 button control panel for VideoHubs
  • Supports ethernet
  • Rackmountable
  • Control any Videohub model
  • 24/7 broadcast reliability

Version: Smart Control | Smart Control PRO | Master Control PRO

Buy This Product

RRP $1,095.00 inc GST

Special Price $999.00 inc GST

Out of Stock - Available to Order In

learn more »

Details

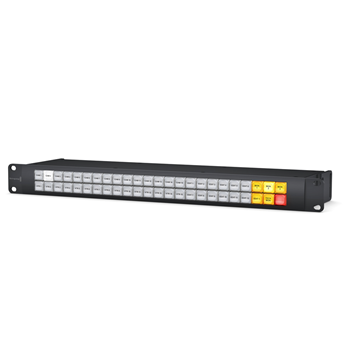

The Blackmagic Design Videohub Smart Control Pro features a 40 RGB illuminated crystal look buttons that can be set to any router output. Videohub Smart Control Pro can be installed under each deck and monitor in a facility, so the router output to that monitor can be set with a single button press. This is a much faster way of working, because all routing only requires a single button press. The The Blackmagic Videohub Smart Control Pro allows incredibly fast routing with a single button press. Program each button for a single router cross point and when pressed the route is made. You can program to have multiple destinations and even a take button! Powers via DC or the Ethernet connection.

For dedicated remote router panels, you can choose between Videohub Smart Control Pro and Videohub Master Control Pro. Both optional panels connect to your network via Ethernet and can control any Videohub model. Videohub Smart Control Pro is ideal for direct cut bus style routing to monitors or decks, while Videohub Master Control Pro gives you full spin knob control and direct label entry with an LCD display to see your router crosspoint labels. You get perfect integration and 24/7 broadcast reliability with Blackmagic Videohub remote panels.


Videohub Smart Control Pro Features

  • Ethernet connection with Power over Ethernet and non powered loop through.
  • 110-250V volt AC powered for use with non powered ethernet.
  • Single or multiple destinations supported.
  • Supports optional "take" button set via software configuration.
  • Includes Mac and Windows software for control panel programming.
  • Button caps can be removed for easy labeling.
  • Buttons are illuminated by RGB for highest illumination quality.
  • Compact 1 rack unit size, approximately three inches deep.
  • Works with all Videohub models.

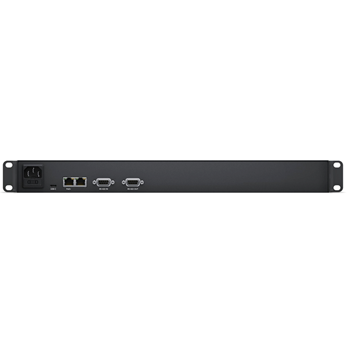

Connections
Ethernet RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
RS-422 In and Out (for future implementation)
Computer Interface USB-C for configuration and software updates.
Power 100 - 240 AC
Macro Capability Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands.
Hardware Control 48 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network.
Software Internal Software upgrade via included firmware updater application via USB.
Operating Systems Mac 10.13 High Sierra,
Mac 10.14 Mojave or later.
Windows 10
Physical Installation 1 rack unit size. Less than 3 inches deep.
Button Configuration Included free for Windows™ and Mac™
via USB 2.0 high speed (480Mb/s) interface.
Power Requirements
Power Fail Protection Button configurations and router communication preserved and restored
instantly at power on. Button configuration can also be saved for later recall.
Power Supply Internal 100 - 240 V AC
Environmental Specifications
Storage temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing
What's Included Videohub Smart Control Pro
Warranty 12 Months Limited Warranty.
