Details

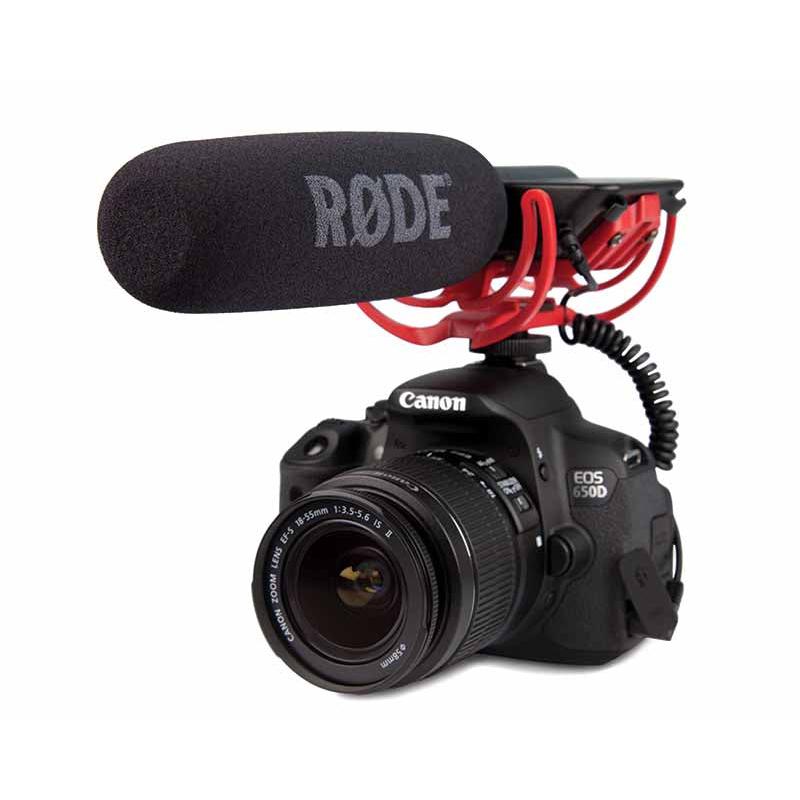

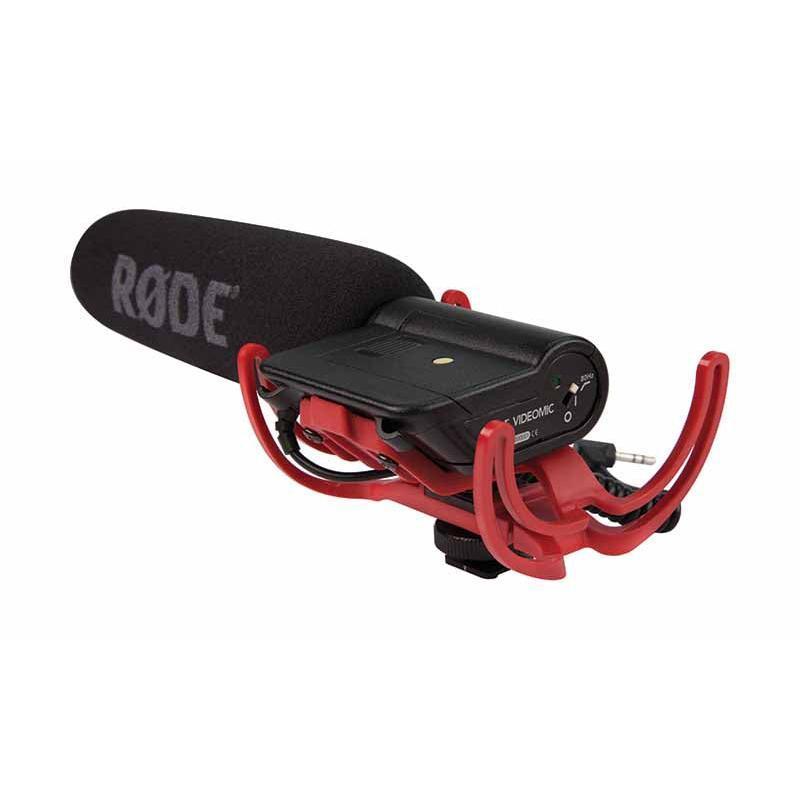

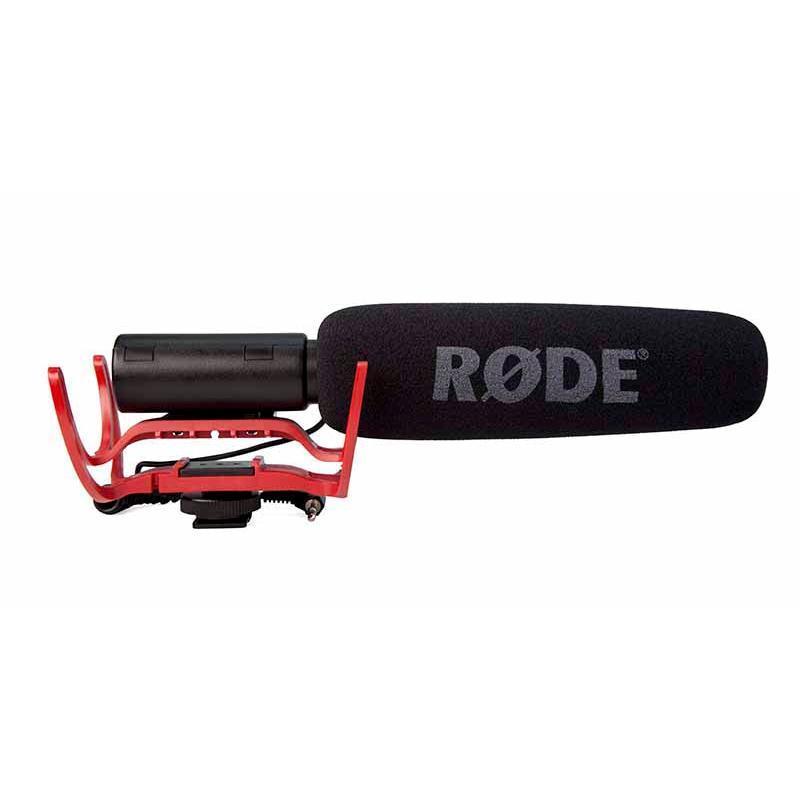

The Rode VideoMic with Rycote Lyre Suspension System is a shotgun microphone that can easily be mounted on a DSLR camera. It features a Rycote suspension system that attaches to the camera's shoe. The VideoMic is lightweight, and when mounting on a camera it does not appear in the frame. The VideoMic can also mount to Rode's boompoles for elevated audio capture. Its super-cardioid polar pattern attenuates sounds from the sides. The result is a signal that sounds closer to the camera, even when shooting in noisy environments or at moderate distances.
| Acoustic Principle |
Line gradient |
| Frequency Range |
40Hz ~ 20,000Hz
(selectable HPF@80Hz)
|
| Equivalent Noise |
20dBA SPL
(A - weighted per IEC651)
|
| Dynamic Range |
114dB (per IEC651) |
| Maximum SPL |
134dB (@ 1kHz, 1% THD into 1kΩ
load)
|
| Power |
9V alkaline battery
(Current 7.8mA)
|
| Directional Pattern |
Super-Cardioid |
| Sensitivity |
-38dB (12.6mV@94dB SPL)
±2dB re 1V/Pa @ 1kHz
|
| S/N |
74dB SPL
(A - weighted per IEC651)
|
| Dimensions |
255mmL x 90mmH x 100mmD
|
| Weight |
171gm |
| Output Connection |
3.5mm TRS mini-jack |
RODE VideoMic Frequency Response
